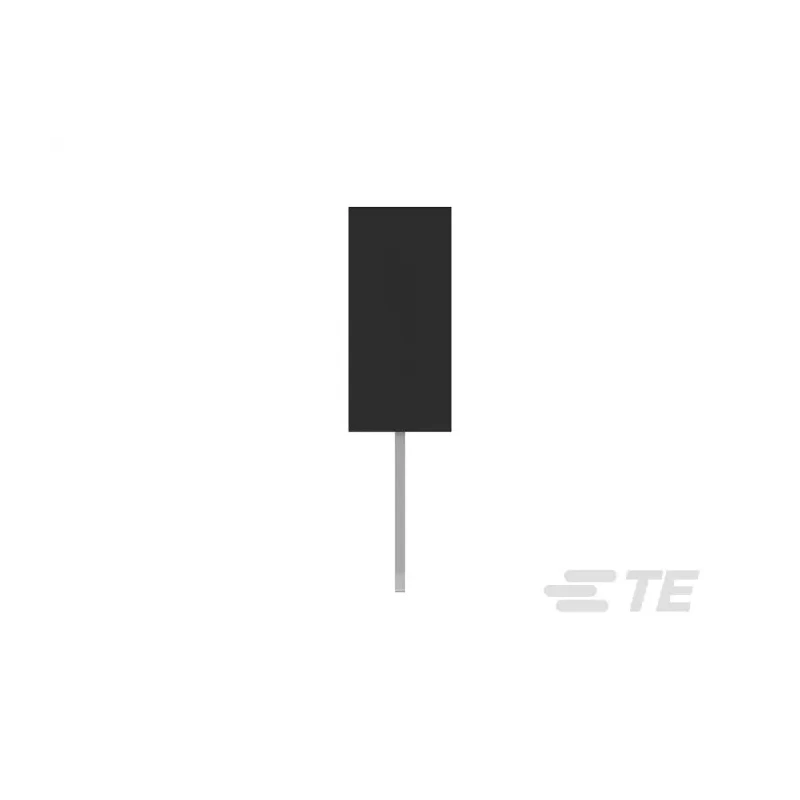

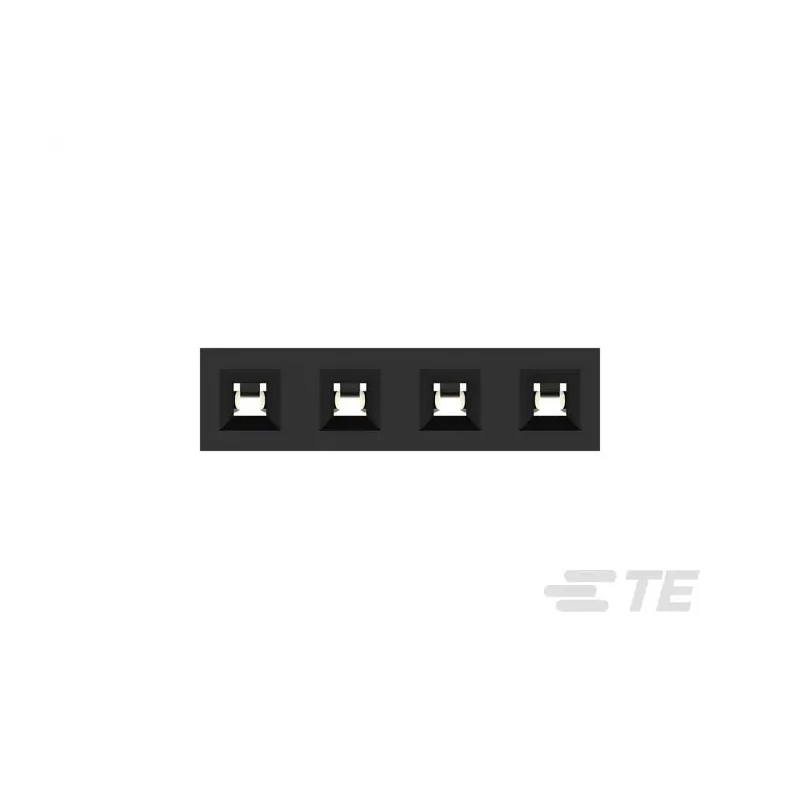

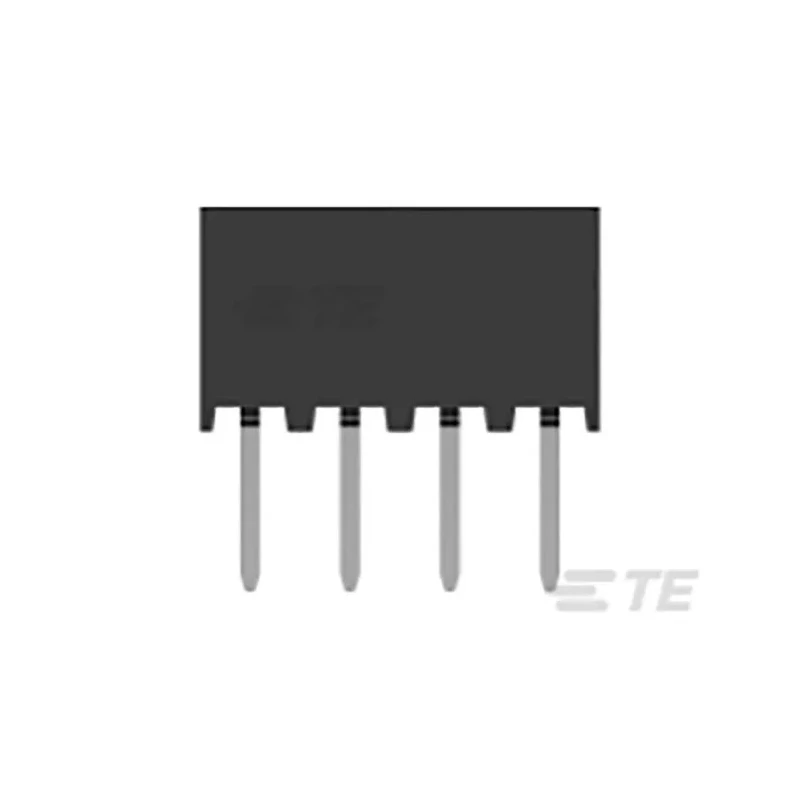

TE Connectivity AMPMODU Series 4-Contact 1 Row 2 mm Pitch Straight Through Hole PCB Socket 2314876-4

TE Connectivity 2314876-4 is a high-quality AMPMODU Series PCB socket designed for through-hole mounting in board-to-board electronic connector systems. The component features 4 female contacts arranged in a single row with a precise 2 mm pitch, ensuring reliable electrical connectivity in compact PCB layouts.

The housing is manufactured from liquid crystal polymer, providing excellent durability and high-temperature resistance. The bronze contact material, combined with nickel-plated and tin finishes, enhances conductivity and protects against corrosion, suitable for industrial and laboratory electronics.

Operating voltage is rated at 650 volts, with a current rating of 12 amperes, making it suitable for power and signal applications in servo drives, industrial controls, instrumentation, test equipment, PLCs, and building automation systems. The socket is designed to operate reliably within a temperature range of -65°C to 125°C to withstand harsh operating environments.

The socket assembly supports solder termination through its straight through-hole mount design, accommodating PCB thicknesses from 1.6 mm up to 2.4 mm with varying solder tail lengths. It utilizes a dual beam receptacle contact system that ensures robust mechanical and electrical performance.

This model reduces PCB footprint by approximately 38% compared to traditional 2.54 mm centerline sockets, allowing for extended circuit functionality and high-density installations. Its halogen-free and low halogen materials conform to environmental standards, suitable for modern electronics manufacturing processes.

Applications for this PCB socket include industrial equipment, servo motor controls, automatic machinery, instrumentation, and other electronics requiring reliable board-to-board interconnections.

Features a liquid crystal polymer housing for durability and thermal stability. Supports a current rating of 12A and voltage up to 650V for demanding electrical applications. Designed with bronze female contacts, nickel-plated and tin finishing for optimal conductivity and corrosion resistance.

Operating temperature range from -65°C to 125°C ensures performance in extreme environments. Provides multiple solder tail lengths to accommodate PCB thicknesses between 1.6 mm and 2.4 mm. Suitable for board-to-board connector systems with two-point electrical stability for reliable interconnection.

Environmentally compliant with halogen-free and low halogen materials to meet modern regulations. Compact 2.00 mm centerline pitch occupies less PCB space compared to standard 2.54 mm designs. Explore the full range of TE Connectivity products and PCB sockets at EnvMart for your industrial, laboratory, and electronics manufacturing needs.
