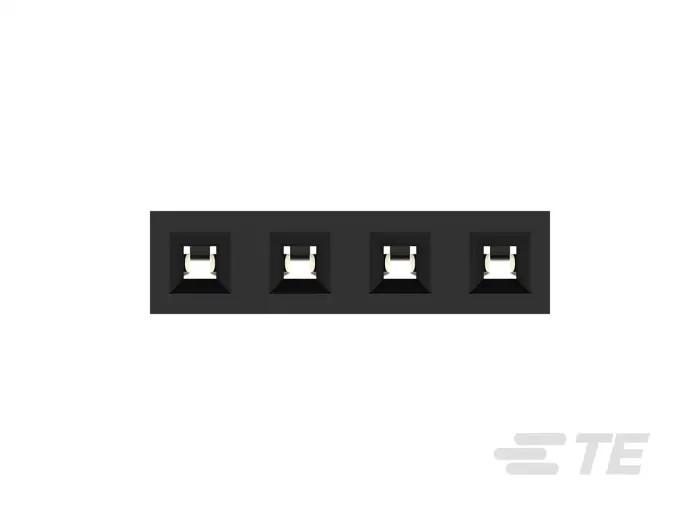

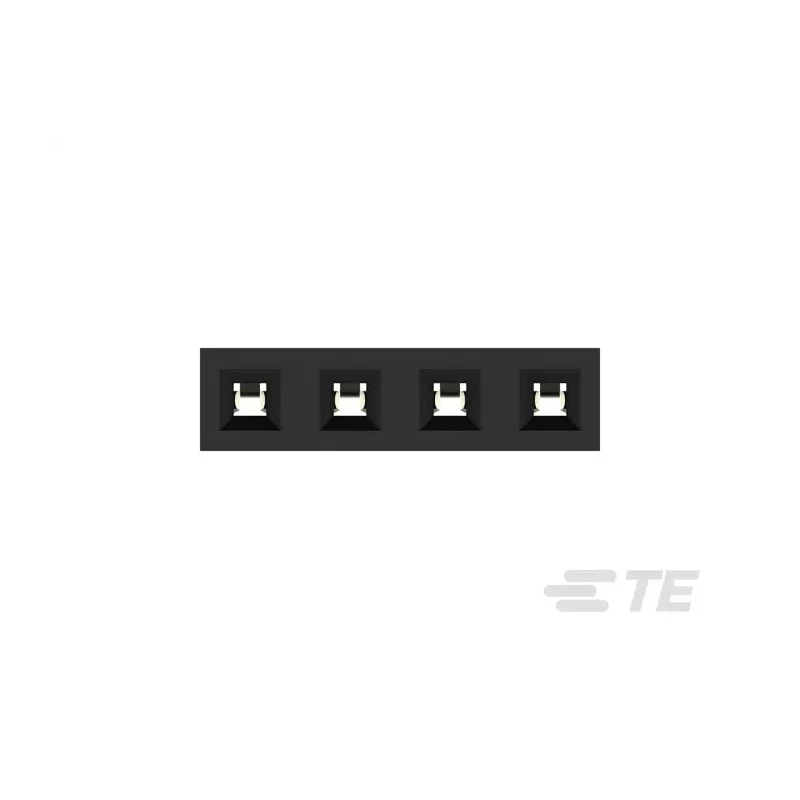

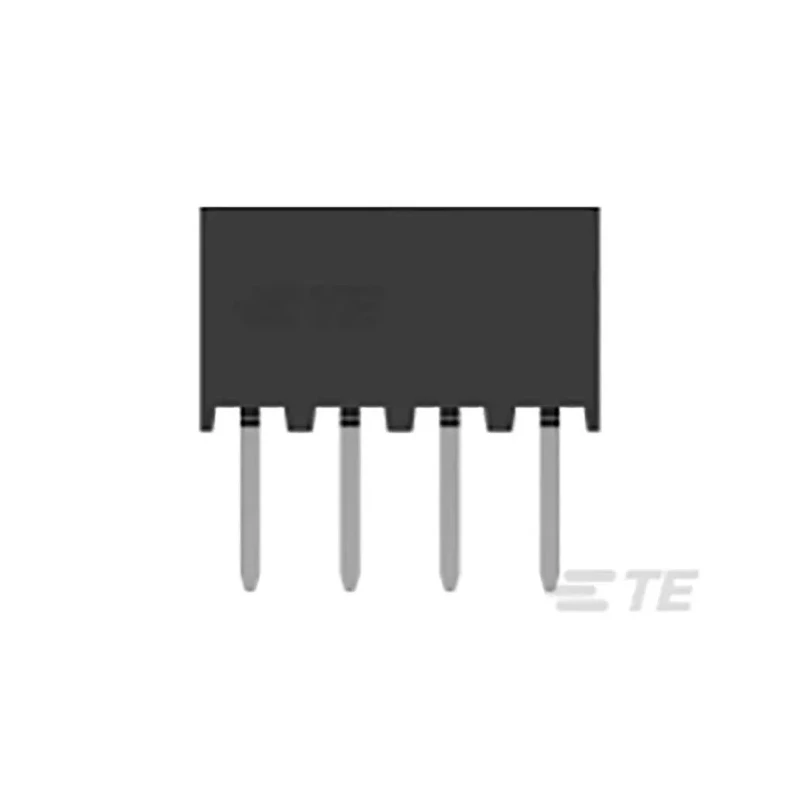

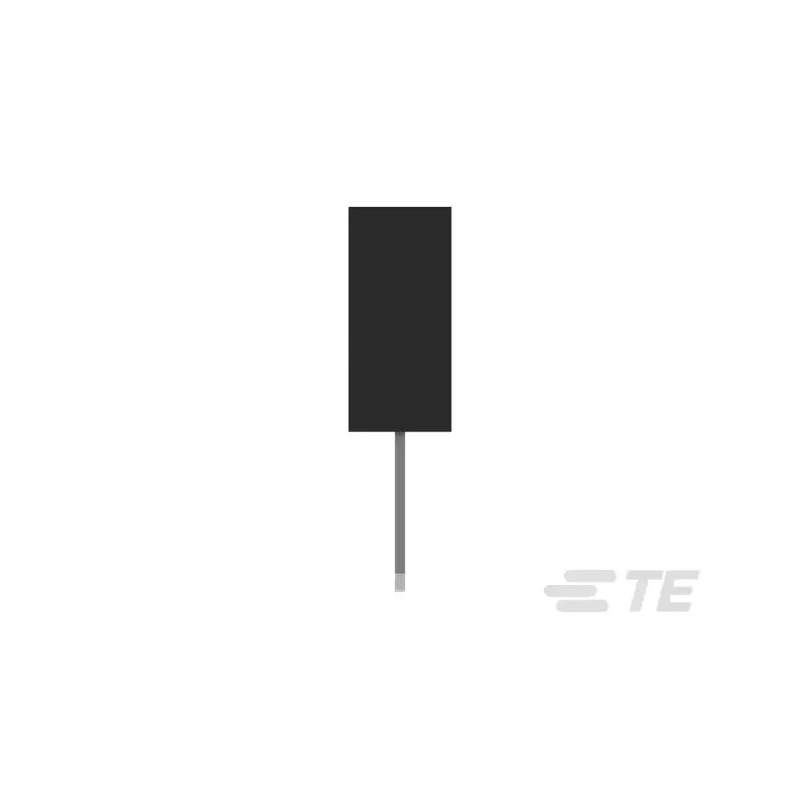

TE Connectivity AMPMODU Series Straight Through Hole PCB Socket 4-Contact 1 Row 2 mm Pitch Solder 2314878-4

TE Connectivity model 2314878-4 is a premium AMPMODU Series Straight Through Hole PCB Socket engineered for reliable board-to-board electrical connections. It offers 4 contacts arranged in a single row with a precise 2 mm centerline pitch, making it suitable for compact PCB designs.

The housing material is liquid crystal polymer, offering excellent durability and stability under harsh operating conditions. The contact system uses female bronze contacts that are nickel plated with tin for enhanced conductivity and corrosion resistance.

It is designed for through-hole mounting with straight orientation, providing an easy and stable solder termination method. The socket is rated to carry 12A current at up to 650V, supporting demanding industrial and automation applications.

The operating temperature range is broad, from -65°C minimum to 125°C maximum, enabling use in various environmental conditions. This connector series is halogen free and low halogen compliant, aligning with environmental regulations.

The product's design allows for 38% less PCB space usage compared to the standard 2.54 mm pitch sockets, facilitating more compact and functional PCB layouts. It supports multiple PCB thicknesses from 1.6 mm to 2.4 mm, accommodating different board designs.

Packaging is typically a tube containing multiple connectors, optimized for assembly processes including automated surface-mount and through-hole reflow manufacturing. Applications include PLCs, servo drives, industrial control systems, material handling equipment, instrumentation, test equipment, and building automation.

Constructed with liquid crystal polymer housing for durability. Rated for 12 amperes current and 650 volts voltage. Features a female bronze contact with nickel plated and tin contact plating. Mount type is through hole with straight orientation for board-to-board connections.

Operating temperature range from -65°C to 125°C. Compatible with top and dual-entry vertical and horizontal receptacle assemblies. Designed to occupy 38% less PCB space than 2.54 mm pitch alternatives. RoHS compliant and halogen free / low halogen for environmental safety.

Supplied typically in tube packaging with multiple solder tail lengths. Explore the extensive range of TE Connectivity PCB sockets and Connectors at EnvMart to meet your industrial and electronic assembly requirements.
