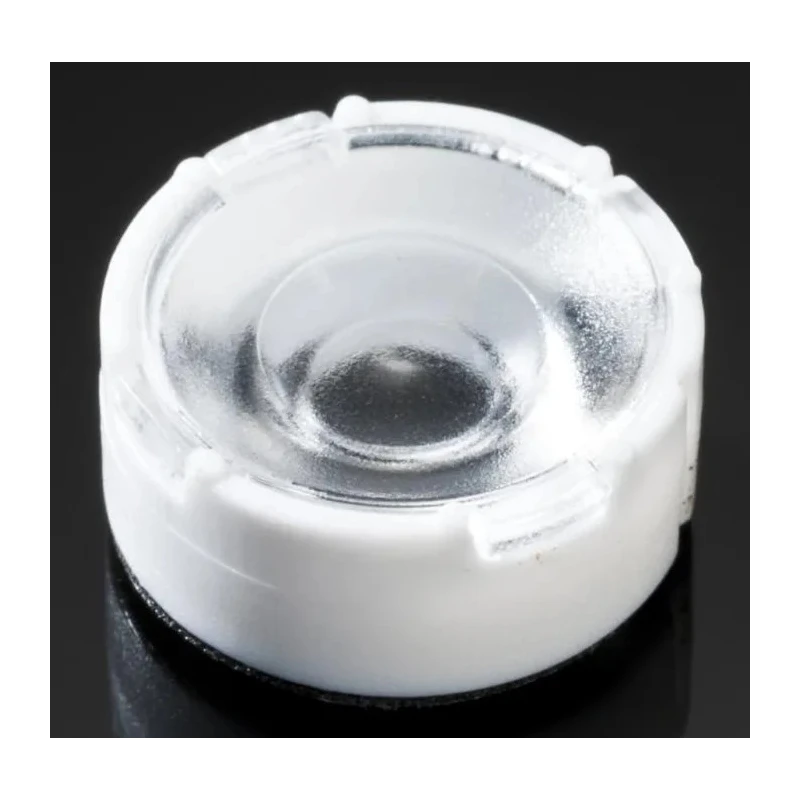

Ledil Tina3 Series 1-Way LED Lens 68 to 85 ° Round Beam CA12428_TINA3-WWW
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 16.1mm |
| Brand | Ledil |
| Height | 6.9mm |
| Model | CA12428_TINA3-WWW |
| Series | Tina3 |
| Viewing angle | 68 to 85 ° |
| Lens Material | Polymethyl Methacrylate |
| For Use With | Cree XP-E2, Nichia NVSxx19A, Cree XT-E, Samsung LH351B, Samsung LH351Z, Cree XP-G2, OSRAM OSLON Square EC, Lumileds LUXEON A, Lumileds LUXEON TX, Cree XP-G, Lumileds LUXEON T, Cree XP-L HI |
| Lens Shape | Round |
| Emission Pattern | Round |
| Lens Style | Round |
| Fixing Method | Pin |
| Number of LEDs Per Lens | 1 |
Key Features
- Designed for a single LED application with one LED per lens.
- Features a round emission pattern and round lens shape.
- Made from durable optical grade polymethyl methacrylate for high UV and temperature resistance.
- Diameter of lens is 16.1 mm with a height of 6.9 mm.
- Fixing is done via pin method for secure placement.
- Compatible with various LEDs including Cree XP-E2, Samsung LH351B, and Lumileds LUXEON series.
- Optimized to direct light achieving uniform beam output.
- Ideal for industrial, electronic component, and LED lighting applications.
Product Description
Ledil CA12428_TINA3-WWW is a single LED lens from the Tina3 Series designed to produce a uniform round beam with a viewing angle ranging from 68 to 85 degrees. This clear lens is manufactured using optical grade polymethyl methacrylate (PMMA), providing excellent UV and temperature resistance, ensuring durability for long-term use.
The lens diameter measures 16.1 mm with a height of 6.9 mm, forming a compact optical component suitable for various LED lighting designs. It is fixed securely by a pin fixing method, ensuring stable installation in lighting assemblies.
This lens is compatible with a wide range of LEDs including Cree XP-E2, Nichia NVSxx19A, Cree XT-E, Samsung LH351B, Samsung LH351Z, Cree XP-G2, OSRAM OSLON Square EC, Lumileds LUXEON A, Lumileds LUXEON TX, Cree XP-G, Lumileds LUXEON T, and Cree XP-L HI. The lens directs light from these LEDs efficiently to create the desired beam shape with a round emission pattern.
The Tina3 Series lenses are widely used in industrial LED lighting applications, electronic components design, and optoelectronic projects requiring precise beam shaping. Their robust material and design provide a reliable solution for controlling light distribution with high repeatability.
Designed for a single LED application with one LED per lens. Features a round emission pattern and round lens shape. Made from durable optical grade polymethyl methacrylate for high UV and temperature resistance. Diameter of lens is 16.1 mm with a height of 6.9 mm.
Fixing is done via pin method for secure placement. Compatible with various LEDs including Cree XP-E2, Samsung LH351B, and Lumileds LUXEON series. Optimized to direct light achieving uniform beam output. Ideal for industrial, electronic component, and LED lighting applications.
This product is part of Ledil's extensive range of LED lenses and reflectors, designed to meet rigorous industrial and commercial standards. For more related LED Lenses and lighting components, browse the LEDs and Lights category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The viewing angle of the Ledil Tina3 Series lens ranges from 68 to 85 degrees.
The lens has a diameter of 16.1 mm and a height of 6.9 mm.
The lens is made from optical grade polymethyl methacrylate (PMMA), which provides high UV and temperature resistance.
The lens is fixed securely using a pin fixing method, ensuring stable installation in lighting assemblies.
This lens is compatible with various LEDs including Cree XP-E2, Samsung LH351B, and Lumileds LUXEON series, among others.
The lens features a round emission pattern, designed to direct light efficiently.
It is designed for a single LED application, providing a uniform round beam for various lighting designs.
This lens is ideal for industrial LED lighting applications, electronic components design, and optoelectronic projects.
This lens is designed for use with one LED per lens.
The lens shape is round, optimized for directing light to achieve a uniform beam output.
The lens is manufactured in India.
This lens is part of the Tina3 Series by Ledil.
