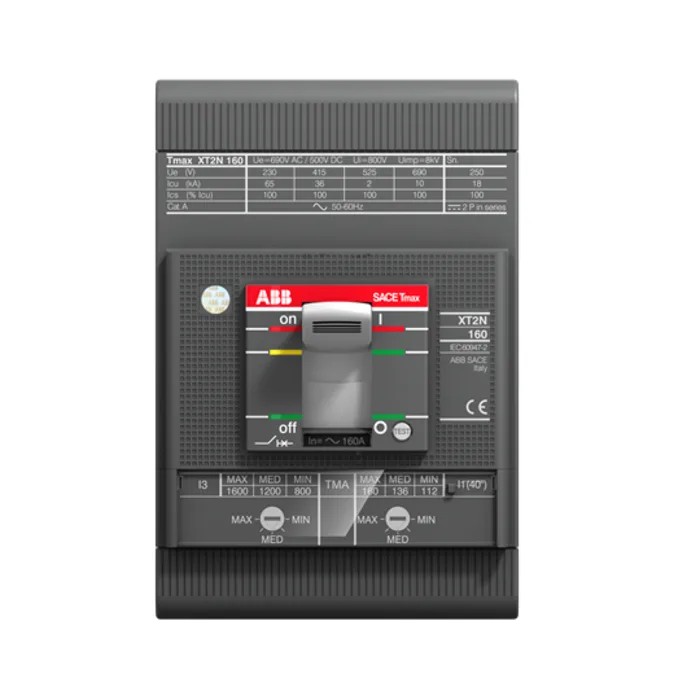

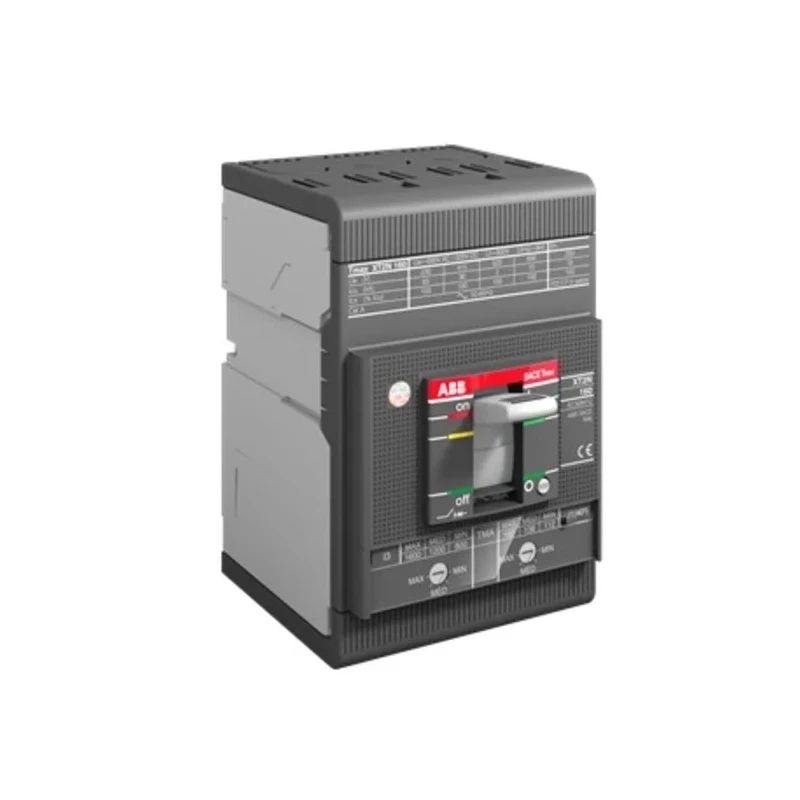

ABB Tmax XT Molded Case Circuit Breaker 3-Pole 5A 65kA Breaking Capacity Fixed Terminal 690V 1SDA067005R1 XT2N 160 TMD 5A FF
Specifications
| Country of Origin | Italy |
|---|---|
| Range | Tmax XT |
| Brand | ABB |
| Height | 130mm |
| Model | 1SDA067005R1 XT2N 160 TMD 5A FF |
| Depth | 82.5mm |
| Width | 90mm |
| Mount Type | Fixed |
| Current Rating | 5A |
| Series | Tmax XT |
| Terminal type | Fixed |
| Breaking Capacity | 65kA |
| Number of Poles | 3 |
| Standards/Approvals | RoHS, CE, IEC |
| Rated AC Voltage | 690V ac |
| Rated DC Voltage | 500V dc |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Lever |
Key Features
- Provides three-pole protection suitable for three-phase electrical installations.
- Rated for 690V AC and 500V DC operation ensuring versatility in various power applications.
- Combines thermal and magnetic tripping for overload and short-circuit protection.
- Fixed mounting with fixed terminals ensures secure and vibration-resistant installation.
- Reset lever actuator allows rapid manual reclosure after fault clearance.
- Complies with RoHS, CE, and IEC electrical safety and materials standards.
- Compact dimensions of 90mm width, 130mm height, and 82.5mm depth optimize panel space.
- Ideal for motor control panels, automation distribution boards, and battery-backed DC circuits.
Product Description
ABB 1SDA067005R1 XT2N 160 TMD 5A FF Molded Case Circuit Breaker is engineered for industrial and commercial electrical systems requiring reliable overcurrent protection. It is designed as a 3-pole breaker with a 5 ampere current rating and a high breaking capacity of 65 kiloamperes. Suitable for both AC and DC applications, it operates at rated voltages of 690V AC and 500V DC, making it adaptable for motor control panels, automation systems, and DC supply circuits.
The breaker employs a combined thermal magnetic trip mechanism, allowing it to respond effectively to both prolonged overload conditions and sudden short-circuit surges to protect wiring and equipment from damage. Fixed terminal connections and mounting provide a secure and vibration-resistant installation, enhancing safety and durability in demanding industrial environments. A lever reset actuator facilitates quick manual closure after a fault has been addressed, minimizing downtime.
Constructed in compliance with RoHS, CE, and IEC standards, this breaker ensures adherence to essential electrical safety and environmental regulations. Its compact dimensions (W90 x H130 x D82.5 mm) enable integration into various electrical panels with space constraints.
Three-pole protection for simultaneous isolation of all phases. Thermal magnetic trip for comprehensive fault response. Fixed mount and terminal type for secure installation. Rated for 690V AC and 500V DC operation. High 65kA breaking capacity for fault clearance.
Reset lever for rapid manual reclosure. Meets RoHS, CE, and IEC standards. Compact size suitable for motor control and distribution panels.
This ABB Molded Case Circuit Breaker is perfect for industrial motors, manufacturing plants, automation facilities, and electrical switchrooms seeking dependable, high-performance circuit protection. Browse our extensive range of electrical protection devices at EnvMart for complementary products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The breaking capacity of this molded case circuit breaker is 65 kiloamperes (kA).
This model is rated for 690V AC and 500V DC operation, making it suitable for various power applications.
This circuit breaker is a 3-pole device, providing simultaneous isolation of all phases.
It employs a thermal magnetic tripping mechanism for effective protection against overloads and short circuits.
The dimensions of this circuit breaker are 90mm in width, 130mm in height, and 82.5mm in depth.
This model supports fixed mounting with fixed terminals, ensuring a secure installation.
The current rating of this molded case circuit breaker is 5 amperes (A).
It complies with RoHS, CE, and IEC electrical safety and materials standards.
The reset actuator type for this model is a lever, allowing for rapid manual reclosure after a fault clearance.
This circuit breaker is manufactured in Italy.
This circuit breaker is suitable for motor control panels, automation distribution boards, and battery-backed DC circuits.
This model belongs to the Tmax XT series of molded case circuit breakers.
