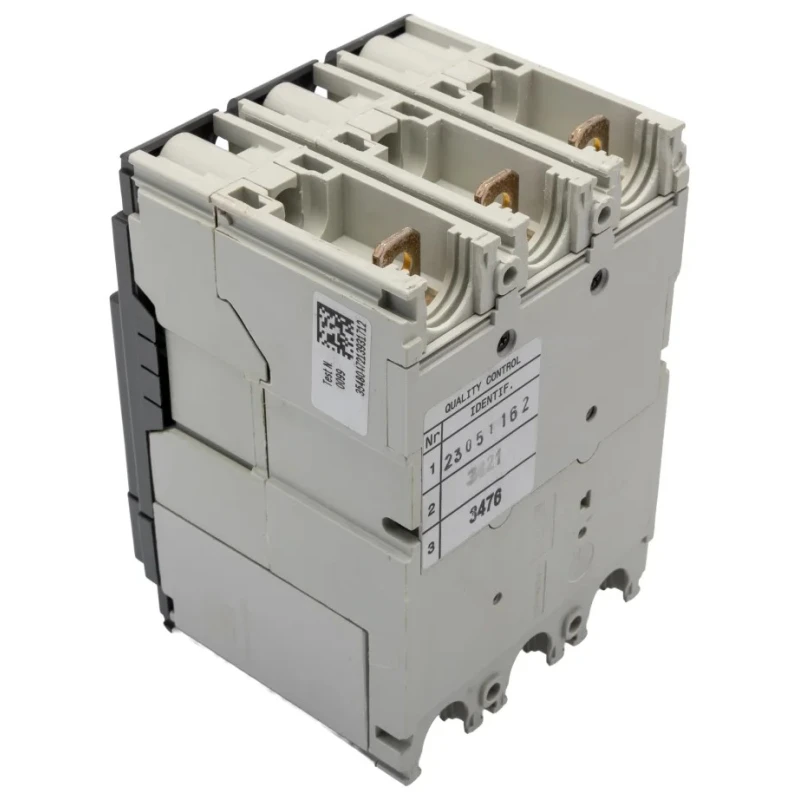

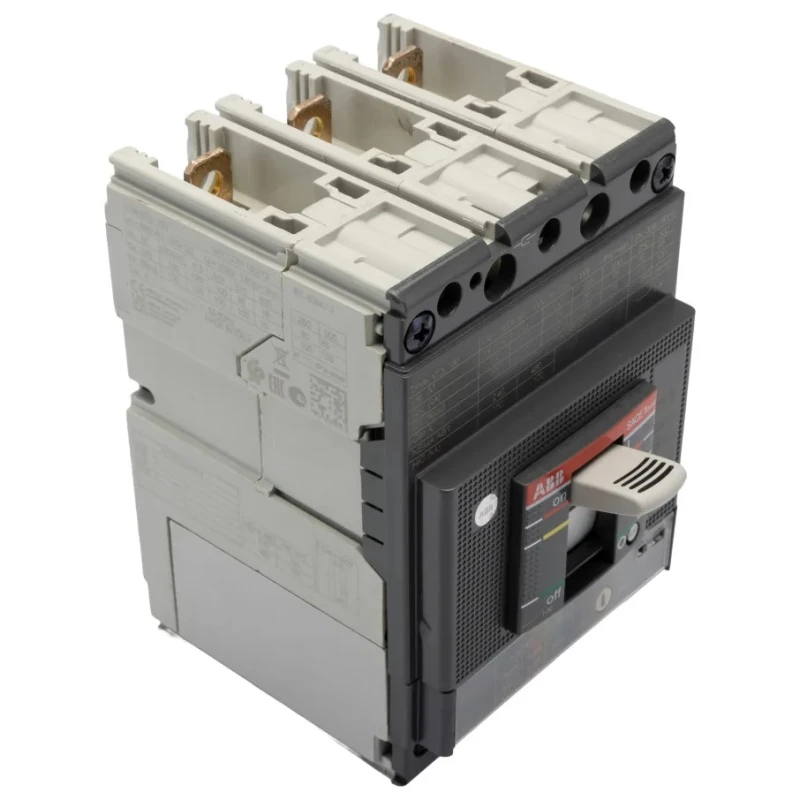

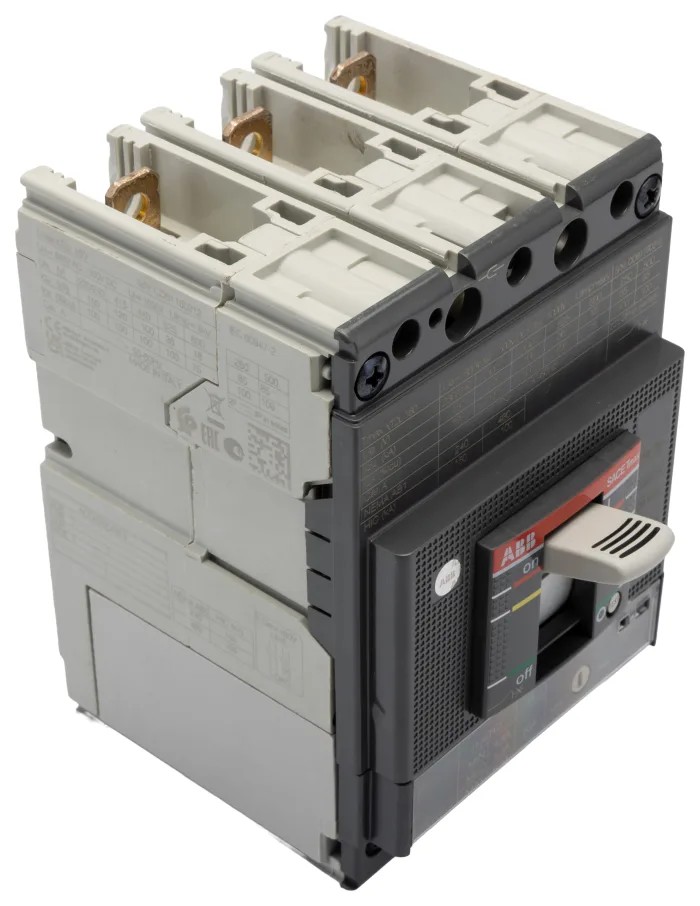

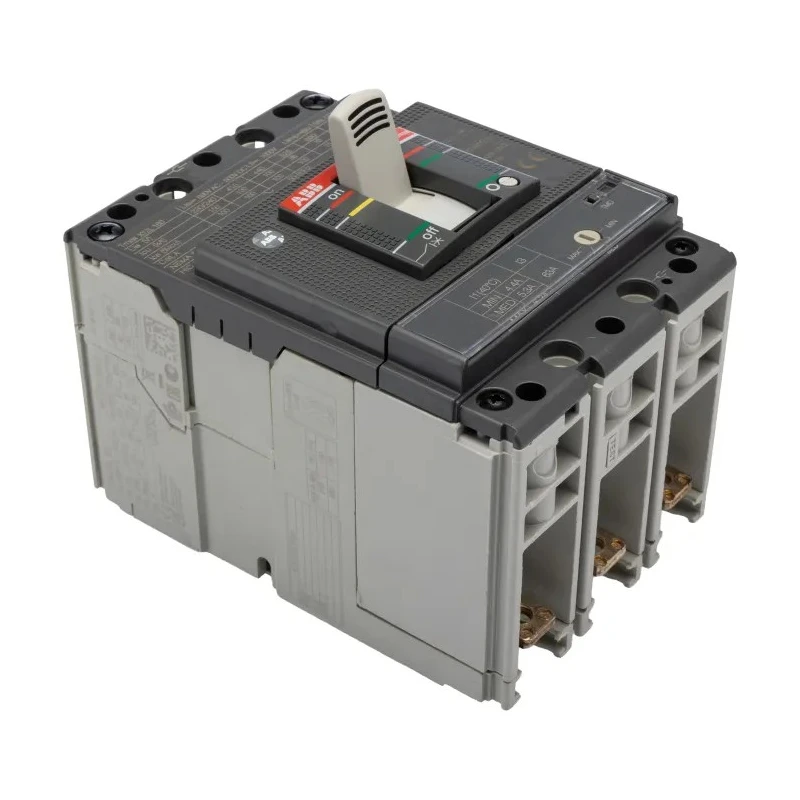

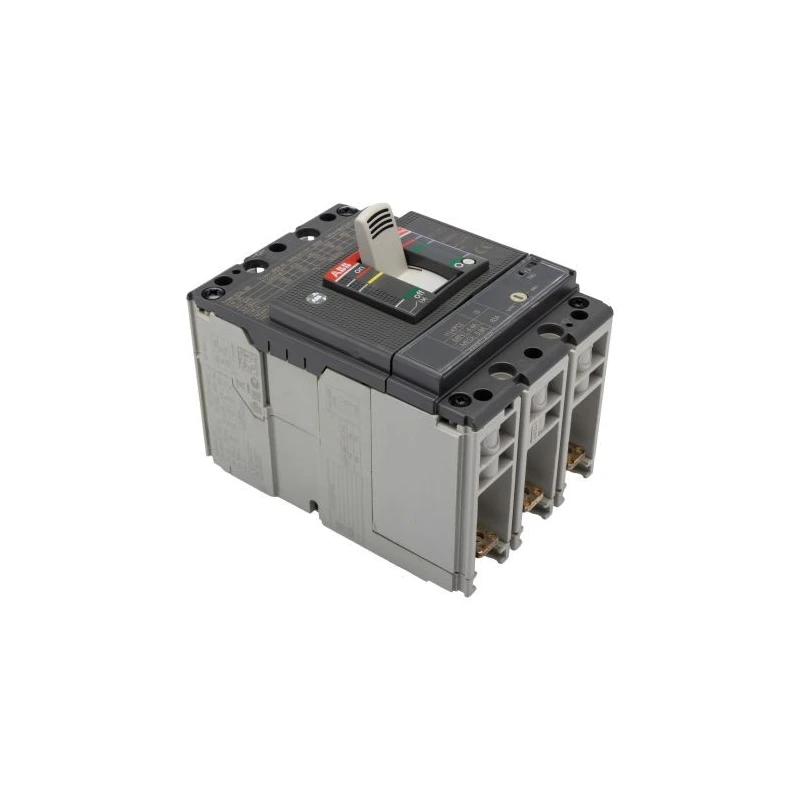

ABB Tmax XT Molded Case Circuit Breaker 3-Pole 6.3A Breaking Capacity 150 kA Fixed 1SDA067634R1 XT2L 160 TMD 6.3A FF

Free Delivery in India | Lowest Global Shipping Charges

ABB Tmax XT Molded Case Circuit Breaker 3-Pole 6.3A Breaking Capacity 150 kA Fixed 1SDA067634R1 XT2L 160 TMD 6.3A FF



Category Molded Case Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Italy
Range	Tmax XT
Brand	ABB
Height	130mm
Model	1SDA067634R1 XT2L 160 TMD 6.3A FF
Depth	82.5mm
Width	90mm
Mount Type	Fixed
Current Rating	6.3A
Series	Tmax XT
Terminal type	Fixed
Breaking Capacity	150kA
Number of Poles	3
Standards/Approvals	CE, IEC, RoHS
Rated AC Voltage	690V ac
Rated DC Voltage	500V dc
Better World Claim	Designed for Disassembly
Tripping Mechanism	Thermal Magnetic
Reset Actuator Type	Lever

Key Features

Designed for fixed mounting with fixed terminals for robust electrical connections.
Thermal magnetic tripping mechanism ensures reliable overload and short circuit protection.
Rated for 690V AC and 500V DC applications supporting versatile industrial uses.
Compact dimensions of 130mm height, 90mm width, and 82.5mm depth suit panel installations.
Reset lever enables quick manual reclosure after trip events for minimal downtime.
Complies with CE, IEC, and RoHS standards ensuring international quality and safety.
Engineered for use in motor protection, distribution panels, and DC-fed equipment.
Manufactured in Italy with high breaking capacity for safe interruption of fault currents.

Product Description

ABB 1SDA067634R1 XT2L 160 TMD 6.3A FF Molded Case Circuit Breaker is a high-quality device designed to provide protection and switching capabilities for three-phase electrical systems in industrial and commercial environments. With a current rating of 6.3A and an exceptional breaking capacity of 150 kA, this 3-pole MCCB offers robust circuit protection against overloads and short circuits through its thermal magnetic trip mechanism.

This breaker is suitable for fixed mounting applications, featuring fixed terminals that ensure reliable conductor clamping and permanent cable termination. It supports rated voltages up to 690V AC and 500V DC, making it versatile for various AC systems and DC control circuits commonly found in industrial automation, motor protection, and control cabinet configurations.

The compact dimensions of 130mm height, 90mm width, and 82.5mm depth allow for easy integration in distribution panels. The reset actuator lever facilitates quick manual reclosure, enabling efficient restoration of power after an interruption. Manufactured in Italy, the breaker meets rigorous standards, including CE, IEC, and RoHS compliance, ensuring safety, sustainability, and performance.

This Molded Case Circuit Breaker is ideal for protecting motors, supporting distribution panels in industrial automation systems, and defending DC-fed equipment up to 500V. Its high breaking capacity allows safe interruption of fault currents typical in large industrial installations, enhancing electrical system reliability.

Designed for fixed mounting with fixed electrical terminals for secure installation. Thermal magnetic trip unit balances overload and short-circuit protection needs. Rated for 690V AC and 500V DC applications suitable for diverse environments.

Complies with CE, IEC, and RoHS directives ensuring certified safety and environmental standards. Compact footprint facilitating easy panel integration and maintenance. Reset lever offers convenient manual reset following trip events.

Manufactured with sustainability and disassembly in mind aligning with Better World standards.
