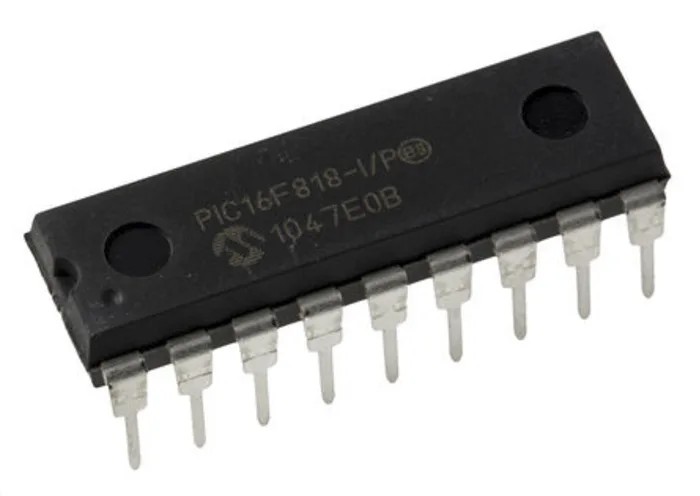

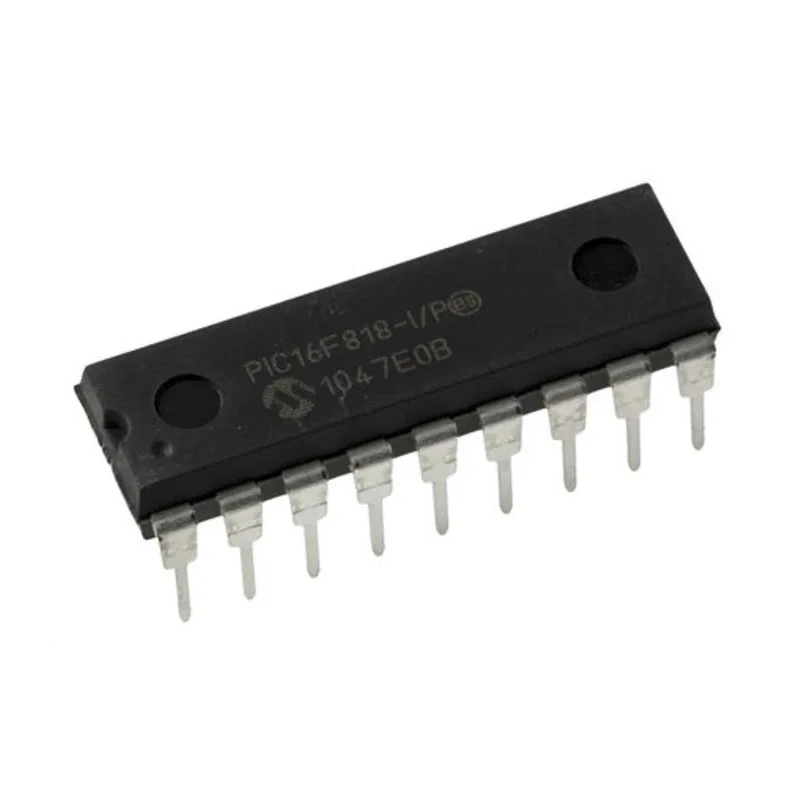

Microchip 8-bit PIC Microcontroller 20 MHz 1.792 kB FLASH 128-bit RAM 18-Pin PDIP PIC16F818-I/P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 3.68mm |
| Length | 22.99mm |
| Model | PIC16F818-I/P |
| Width | 6.6mm |
| Mount Type | Through Hole |
| Series | PIC16F |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 128bit |
| Interface Type | SPI |
| Pin Count | 18 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 1.792, 128kB |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 16 |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| ADCs | 5 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Equipped with 18-pin PDIP package for through-hole mounting.
- Supports SPI interface and features 16 programmable I/O pins.
- Includes 5 channel 10-bit ADC and 3 timers (two 8-bit and one 16-bit).
- Operates within supply voltage range of 2 V to 5.5 V.
- Features power-saving peripherals such as Power-On Reset and Brown-Out Reset protection.
- Suitable for embedded applications requiring moderate program memory and processing speed.
- Operating temperature range from -40°C to 85°C ensures reliability in diverse environments.
- In-circuit serial programming and debugging support for easy development and deployment.
Product Description
Microchip PIC16F818-I/P is an 8-bit microcontroller based on Microchip's PIC architecture, featuring a 20 MHz maximum clock frequency and 1.792 kB flash program memory combined with 128-bit RAM. It comes in an 18-pin PDIP package suitable for through-hole mounting. This microcontroller uses RISC instruction set architecture and offers up to 16 programmable I/O pins, providing flexibility for embedded control applications.
The device supports synchronous serial communications via SPI and I2C protocols, includes a 5-channel 10-bit ADC, and incorporates multiple timers including two 8-bit timers and one 16-bit timer for precise timing control. Power management is enhanced with integrated Brown-Out Reset, Power-On Reset, and Watchdog Timer features to ensure stable operation.
Operating across a wide temperature range from -40°C to 85°C and a supply voltage range of 2 V to 5.5 V, the PIC16F818-I/P is suitable for industrial, consumer electronics, and automotive applications requiring reliable performance under varying environmental conditions.
In-circuit serial programming (ICSP) and debugging (ICD) capabilities facilitate development and troubleshooting. The onboard factory-calibrated oscillator provides accuracy with ±1% tolerance, supporting precise embedded system designs.
Equipped with 18-pin PDIP package suitable for through-hole installation. Operates at maximum CPU speed of 20 MHz with RISC architecture. Provides 1.792 kB of FLASH memory for program storage. Features 128-bit RAM for data storage and 16 programmable I/O pins.
Integrates 5 x 10-bit ADC channels for analog input functionality. Includes multiple timers and synchronous serial communication interfaces (SPI, I2C). Offers safety features such as Power-On Reset, Brown-Out Reset, and Watchdog Timer.
Designed for applications across industrial, automotive, and consumer electronics sectors. Supports in-circuit debugging and programming for efficient development. Explore a wide range of Microchip Microcontrollers and related semiconductor devices on EnvMart for your embedded system and electronics design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 20 MHz.
It features a program memory size of 1.792 kB FLASH.
This microcontroller has 16 programmable I/O pins.
It supports SPI and I2C interfaces for synchronous serial communication.
The operating temperature range is from -40°C to 85°C.
It operates within a supply voltage range of 2 V to 5.5 V.
The device includes three timers: two 8-bit timers and one 16-bit timer.
It comes in an 18-pin PDIP package suitable for through-hole mounting.
It includes Power-On Reset, Brown-Out Reset, and Watchdog Timer features.
The microcontroller has a RAM size of 128 bits.
The height is 3.68 mm and the width is 6.6 mm.
It is suitable for industrial, consumer electronics, and automotive applications.
