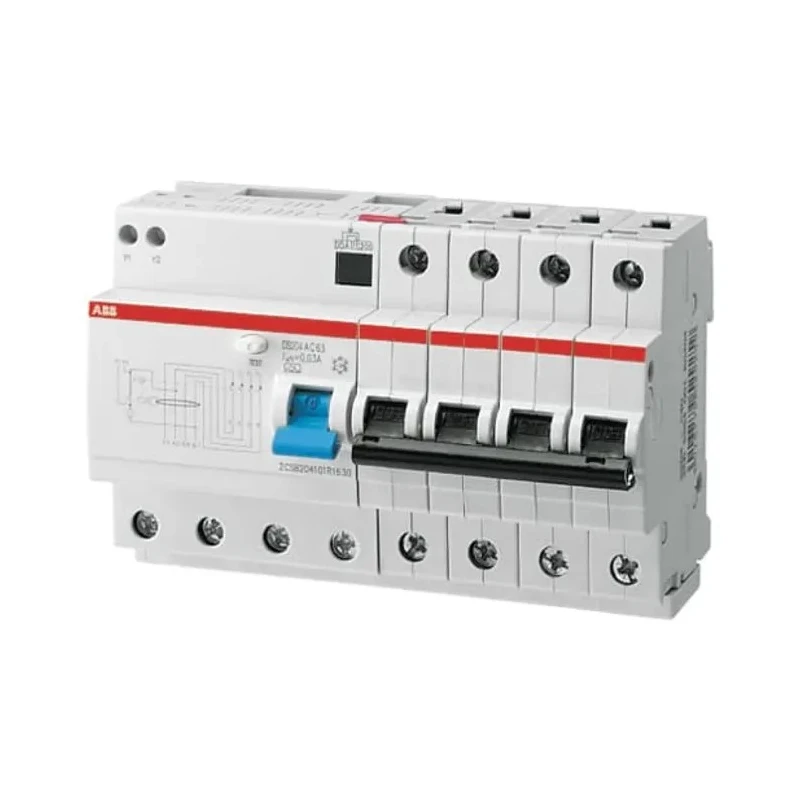

ABB Residual Current Circuit Breaker with Overload Protection 13A Current Rating 4-Pole 30 mA Trip 2CSR274101R1134



Category Residual Current Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Italy
Brand	ABB
Height	93mm
Model	2CSR274101R1134
Depth	69mm
Width	105mm
Standards	IEC/EN 60947-2
Current Rating	13A
Series	DS200
Terminal type	Screw
Breaking Capacity	10kA
Number of Poles	4
Standards/Approvals	RoHS, REACH, IEC/EN 60947-2
Rated AC Voltage	400V ac
Tripping Characteristics	Type C
Reset Actuator Type	Lever
Trip Sensitivity	30mA
Earth Leakage Protection Type	Type A
Operating Characteristic	Instantaneous

Key Features

Protects against overload and short-circuit currents effectively.
Designed for residential and industrial electrical applications.
Incorporates type A earth leakage protection for enhanced safety.
Features a lever-type reset actuator for convenient operation.
Built to IEC/EN 60947-2 standards ensuring international compliance.
Breaking capacity rated at 10kA to handle fault conditions safely.
Utilizes screw-type terminal connections for secure wiring.
Instantaneous operating characteristic with type C tripping for precise response.

Product Description

ABB 2CSR274101R1134 Residual Current Circuit Breaker with Overload Protection is engineered to provide comprehensive protection against overloads, short circuits, and sinusoidal alternating earth fault currents. This 4-pole device has a rated current of 13A and a trip sensitivity of 30 mA, making it suitable for residential, commercial, and industrial electrical safety applications.

Part of the DS200 series, this RCBO meets international IEC/EN 60947-2 and IEC/EN 61009-1 standards, ensuring reliable performance and safety compliance. The breaker features a type C tripping characteristic and type A earth leakage protection, offering enhanced protection against indirect and direct electrical contacts.

Its reset actuator lever allows easy manual reset after tripping events, while the robust screw terminal type ensures secure installation. The breaker’s compact size of 93mm height, 105mm width, and 69mm depth fits well within standard electrical distribution panels.

The device has a breaking capacity of 10kA, capable of handling fault conditions safely without damage. Manufactured in Italy, this RCCB assures high quality and durability for electrical installations requiring stringent safety standards.

Effective overload and short circuit current protection. Compliance with RoHS, REACH, IEC/EN 60947-2 standards. Compact design suitable for typical circuit breaker panels. Type A earth leakage protection for electrical safety.

Instantaneous operating characteristic for fast response. Screw terminal connections for reliable wiring. Reset lever actuator for manual control. Breaking capacity rated at 10kA ensuring fault resilience. 13A rated current with 4 poles for multi-phase protection.

30 mA trip sensitivity for leakage current detection.

This ABB Residual Current Circuit Breaker with Overload Protection is ideal for ensuring safety in residential and industrial electrical installations requiring reliable earth fault and overload protection. Explore more electrical protection devices in EnvMart's comprehensive catalog to meet diverse industrial and commercial requirements.
