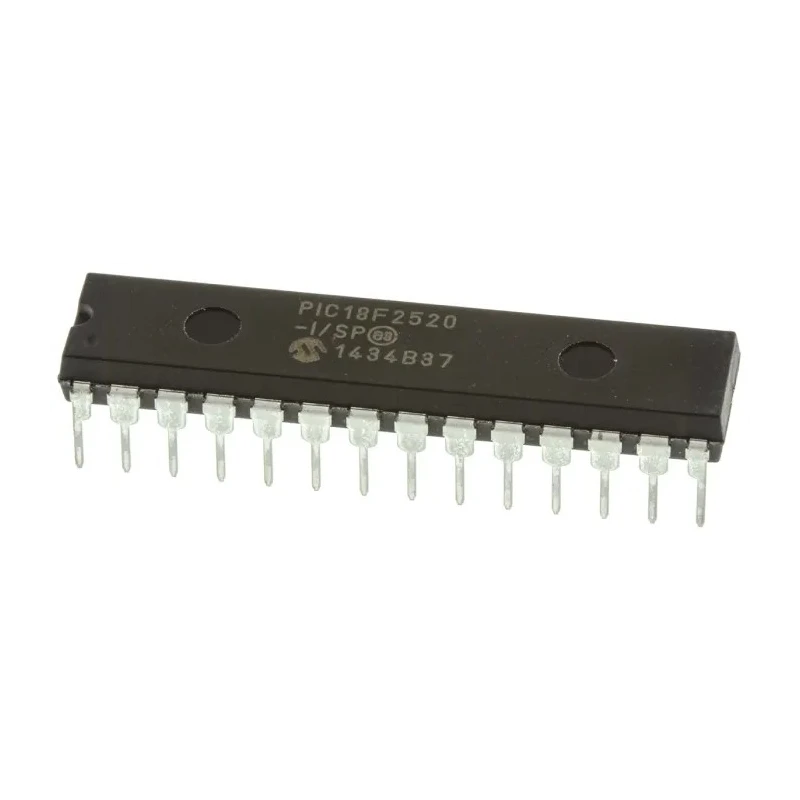

Microchip PIC18F2520-I/SP 8-bit PIC Microcontroller 40 MHz, 32 kB Flash, 1.54 kB RAM, 28-Pin SPDIP Through Hole
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 3.81mm |
| Length | 35.56mm |
| Model | PIC18F2520-I/SP |
| Width | 7.49mm |
| Mount Type | Through Hole |
| Series | PIC18F |
| Maximum Operating Temperature | 85°C |
| Package Type | SPDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 1.54kB |
| Interface Type | SPI |
| Pin Count | 28 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 32, 256kB |
| Maximum Clock Frequency | 40MHz |
| Number of Programmable I/Os | 25 |
| Analogue Comparators | 2 |
| Number of Timers | 4 |
| Instruction Set Architecture | RISC |
| ADCs | 10 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- High-performance 8-bit PIC microcontroller running at up to 40 MHz.
- Featuring 32 kB Flash program memory and 1.54 kB RAM capacity.
- Encapsulated in 28-pin SPDIP package with through-hole mounting.
- Operates on supply voltage range from 2 V up to 5.5 V for flexible power applications.
- Includes 25 programmable I/O pins and multiple peripheral modules.
- Supports SPI interface for serial communication and in-circuit serial programming.
- Integrated 10-bit ADC channels with 10 analogue comparators for sensor interfacing.
- Robust operation across -40°C to 85°C industrial temperature range.
Product Description
Microchip PIC18F2520-I/SP is an advanced 8-bit PIC microcontroller designed for embedded applications requiring high performance and low power consumption.
This microcontroller operates at a maximum clock speed of 40 MHz, providing efficient processing capabilities using the PIC18 architecture with a 31 level hardware stack and an extensive instruction set tailored for embedded programming.
It features 32 kB of Flash program memory for versatile code storage and 1.54 kB of RAM to support data operations. The device includes 25 programmable input/output pins in a compact 28-pin SPDIP through-hole package, suitable for easy prototyping and integration.
Operating voltage ranges from 2 V to 5.5 V, allowing flexible deployment in various power supply environments. The PIC18F2520-I/SP offers rich peripherals such as SPI interface, in-circuit serial programming (ICSP), in-circuit debug (ICD), and multiple timers, making it suitable for complex control tasks.
Additional features include ten 10-bit analogue-to-digital converters (ADC), two internal analogue comparators, and watchdog timer capabilities. Its industrial temperature rating from -40°C to 85°C ensures operational stability in harsh environments.
High 40 MHz clock speed for fast processing. 32 kB Flash and 1.54 kB RAM memory sizes. 28-pin SPDIP packaging for socket compatibility. Wide power supply operating range: 2 V to 5.5 V. Multiple timers and ADC peripherals for embedded control.
Low power nanoWatt technology for energy-sensitive designs. Industrial temperature range for rugged applications. Supports SPI serial communication interface. In-circuit serial programming and debugging support. Suitable for automotive, industrial, and consumer electronics.
This microcontroller is a standard choice for engineers developing reliable embedded systems in sectors such as industrial automation, automotive control units, sensor data acquisition, and other applications demanding robust 8-bit processing power and extensive peripheral options.
Explore more Microcontrollers in EnvMart’s Electronics & Electricals category for a broad range of semiconductor solutions catered to modern embedded design.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 40 MHz, providing efficient processing capabilities for embedded applications.
It features a program memory size of 32 kB, allowing for versatile code storage in embedded systems.
The PIC18F2520-I/SP operates within a supply voltage range of 2 V to 5.5 V, providing flexibility for various power supply environments.
This microcontroller includes 25 programmable I/O pins, facilitating extensive interfacing capabilities for embedded applications.
It is encapsulated in a 28-pin SPDIP package, suitable for through-hole mounting and easy prototyping.
The operating temperature range for the PIC18F2520-I/SP is from -40°C to 85°C, making it suitable for industrial applications.
This model supports SPI interface for serial communication, as well as in-circuit serial programming and debugging.
The PIC18F2520-I/SP includes ten 10-bit ADCs, enabling effective sensor interfacing capabilities.
It has a RAM size of 1.54 kB, which supports data operations in embedded applications.
The maximum power dissipation for the PIC18F2520-I/SP is rated at 1 W, ensuring efficient power management.
This microcontroller features four timers, which can be utilized for various timing and control tasks in embedded systems.
The PIC18F2520-I/SP is manufactured in India, contributing to its global availability.
