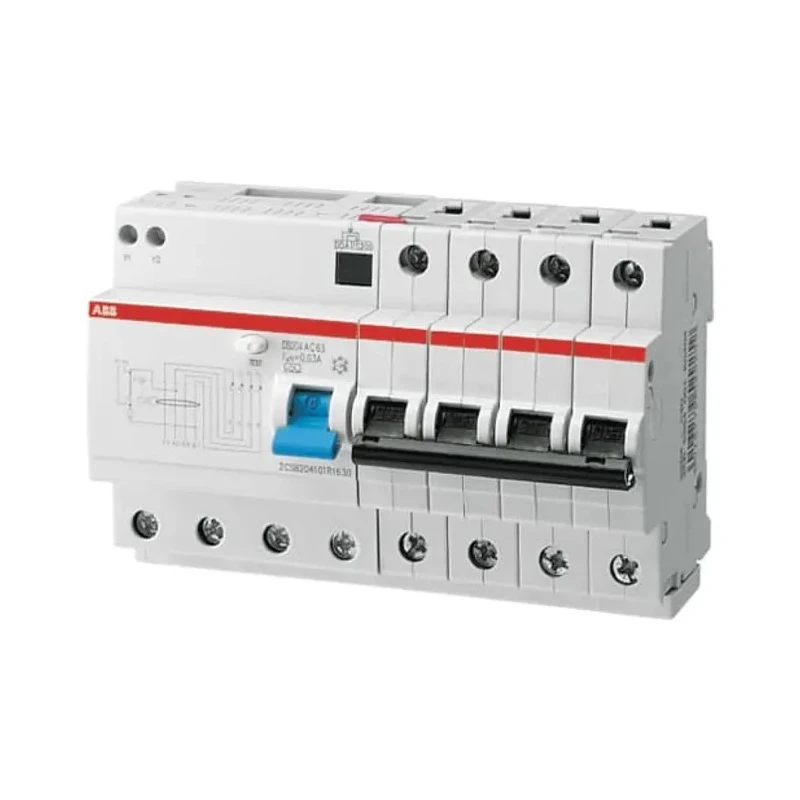

ABB Residual Current Circuit Breaker with Overload Protection 25A 4-Pole 30 mA Trip Sensitivity DS200 Type B 2CSR254001R1255

Free Delivery in India | Lowest Global Shipping Charges

ABB Residual Current Circuit Breaker with Overload Protection 25A 4-Pole 30 mA Trip Sensitivity DS200 Type B 2CSR254001R1255



Category Residual Current Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Italy
Range	DS200
Brand	ABB
Height	93mm
Model	2CSR254001R1255
Depth	69mm
Width	105mm
Standards	IEC/EN 60947-2
Current Rating	25A
Series	DS200
Terminal type	Busbar
Breaking Capacity	6kA
Number of Poles	4
Standards/Approvals	IEC/EN 60947-2, IEC/EN 61009-1, UL/CSA
Rated AC Voltage	400V ac
Tripping Characteristics	Type B
Reset Actuator Type	Lever
Trip Sensitivity	30mA
Earth Leakage Protection Type	AC
Operating Characteristic	Instantaneous

Key Features

Designed for AC earth leakage protection type with Type B tripping characteristics.
Operates at rated AC voltage of 400V for residential and short circuit protection applications.
Features a lever reset actuator for easy manual operation.
Compact dimensions of 93mm height, 69mm depth, and 105mm width for versatile installation.
Complies with IEC/EN 60947-2, IEC/EN 61009-1, and UL/CSA safety standards.
Breaking capacity rating of 6kA ensures reliable interruption of fault currents.
Part of ABB’s DS200 series for high-performance residual current breakers with overload function.

Product Description

ABB 2CSR254001R1255 Residual Current Circuit Breaker with Overload Protection DS200 series combines protection against overload currents, short-circuit currents, and earth leakage faults, ensuring comprehensive safety for electrical installations. This 4-pole breaker supports a nominal current of 25A and trip sensitivity of 30mA, making it well-suited for residential use and other applications requiring AC earth leakage protection.

The breaker operates at a rated AC voltage of 400V and has a breaking capacity of 6kA, offering dependable fault interruption capabilities. The device features a lever reset actuator type, facilitating straightforward manual resets after trip events. Its compact dimensions - 93mm height, 69mm depth, and 105mm width - allow for efficient installation within electrical panels and distribution boards.

The DS200 series breakers adhere to rigorous international standards including IEC/EN 60947-2, IEC/EN 61009-1, and UL/CSA, confirming compliance with high safety and quality benchmarks. The instantaneous operating characteristic and Type B tripping behavior provide precise and timely disconnections to protect wiring and connected equipment.

These breakers are specifically designed to protect against sinusoidal alternating earth fault currents, indirect contacts, and provide additional safeguarding against direct contacts, enhancing overall electrical safety.

Installation of this breaker is applicable in residential settings and environments requiring short circuit and overload protection. Its busbar terminal type ensures secure and robust electrical connections.

Designed for AC earth leakage protection type with Type B tripping characteristics. Operates at rated AC voltage of 400V for residential and short circuit protection applications. Features a lever reset actuator for easy manual operation.

Compact dimensions of 93mm height, 69mm depth, and 105mm width for versatile installation. Complies with IEC/EN 60947-2, IEC/EN 61009-1, and UL/CSA safety standards. Breaking capacity rating of 6kA ensures reliable interruption of fault currents.

Part of ABB’s DS200 series for high-performance residual current breakers with overload function. For reliable circuit protection across electrical, residential, HVAC, and industrial installations, explore more ABB products and circuit breakers at EnvMart.
