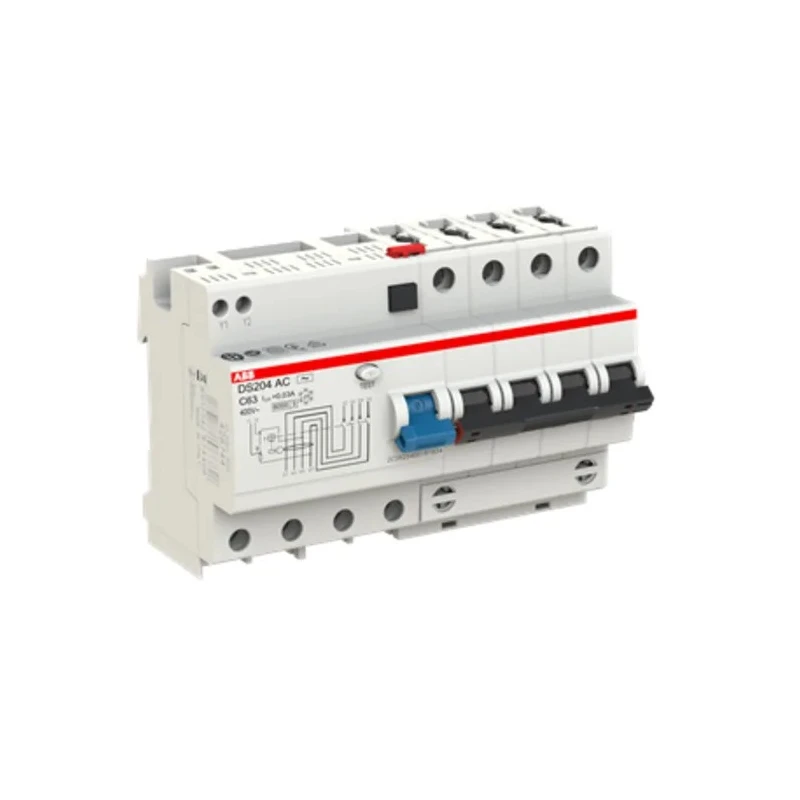

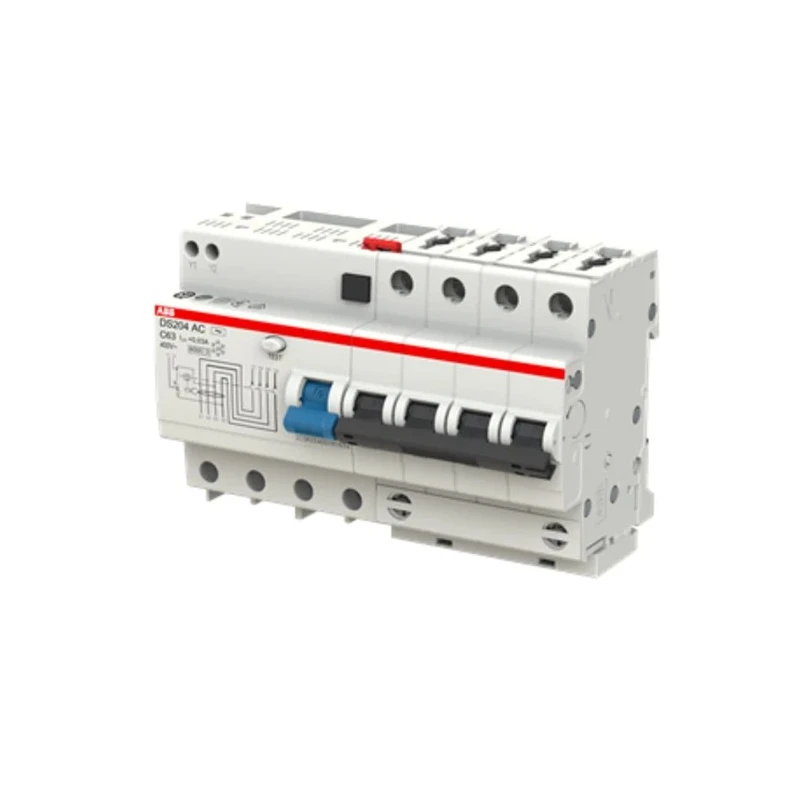

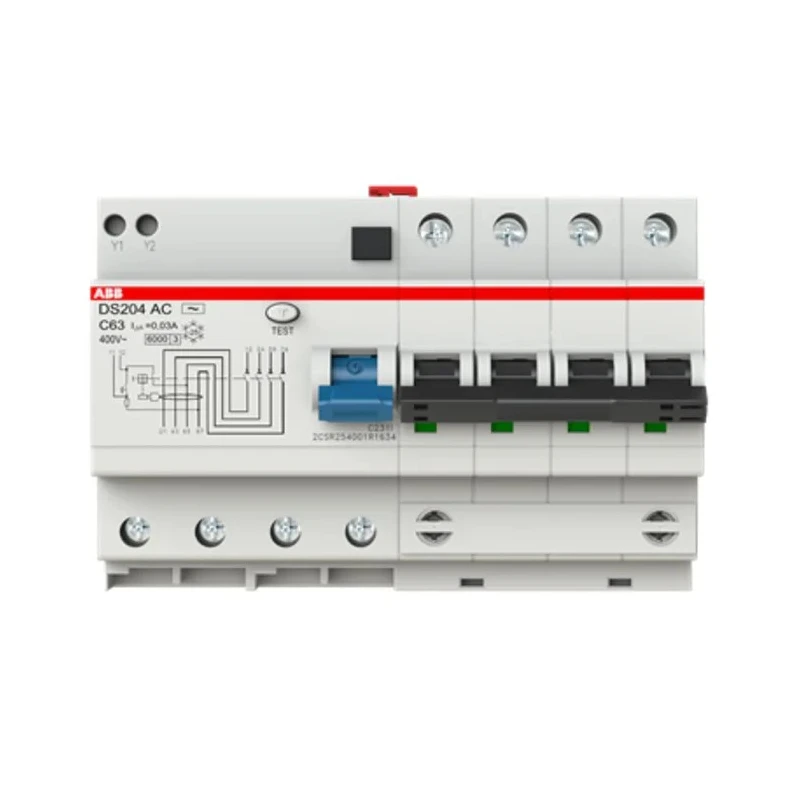

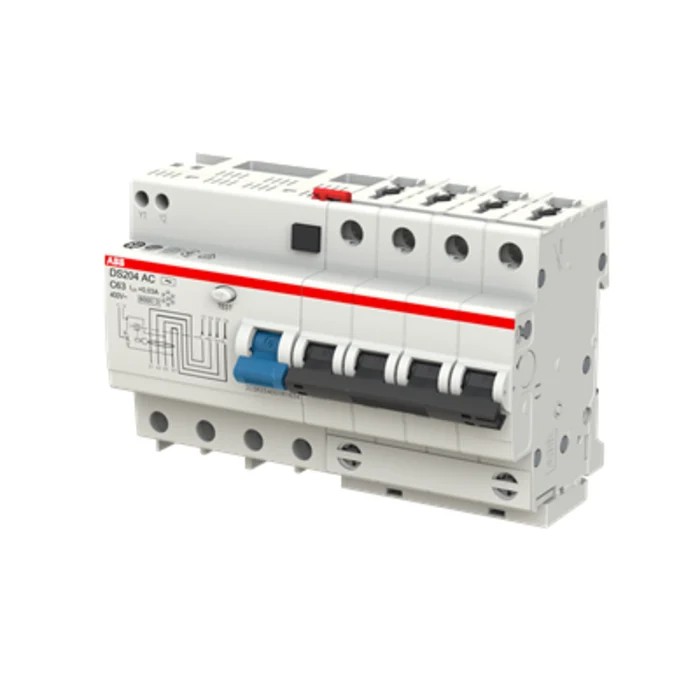

ABB Residual Current Circuit Breaker with Overload Protection 63A Current Rating 4-Pole 30mA Trip 2CSR254001R1634

ABB 2CSR254001R1634 Residual Current Circuit Breaker with Overload Protection is a durable electrical safety device designed for residential, commercial, and industrial applications requiring reliable circuit safeguarding. Rated for 63A current and employing a 4-pole configuration, this circuit breaker provides vital protection against overload currents and short circuits while also detecting earth leakage through its 30mA trip sensitivity.

Constructed to meet rigorous safety standards including UL/CSA, IEC/EN 61009-1, and IEC/EN 60947-2, the device ensures dependable performance and compliance in diverse electrical systems. Its type C tripping characteristic is optimized for typical residential and commercial loads, offering balanced sensitivity and selectivity to prevent nuisance tripping.

The breaker supports screw terminal connections suitable for both rigid and flexible wiring, enhancing installation versatility. With a high breaking capacity of 10kA, it can safely interrupt severe fault currents without damage. The manual lever reset actuator simplifies user engagement post-trip, facilitating quick restoration of service.

Measuring 105mm width, 93mm height, and 69mm depth, this compact breaker fits standard electrical enclosures. It is engineered to operate reliably within a temperature range of -25°C to +55°C, accommodating various environmental conditions.

Reliable overload and short-circuit current protection with earth leakage detection at 30mA sensitivity. Type C tripping characteristics suitable for comprehensive protection requirements. 4-pole configuration supports multiple circuit setups and phases.

Screw terminal type facilitates robust electrical connections. Compliant with major international electrical safety standards. High breaking capacity of 10kA for safety in extreme fault conditions. Manual lever reset actuator for straightforward operation.

Compact dimensions ensure ease of integration in electrical panels. Suitable for residential, commercial, industrial, and automation system applications. Operates effectively across a temperature range from -25°C to +55°C.

This ABB Residual Current Circuit Breaker is a critical component for safe and reliable electrical distribution systems, protecting users and equipment from hazardous electrical faults. Explore more electrical safety devices and circuit breakers on EnvMart for your precise technical needs.
