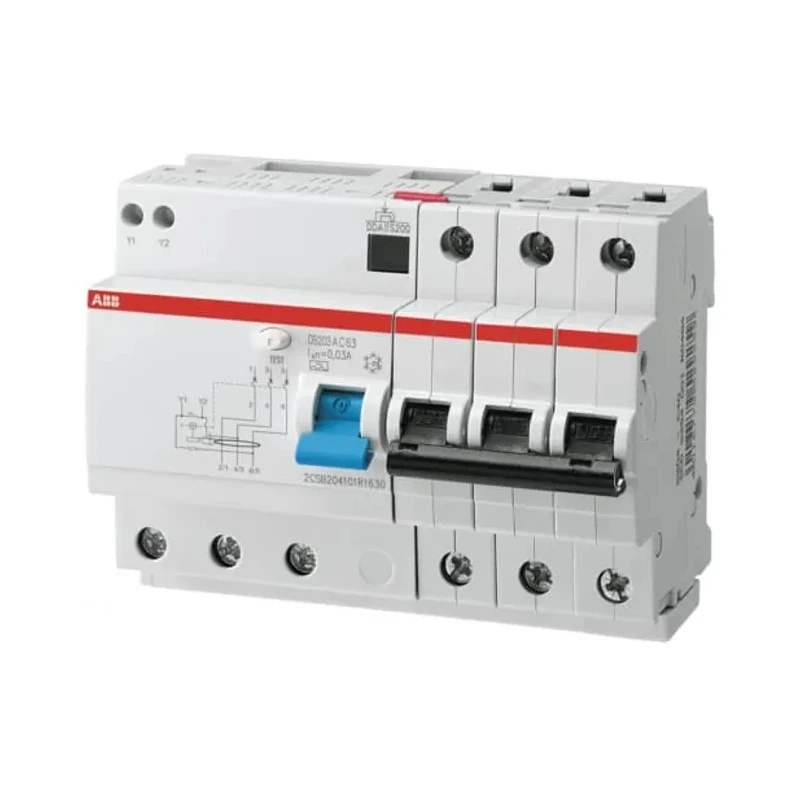

ABB Residual Current Circuit Breaker with Overload Protection 20A Current Rating 3-Pole 30mA Trip 2CSR253101R1204



Category Residual Current Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Italy
Range	DS200
Brand	ABB
Height	93mm
Model	2CSR253101R1204
Depth	69mm
Width	87mm
Standards	IEC/EN 60947-2
Current Rating	20A
Series	DS200
Ambient air temperature	Operation -25 ... +55 °C
Terminal type	Busbar
Breaking Capacity	10kA
Number of Poles	3
Standards/Approvals	IEC/EN 60947-2 IEC/EN 61009-1
Rated AC Voltage	400V ac
Tripping Characteristics	Type C
Reset Actuator Type	Lever
Trip Sensitivity	30mA
Earth Leakage Protection Type	Type A
Operating Characteristic	Instantaneous

Key Features

Protects against overload and short-circuit currents efficiently.
Trip sensitivity set at 30mA for precise earth fault detection.
Complies with IEC/EN 60947-2 and IEC/EN 61009-1 standards.
Leverages type C tripping characteristics for instantaneous operation.
Supports busbar terminal type for secure electrical connection.
Earth leakage protection is of Type A for additional safety.
Breaking capacity rated at 10kA for high fault tolerance.
Operational ambient temperature from -25 to +55 °C ensures versatile use.

Product Description

ABB 2CSR253101R1204 Residual Current Circuit Breaker (RCBO) with overload protection is designed for residential and general electrical circuit safety. Rated at 20A current with a 3-pole configuration and a trip sensitivity of 30mA, this RCBO provides reliable protection against overloads, short circuits, and earth fault currents, minimizing risks of electrical hazards.

The DS200 series adheres to IEC/EN 60947-2 and IEC/EN 61009-1 standards ensuring international compliance and performance reliability. Its type C instantaneous tripping characteristic allows fast disconnection in the event of short circuits or faults to protect your electrical system.

Built for robust and secure installation, the unit features busbar terminal connections and an easy-to-use lever reset actuator. The earth leakage protection Type A offers response to both AC and pulsating DC residual currents.

Compact dimensions (93mm height, 87mm width, and 69mm depth) facilitate installation in standard electrical panels. The device can operate efficiently in ambient temperatures ranging from -25 °C to +55 °C, making it suitable for diverse environmental conditions.

The device’s breaking capacity of 10kA ensures it can withstand high fault currents without damage, providing safety in demanding electrical environments.

Manufactured in Italy, the breaker exemplifies quality and durability expected from ABB products. This RCBO is ideal for use in industrial, residential, commercial electrical circuits, and HVAC systems requiring reliable protection against electrical overloads and earth leakage currents.

Protects circuits from overloads and short circuits. High sensitivity earth leakage detection at 30mA. Compliant with multiple IEC/EN safety and performance standards. Supports busbar terminal connection for durability. Ergonomic lever reset for convenient operation.

Type C instantaneous tripping for quick fault response. Rated for ambient operation between -25 to +55 °C. High breaking capacity enhancing safety in fault conditions. Compact design for easy panel integration. Suitable for residential, industrial, and commercial applications.
