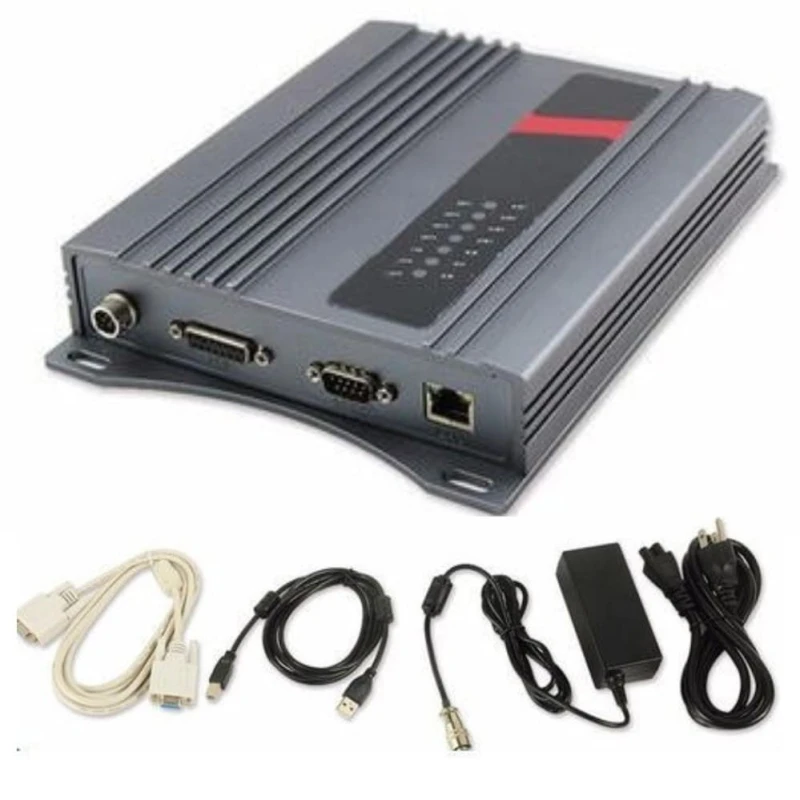

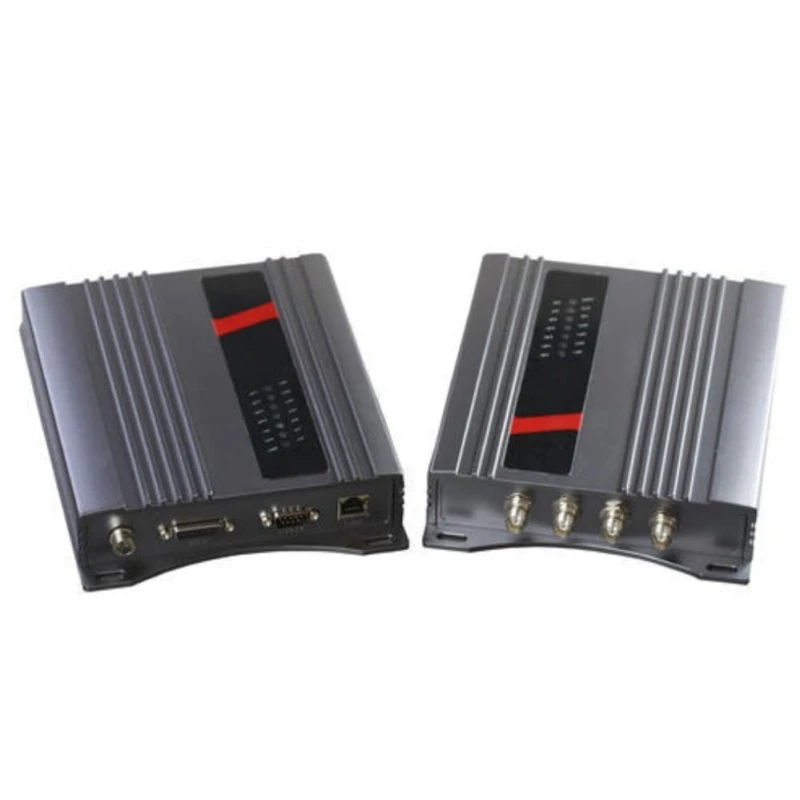

Passive UHF 4-Port Reader IDT-404
Specifications
| Power Consumption | 10W |
|---|---|
| Power Supply | 100-240V AC Power Adapter (POE Optional) |
| Humidity | 5% RH 95% RH non condensing |
| Temperature | -25 Degree C to +65 Degree C (Operating) -25 Degree C to +80 Degree C (Storage) |
| Weight | 1.18 Kg |
| Product Dimension | 230mm x 170mm x 40mm |
| Operating Mode | Auto-Running Interactive and Trigger-Activating |
| Protection Class | IP 40 |
| Housing | Robust Aluminium Body |
| Interfaces | RS232 GPIO Port (2 Input 2 Output TTL Compitable) TCP/IP |
| Work Frequency | Standard ISM 865-867 MHz (IND)865-868 MHz (EU) 902-928 MHz (US) |
| Antenna | Four Antenna / TNC Connectors |
| Reading Rate | Up to 200 Tags/second |
| Read Range | Upto 8 meters with 8dBi Antenna and upto 15 meters with a 12 dBi Antenna |
| Indicators | Buzzer & LED (Power LAN RF Read Fault) |
| Air Interface Protocol | ISO18000-6B EPC Class 1 Gen2 (ISO18000-6C) |
| SDP | Provided DLL and Demonstration Software Source code to Facilitate Further Development |
| Frequency Hopping | FHSS or Fix Frequency Transmission |
| Write Range | 0-5m |
| Max Receiver Sensitivity | -82dBm |
| RF Power Output | 0-30dBm (adjustable) |
Key Features
- High Durability
Product Description
IDT 401 is a cost-effective 4-port UHF High-Performance Reader, easy-to-install. It provides flexible connectivity via LAN, USB, Serial & GPIO. IDT 401 device reads more than 200 tags per second at distances up to 15 meters (tag and environment dependent) with 12 dBi Antenna gain when configured with appropriate antennas.IDT 401 device comes with a robust metal enclosure and is easy to be deployed in wide applications such as Logistics, Access Control, Anti-Counterfeit, Industrial Production, Process Control systems, and others.
