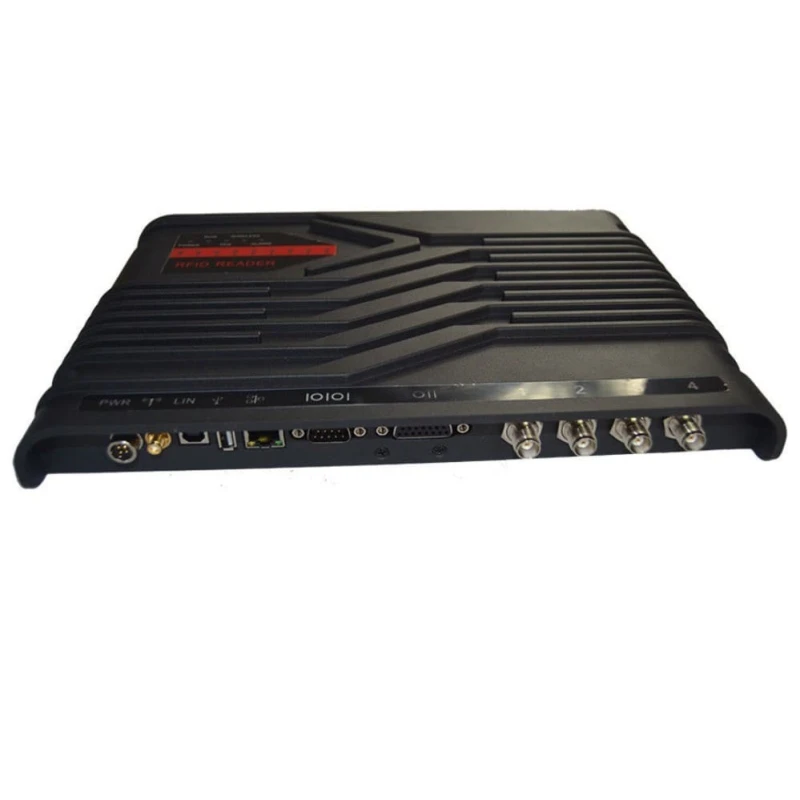

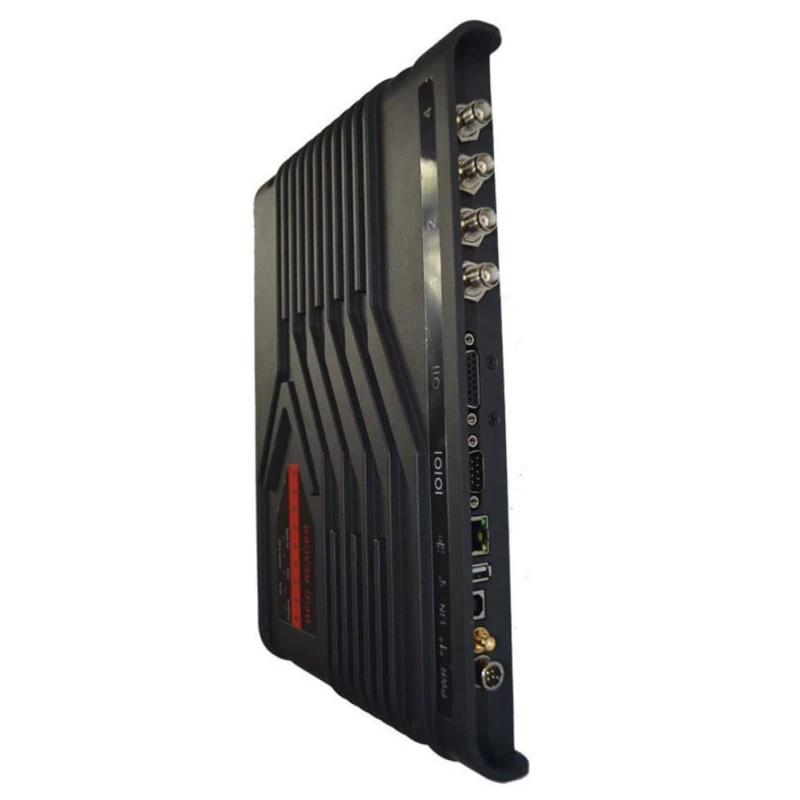

UHF 4-Port Reader IDT-404 I
Specifications
| Power Supply | 100-240V AC DC+9V (Power Adapter) |
|---|---|
| Humidity | 5% RH 95% RH non condensing |
| Temperature | -25 Degree C to +65 Degree C (Operating) -25 Degree C to +75 Degree C (Storage) |
| Weight | 2 KG |
| Product Dimension | 310mm x 210mm x 41mm |
| Operating Mode | Auto-Running Interactive and Trigger-Activating |
| Protection Class | IP 64 |
| Housing | Robust Aluminium Body |
| Processor | Impinj R2000 Chip |
| Interfaces | RS232 RS485 USB (Host / Slave) GPIO TCP/IP |
| Power Output | 0-30dBm (adjustable) |
| Work Frequency | Standard ISM 865-867 MHz (IND)865-868 MHz (EU) 902-928 MHz (US) |
| Antenna | 4 TNC Antenna Ports support Antenna Auto-Tuning and Antenna Testing |
| Read Range | Up to 15m |
| Indicators | Buzzer & LED (Power RF Read Fault) |
| Air Interface Protocol | ISO18000-6B EPC Class 1 Gen2 (ISO18000-6C) |
| SDP | Provided DLL and Demonstration Software Source code to Facilitate Further Development |
| Frequency Hopping | FHSS or Fix Frequency Transmission |
| Current Dissipation | 0.5 to 1.2 A |
| Max Receiver Sensitivity | -82dBm |
| Read Rate | 450 Tags/second |
Key Features
- High Durability
Product Description
IDT 404 I is an enterprise-class 4-port reader integrated with Impinj R2000 Chip, designed to help enterprises achieve competitive advantage by increasing inventory visibility and process efficiency, resulting in reduced costs and improved profitability. This long-range UHF RFID reader provides flexible connectivity via LAN, USB, Serial & GPIO.IDT 404 I device reads more than 450 tags per second at distances up to 15 meters (tag and environment dependent) when configured with appropriate antennas. IDT 404 I is an ideal solution for applications including but not limited to Logistics, Access Control, Anti-Counterfeit, Industrial Production, and Process Control systems.
