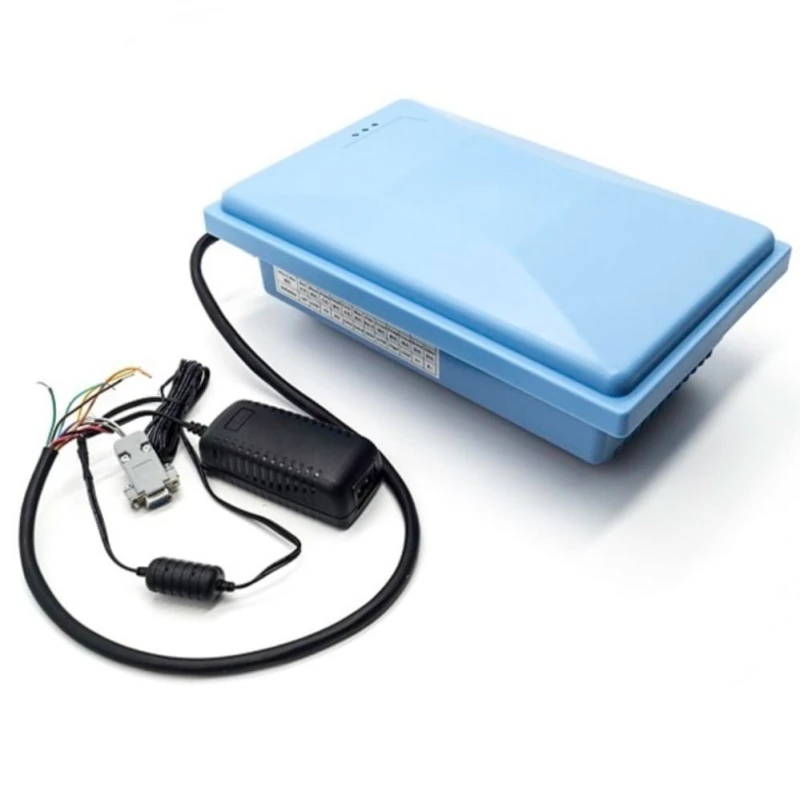

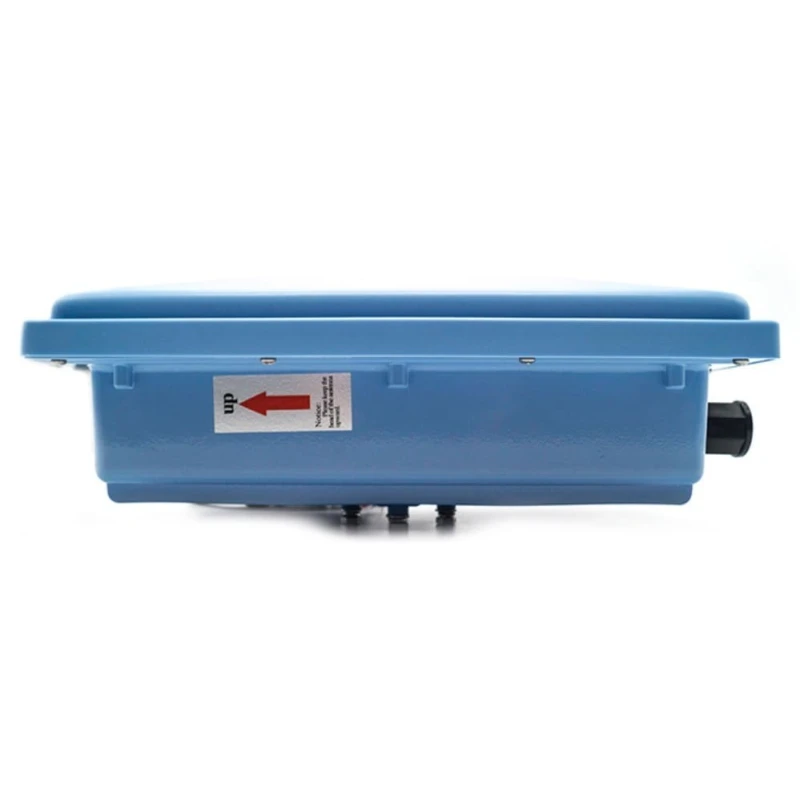

Active Directional Reader IDT-528
Specifications
| Power Consumption | 300mW |
|---|---|
| Power Supply | DC 5V input |
| Humidity | 5% RH 95% RH non condensing |
| SENSITIVITY | -95dBm |
| Temperature | -40 Degree C to +60 Degree C (Operating) -60 Degree C to +80 Degree C (Storage) |
| Weight | 1.6 kg |
| Protection Class | IP 67 |
| Operating Frequency | 2.4 to 2.48 GHz |
| Indicator | Buzzer |
| Reading Range | 0-150m (depend on the tag power output) 0-80 m (depend on the Tag Power Output) |
| SDP | Provided DLL and Demonstration Software Source code to Facilitate Further Development |
| Firmware Upgrade | Yes |
| Shock Resistance | 10-500Hz 100mm/15g Triaxial |
| Communication Interfaces | RS-232 10/100M Adaptive Ethernet |
| Product Dimension (Excluding Antenna) | 315mm x 200mm x 110mm |
| Tag Protocol | Private Protocol |
| Identification Speed | 200pcs/s (Tag ID) |
| Anti-collision | Identifying 300pcs tag at the same time |
| Power Isolation | 1KV (Except Ethernet Data I/O port) |
| Tag Operation Mode | Compatible with active and passive operating mode tags |
| Expansion Interfaces | RS-485 interface Wiegand 26/34 interfaces |
| I/O Port | 2- channel relays output 2- channel trigger input |
Key Features
- High Durability
Product Description
IDT 528 is an Active Integrated Reader that works on 2.45 GHz frequency. The read range of the IDT 528 device is adjustable from 8m to 150m. It supports RS-232, 10/100 MA adaptive Ethernet, and a customized interface.IDT 528 has an intelligent antenna technology with directional identification of tags and linear coverage of the identification range making it very useful for identifying people & objects at a distance of up to 150 meters (tag and environment dependent). This unit carries an IP 67 rating and is perfect for outdoor installations such as Automatic Vehicle Identification, Parking Management, High Toll Collection, Corporation Personnel Management, Warehousing and Logistics, and others.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The IDT-528 operates on a frequency range of 2.4 to 2.48 GHz.
The IDT-528 requires a DC 5V input for power supply.
This unit weighs 1.6 kg.
The operating temperature range for the IDT-528 is from -40°C to +60°C, while the storage temperature range is from -60°C to +80°C.
It is compatible with both active and passive operating mode tags.
The identification speed of this model is 200 pieces per second for Tag ID.
The IDT-528 has an IP 67 rating, making it suitable for outdoor installations.
This unit has a shock resistance of 10-500Hz at 100mm/15g triaxial.
Yes, the IDT-528 supports firmware upgrades.
The device operates in humidity levels from 5% RH to 95% RH, non-condensing.
