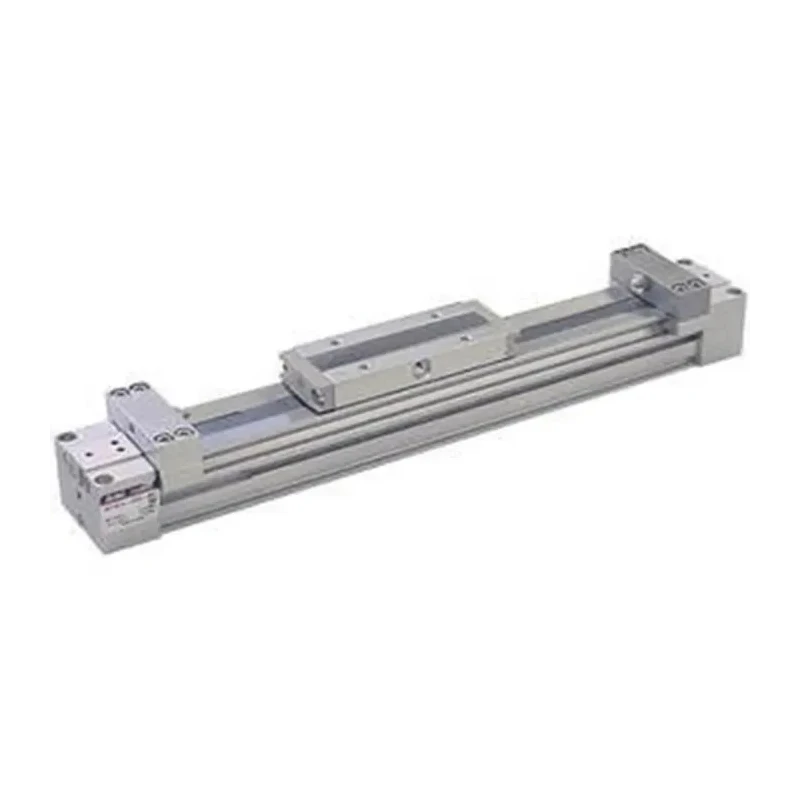

SMC Double Acting Rodless Pneumatic Cylinder 16mm Bore 1.2 m Stroke 8 bar Pressure MY1B16G-1200

Free Delivery in India | Lowest Global Shipping Charges

SMC Double Acting Rodless Pneumatic Cylinder 16mm Bore 1.2 m Stroke 8 bar Pressure MY1B16G-1200



Category Pneumatic Rodless Cylinder Brand SMC Condition New

Specifications

Country of Origin	Japan
Brand	SMC
Body Material	Aluminium Alloy
Maximum Operating Pressure	8 bar
Height	37mm
Length	1.36m
Model	MY1B16G-1200
Width	37mm
Series	MY1B
Maximum Operating Temperature	60°C
Mounting Orientation	Horizontal
Minimum Operating Temperature	5°C
Stroke Length	1.2m
Bore Diameter	16mm
Action Type	Double Acting
Standards/Approvals	2011/65/EU
Connection Thread Standard	Metric
Cushioning Type	Air Cushion
Guide Type	Basic
Port Gender	Female
Port Thread Size	M5 x 0.8

Key Features

Compact rodless cylinder design with one-piece carriage and piston ensuring smooth operation.
Constructed with aluminium alloy body for lightweight and durability.
Equipped with air cushioning for smooth stop and reduced impact.
Suitable for horizontal mounting and equipped with female port gender.
Operates within temperature range of 5°C to 60°C for varied environmental conditions.
Features basic guide type and M5 x 0.8 port thread size for reliable connections.
Includes inner seal belt and outer dust seal band for air pressure maintenance and contaminant protection.
Designed for industrial pneumatic applications requiring precise and compact actuation.

Product Description

SMC MY1B16G-1200 is a double acting rodless pneumatic cylinder engineered with a 16mm bore diameter and 1.2 meter stroke length. It features a robust aluminium alloy body that balances strength and lightness, suitable for various industrial pneumatic automation tasks.

This rodless cylinder design provides a compact footprint compared to traditional rod-style cylinders. The carriage and piston form a single piece that travels along the stroke length, with an inner seal belt maintaining air pressure and an outer dust seal band protecting against external contaminants.

The cylinder incorporates air cushioning to ensure smooth stopping and reduce shock forces in operation, enhancing system longevity. It supports horizontal mounting orientation and includes a female port gender with M5 x 0.8 thread size for ease of integration in pneumatic systems.

Operating parameters include a maximum pressure of 8 bar and temperature range from 5°C to 60°C, enabling performance in standard industrial environments. The basic guide type offers straightforward functionality suitable for many automation needs.

This unit complies with 2011/65/EU standards and is manufactured in Japan, ensuring quality and reliability. It is highly suitable for industrial automation, mechanical machinery, and fluid power applications requiring precise linear actuation over a long stroke length.

Compact rodless cylinder with integrated carriage and piston for low profile design. Strong aluminium alloy body provides durability with minimal weight. Air cushion offers controlled deceleration and impacts reduction. Perfect for horizontal installations with standard metric connections.

Designed to operate efficiently between 5°C and 60°C ambient temperatures. Excellent for manufacturing, automation, and fluid power systems requiring reliable linear motion. Explore EnvMart's comprehensive selection of pneumatic cylinders and actuators for diverse industrial applications.
