Schneider Electric Power Relay, 24V AC Coil, 8A Switching Current, 4PDT RXM4AB3B7

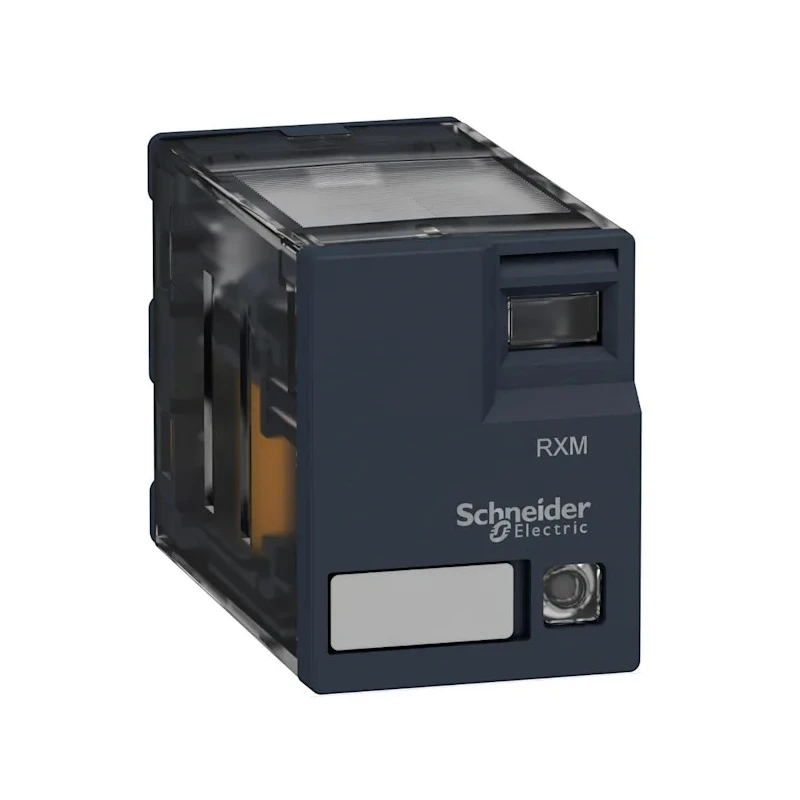

Schneider Electric RXM4AB3B7 Power Relay is a high-quality 4PDT electromechanical relay with a coil voltage of 24V AC and switching current capacity of 8A. It belongs to the Harmony Relay RXM series, engineered for reliable and efficient performance in industrial, commercial, and automation control systems.

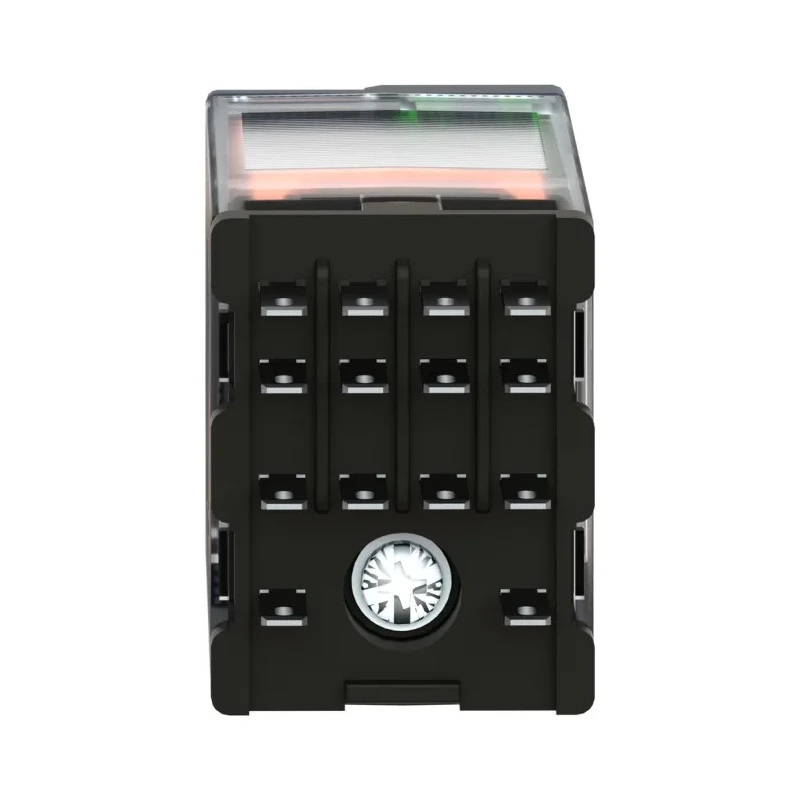

The relay features a plug-in terminal type for convenient installation on RXZE sockets. Its compact form factor includes dimensions of 27 mm in height, 40 mm width, and 21 mm length, with a coil resistance of 180Ω and power rating of 1.2W. An integrated mechanical indicator with an orange flag and a green LED status indicator provide clear visual confirmation of relay operation both day and night.

This 4C/O relay is suitable for use in HVAC equipment, packaging machinery, textile industry applications, motor control centers, PLC interfaces, building automation, and medical equipment. It handles switching voltages of up to 250V AC and 28V DC, with a maximum operating temperature of 55°C and minimum of -40°C to ensure robust operation in varying industrial environments.

The product has silver alloy contacts for superior conductivity and durability. Designed with an IP40 rating and a transparent protective cover, the relay allows easy visual inspection of contact status. Its construction complies with several international standards such as CSA and CE, ensuring safety and regulatory compliance.

To enhance stability against vibrations, the relay can be secured with plastic or metal clamps on the socket, which is sold separately along with protection modules and marking legends. The RXM series relays are widely recognized for their ease of programming, high reliability, and versatility in electrical enclosures and automation systems.

Manufactured in China, the Schneider Electric RXM4AB3B7 relay is offered in increments of 10 units, catering to bulk industrial requirements. Its compact design and premium features make it an ideal choice for augmenting control functionalities in a range of industrial machines and equipment.

Explore more Schneider Electric products and related power relays at EnvMart to fulfill all your industrial automation needs. The relay features an easy plug-in terminal type for simplified installation. It operates reliably within a temperature range of -40°C to 55°C.

Equipped with a silver alloy contact material for enhanced durability. The compact design includes a transparent cover with mechanical indicator and status LED. This Power Relay is suited for control panels, HVAC, motor controls, and industrial automation.

It provides switching power up to 1.5 kVA and handles AC voltage up to 250V. Compatible with RXZE sockets and supports vibration protection with additional clamps. Meets international standards including CSA and CE certifications.

The product is manufactured in China, conforming to global quality norms.
