| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.07mm |
| Length | 1.8mm |
| Model | ESDA8V2-1J |
| Width | 1.45mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 125°C |
| Package Type | SOD-323 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 20V |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 8.2V |
| Maximum Reverse Stand-off Voltage Vwm | 5V |
| Peak Pulse Power Dissipation Pppm | 500W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 25A |
| Maximum Reverse Leakage Current | 500nA |

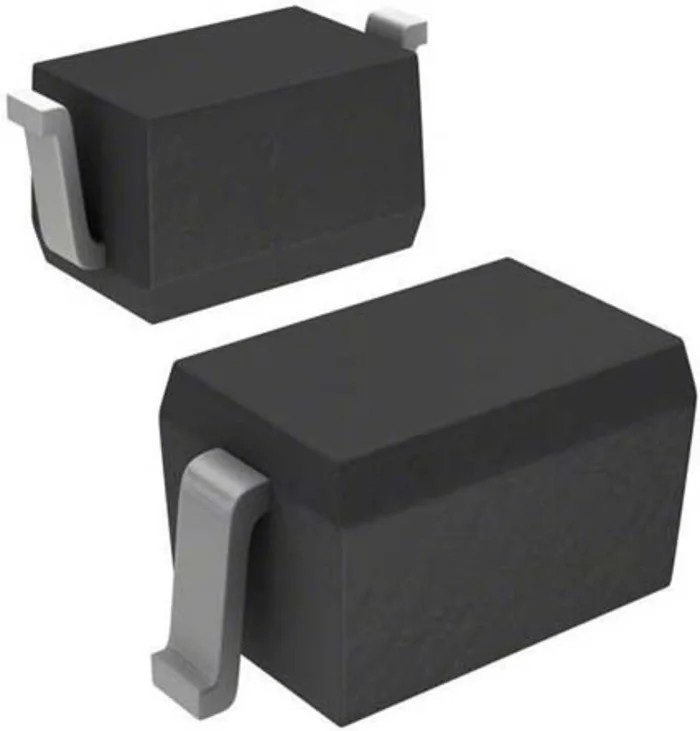

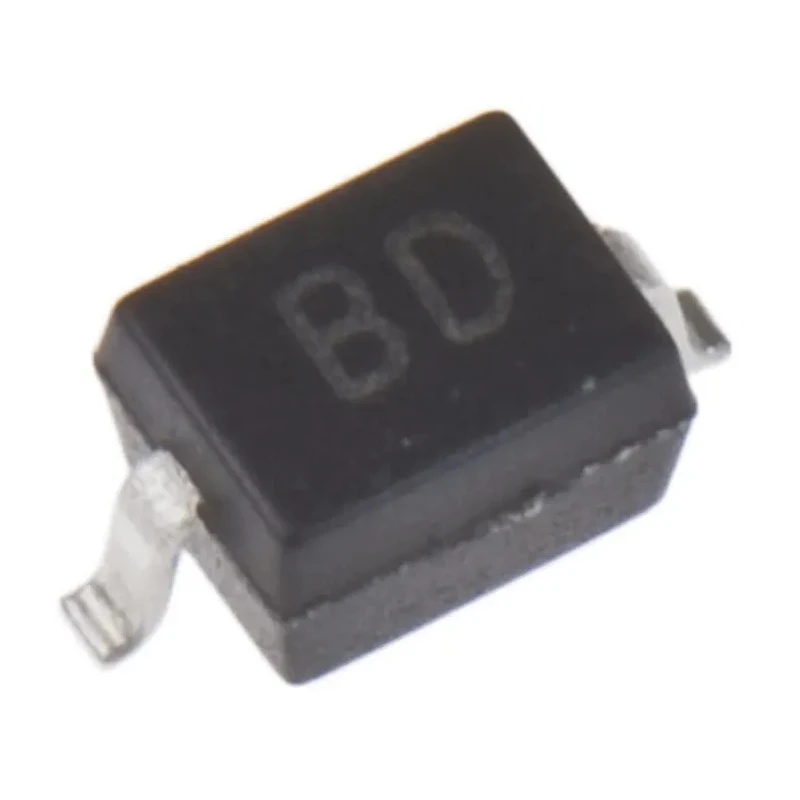

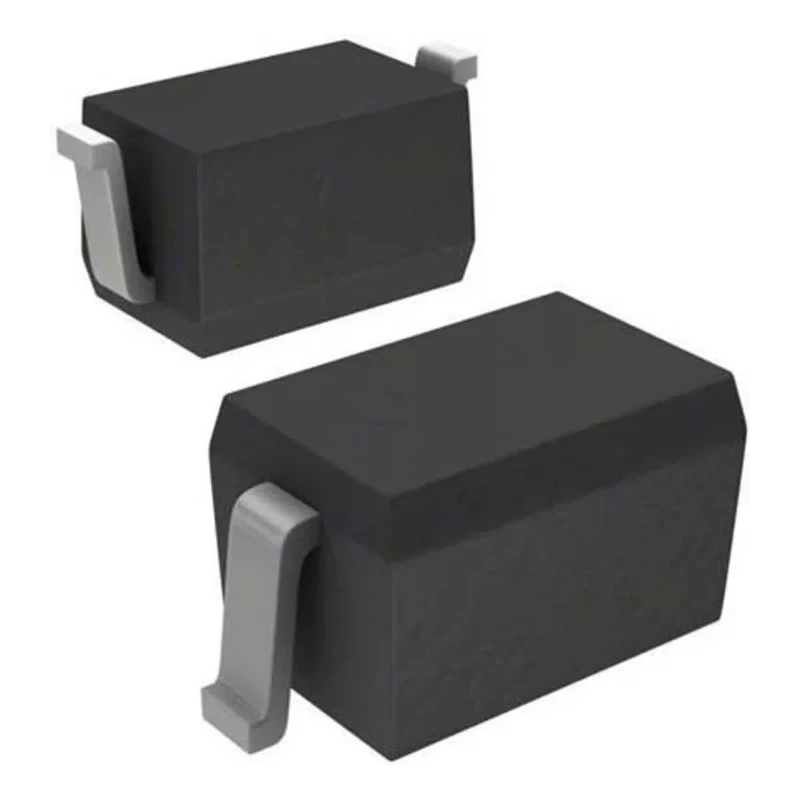

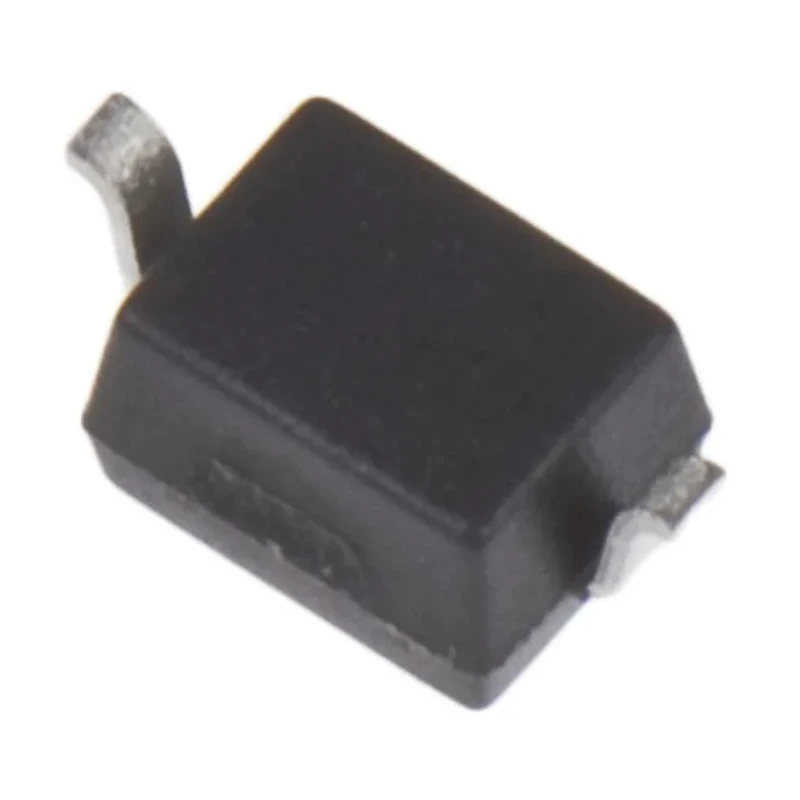

STMicroelectronics ESDA8V2-1J is a high-performance 1-element uni-directional ESD Protection Diode designed for transient voltage suppression in sensitive electronic circuits. Rated for a peak pulse power dissipation of 500 W, this diode features a 2-pin SOD-323 surface mount package ideal for compact PCB layouts.
With a minimum breakdown voltage (Vbr) of 8.2 V and a maximum reverse stand-off voltage (Vwm) of 5 V, the ESDA8V2-1J efficiently protects against electrical overstress by clamping voltage spikes with a low clamping voltage of 20 V. It supports a maximum peak pulse current (Ippm) of 25 A, ensuring robust protection against sudden transient events.
The device operates reliably within a temperature range from -40°C to 125°C, maintaining performance across harsh environmental conditions. Its low maximum reverse leakage current of 500 nA minimizes power loss during normal operation. The diode's dimensions - 1.8 mm length, 1.45 mm width, and 1.07 mm height - enable integration into compact electronic designs.
This ESD Protection Diode is widely used in electronic component assemblies, power and connector systems, semiconductor devices, and discrete semiconductor applications. It is suitable for industrial, commercial, consumer electronics, and manufacturing environments requiring effective ESD and transient voltage protection.
Single element uni-directional diode configuration. Compact 2-pin SOD-323 surface mount package. 500 W peak pulse power dissipation capability. Maximum peak pulse current of 25 A for transient events. Low clamping voltage of 20 V reduces stress on circuits.
Wide operating temperature range from -40°C to 125°C. Very low maximum reverse leakage current of 500 nA. Small form factor dimensions: 1.8 mm x 1.45 mm x 1.07 mm. Ideal for transient voltage suppression and ESD protection in sensitive electronics.
RoHS compliant, supporting environmentally responsible manufacturing. Explore more semiconductor and TVS diode products for protection applications with EnvMart's extensive catalog.
