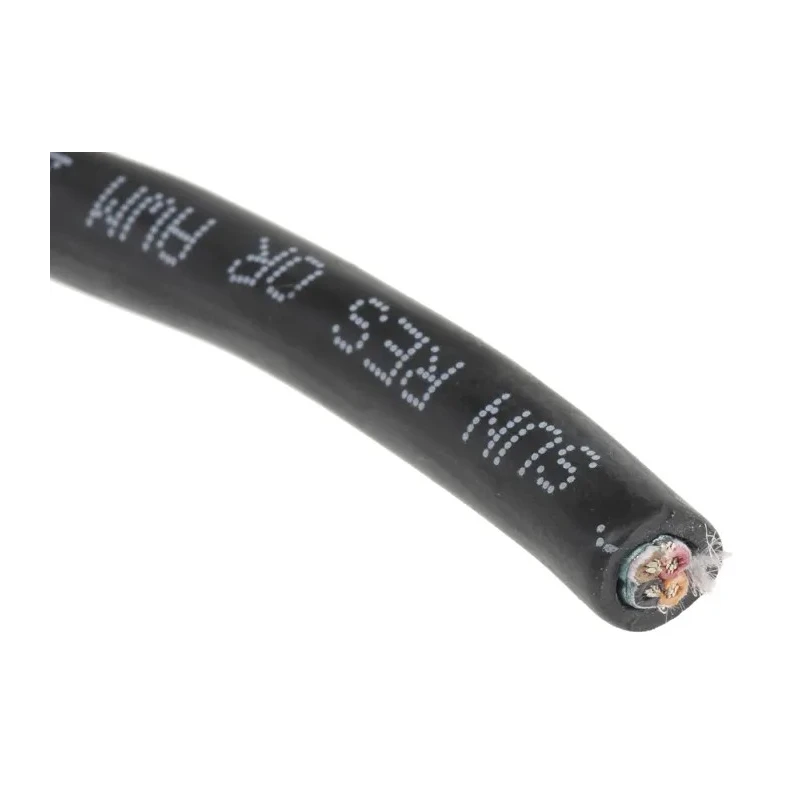

Alpha Wire Xtra-Guard 4 Performance Cable Control Cable, 4 Cores 0.35mm² 22 AWG Screened 300V Thermoplastic 45194 BK005

Alpha Wire 45194 BK005 is a high-performance control cable from the Xtra-Guard 4 Performance Cable range, designed with 4 cores of 0.35mm² (22 AWG) tin copper wire. It features a black thermoplastic elastomer jacket and insulation that provide excellent durability and flexibility, three times more than ordinary PVC cables at both low and high temperatures.

The cable supports a voltage of 300V and operates reliably within a temperature range from -50°C up to 125°C. Its screened construction offers effective protection against electromagnetic interference (EMI), ensuring reliable signal transmission in demanding industrial environments.

The 45194 BK005 cable meets multiple international standards including CSA, CE, and UL, and is Pennsylvania Bureau Deep Mining Safety approved, proving its suitability for harsh mining conditions. It also exhibits good resistance to oil, water, chemicals, and abrasion, making it ideal for a wide variety of sectors such as paper manufacturing, mining, food and beverage processing, petrochemicals, pipeline monitoring, solar and wind power applications, and military systems.

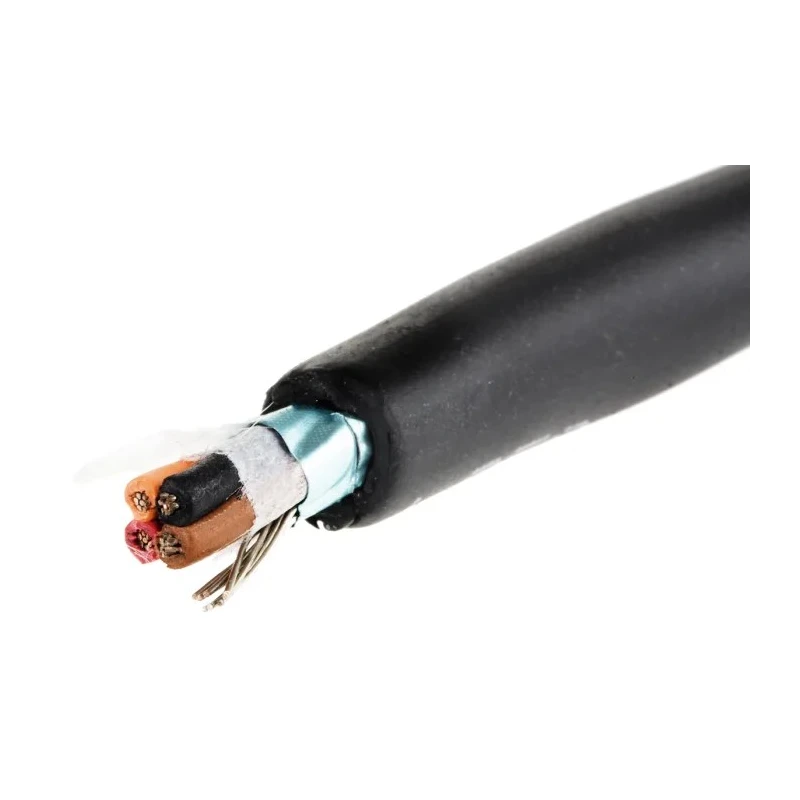

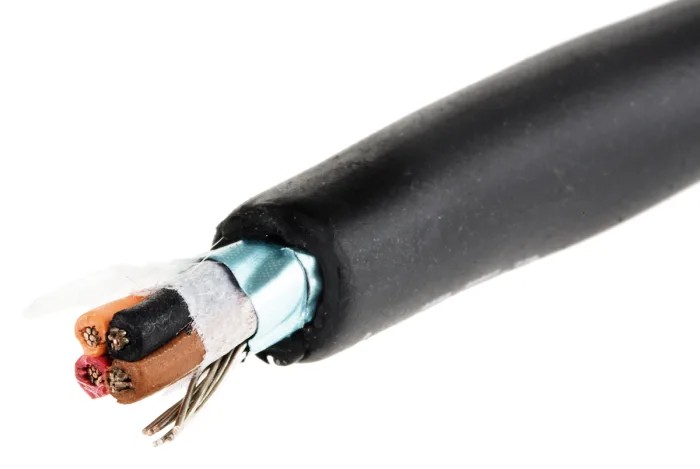

Core strands are finely stranded with 7 x 0.25mm wires per conductor, with a nominal diameter of 0.248 inch (6.30 mm) and a jacket thickness of 0.045 inch (1.14 mm). The cable’s insulation thickness is 0.016 inch (0.41 mm). The flexibility and robustness of this cable make it a preferred choice for extreme temperature and industrial automation uses.

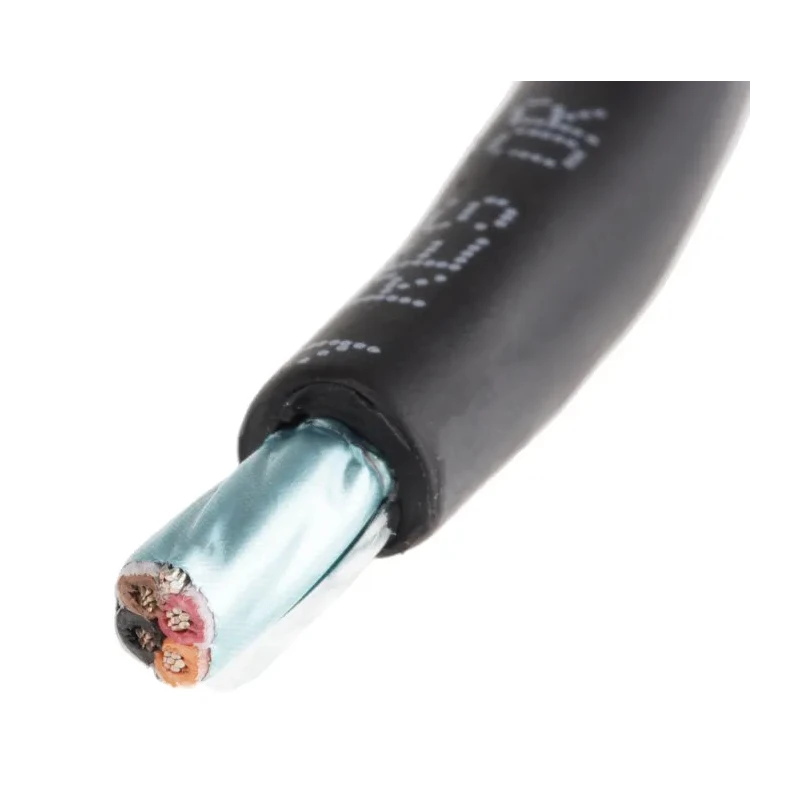

Alpha Wire’s Xtra-Guard 4 cable is particularly advantageous in applications requiring stable and reliable performance under extreme environmental conditions. The foil shielding helps prevent EMI interference, which is crucial for maintaining signal clarity in automated industrial control systems.

Constructed with tin copper wire conductors for enhanced conductivity. Designed with a black thermoplastic elastomer jacket providing flexibility and durability. Supports a voltage rating of 300V suitable for control applications.

Operates within a temperature range of -50°C to 125°C for extreme environment tolerance. Screened for EMI interference protection ensuring signal integrity. Complies with CSA, CE, and UL standards for safety and performance.

Features a foil shield and seven strands per core enhancing mechanical strength. Rated FT1 fire behavior for flame retardance. Suitable for industrial, mining, food processing, petrochemical, pipeline, and military applications.
