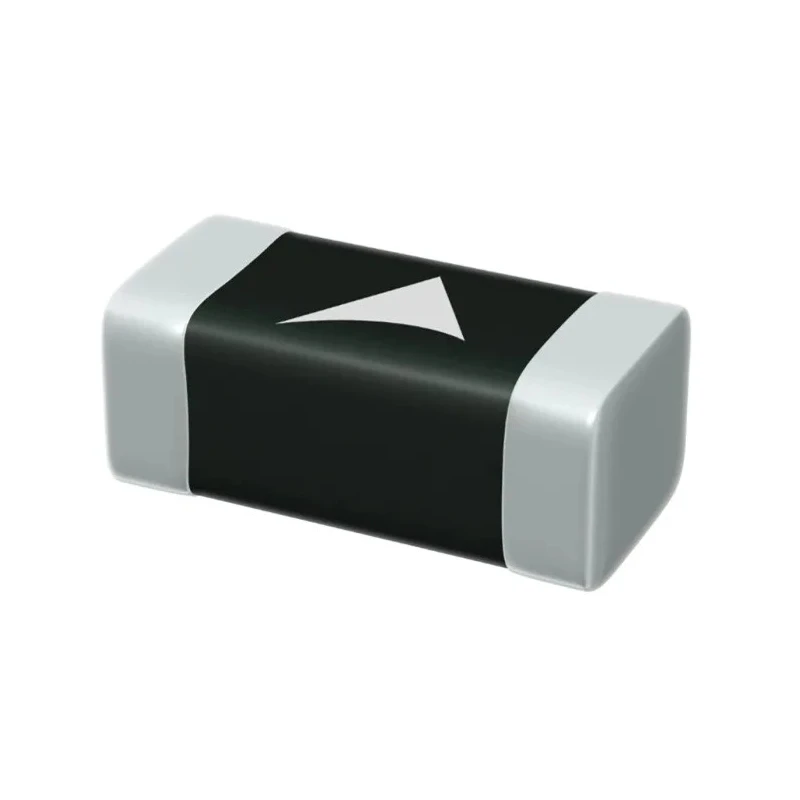

TDK NTC Thermistor, Surface Mount 0402 Package, 0.5 mm Height, 1 mm Length, 0.6 mm Depth B57230V2103F260

Free Delivery in India | Lowest Global Shipping Charges

TDK NTC Thermistor, Surface Mount 0402 Package, 0.5 mm Height, 1 mm Length, 0.6 mm Depth B57230V2103F260



Category Mounting Equipment Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Height	0.5mm
Length	1mm
Model	B57230V2103F260
Depth	0.6mm
Mount Type	Surface
Series	B57230V2
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Standards/Approvals	JEDEC J-STD-020D, IEC 60068, IEC 60539-1
Package/Case	0402
Termination Style	Nickel Barrier
Maximum Power Rating	150mW
Temperature Coefficient Type	NTC
Thermal Time Constant	3s

Key Features

This thermistor features a surface mount 0402 package suitable for compact electronic assemblies.
The device offers a maximum power rating of 150 mW, ensuring steady performance under specified conditions.
Operating temperature range spans from -55°C to 125°C, supporting usage in varied environments.
Nickel barrier termination provides excellent soldering stability and long-term aging resistance.
Thermal time constant of 3 seconds ensures rapid response to temperature changes.
Complies with JEDEC J-STD-020D, IEC 60068, and IEC 60539-1 standards for reliability.
Designed specifically for temperature measurement and compensation in electronic circuits.

Product Description

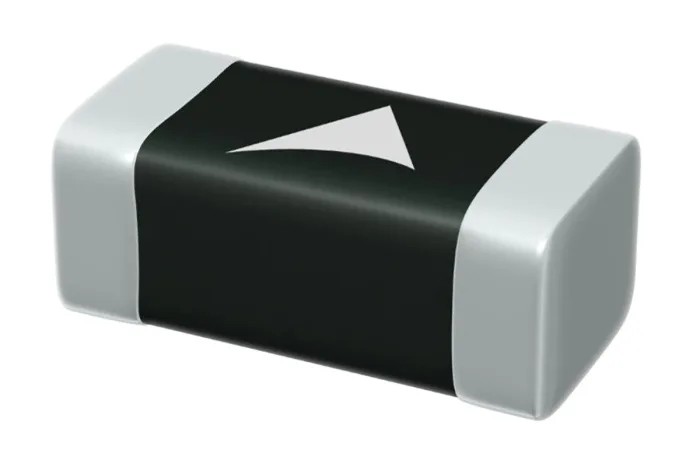

TDK B57230V2103F260 NTC Thermistor is a specialized surface mount device in the 0402 package size, measuring 0.5 mm in height, 1 mm in length, and 0.6 mm in depth. It is engineered for precise temperature measurement and compensation in electronic assemblies, featuring multilayer construction and nickel barrier terminations for enhanced reliability.

This thermistor offers a maximum power rating of 150 mW and operates efficiently in temperatures ranging from -55°C to 125°C, making it suitable for various industrial and automotive applications that require stable thermal sensing.

Its thermal time constant of 3 seconds allows for quick thermal response, critical in sensitive temperature monitoring tasks. The product meets established industry standards including JEDEC J-STD-020D and IEC protocols, assuring quality and long-term durability in harsh conditions.

With its compact 0402 surface mount package, this thermistor is ideal for densely populated circuit boards in consumer electronics, automotive controls, HVAC systems, and other industrial equipment requiring accurate temperature feedback.

This thermistor has multilayer construction with inner electrodes for enhanced performance. Nickel barrier termination ensures superior resistance stability during soldering and excellent aging stability in high-temperature environments.

Complies with automotive and industrial standards to guarantee safety and reliability. Suitable for use in temperature measurement and temperature compensation circuits. Provides dependable performance in compact electronic devices having space constraints.
