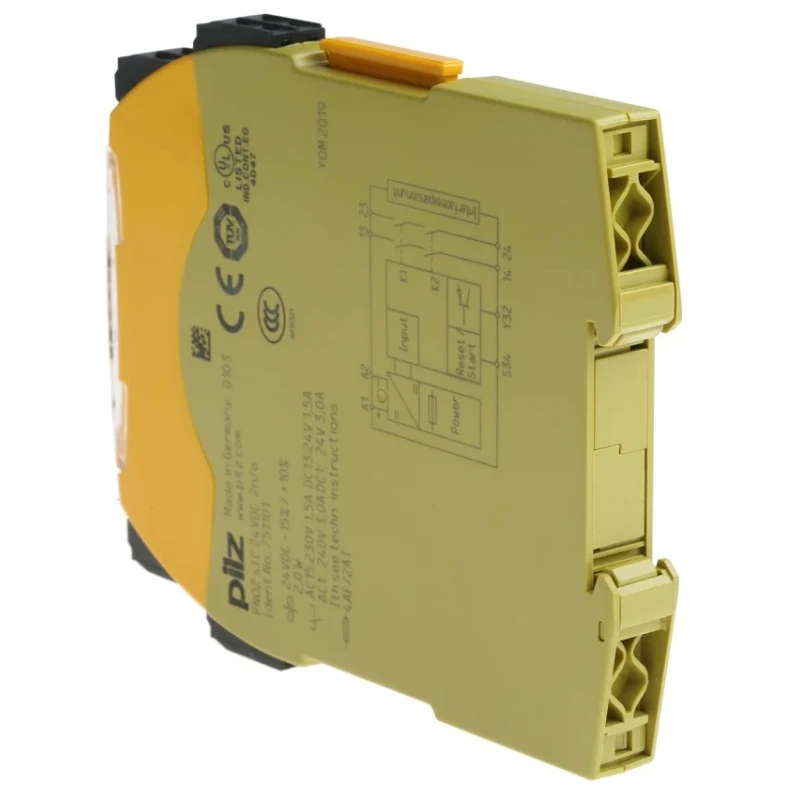

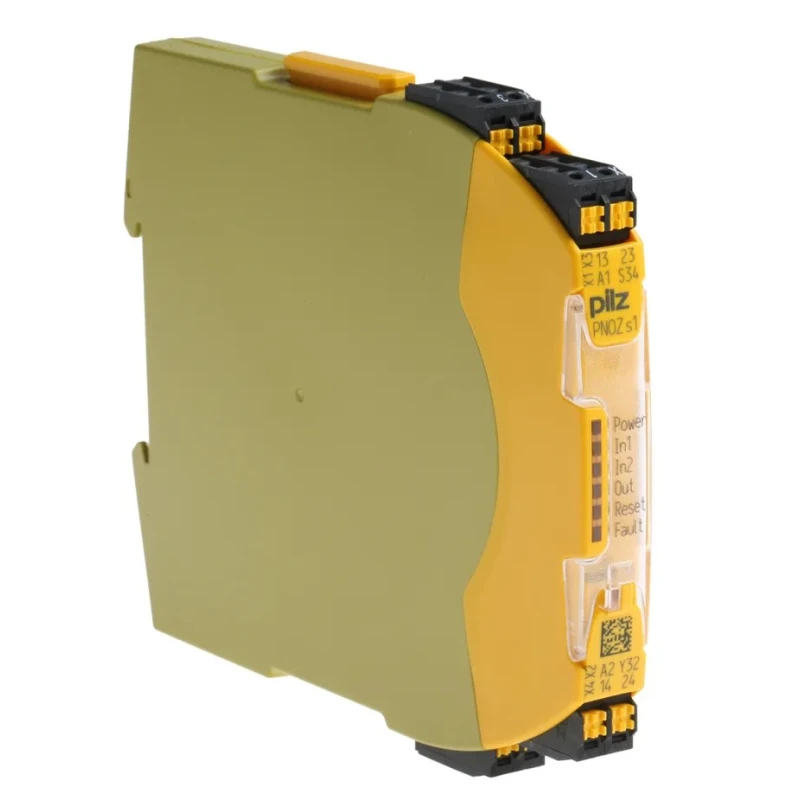

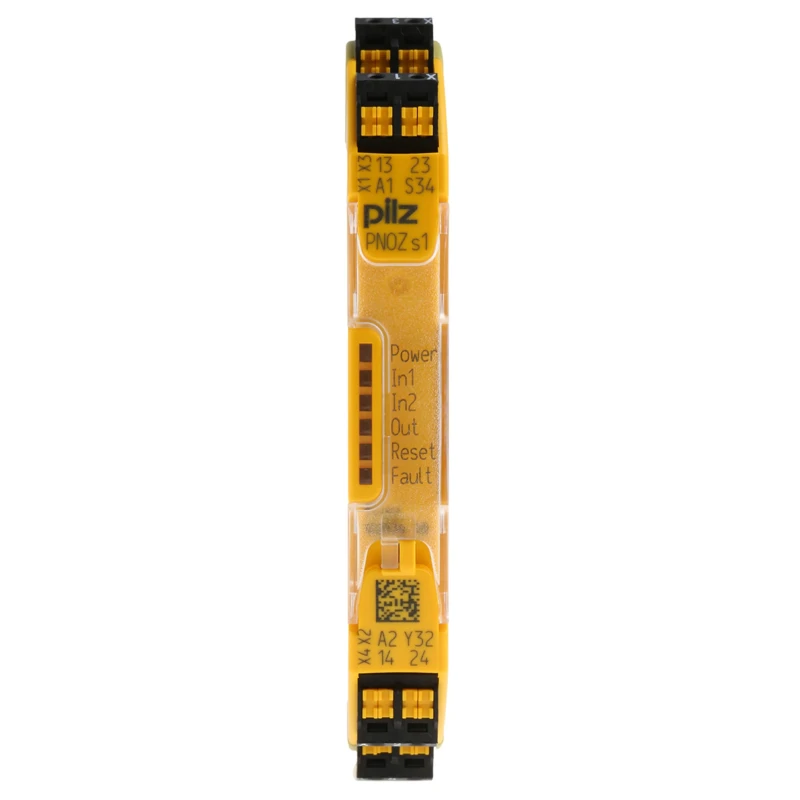

Pilz Safety Relay PNOZ s1 C 24V DC, 2 Safety Contacts, 1 Auxiliary Contact, Plug-in Mount, 2W Power Consumption 751101

Pilz 751101 is a Safety Relay model PNOZ s1 C designed for industrial and automation safety applications. It operates with a 24V DC coil voltage, consuming 2 watts of power, and offers 2 safety contacts alongside 1 auxiliary contact to ensure reliable safety function monitoring.

The relay includes a plug-in mount type with cage clamp terminal connections, facilitating straightforward installation and maintenance. It supports both automatic and manual reset methods, providing flexibility in system control.

This safety relay is rated to switch AC voltages up to 240V and handle contact currents up to 3 amps, suitable for a variety of industrial control circuits. It complies with numerous standards such as EN 61326-3-1, CE marking, cULus listing, TÜV certification, and other important international safety and electrical norms.

Dimensionally compact with a height of 120mm, length of 98mm, and width of 12.5mm, the device fits efficiently in control panels with space constraints. Its housing is constructed from sturdy aluminum alloy with die-cast zinc end caps, offering enhanced shock resistance and robustness.

The IP rating includes IP20, IP54, and IP40, providing protection against solid foreign objects and splashing water, which ensures the device is suitable for various industrial environments. It operates reliably within a temperature range from -10°C up to +55°C.

Applications include safety circuit monitoring in factory automation, machinery safety controls, and other industrial settings requiring Category 3 safety performance. The relay is produced in Germany, guaranteeing consistent quality and adherence to stringent manufacturing standards.

Operates at 24V DC coil voltage with 2W power consumption. Includes 2 safety contacts and 1 auxiliary contact for safety control. Plug-in mounting with cage clamp terminals for easy connection. Supports automatic and manual reset methods.

Meets multiple international standards and certifications. Compact size: 120mm height, 98mm length, 12.5mm width. Durable aluminum alloy housing and die-cast zinc end caps. IP20, IP54, and IP40 protection ratings for diverse environments.

Operating temperature range from -10°C to +55°C. Manufactured in Germany with high quality assurance. Explore a wide variety of Safety Relays and Automation Components at EnvMart for your industrial automation and safety system needs.
