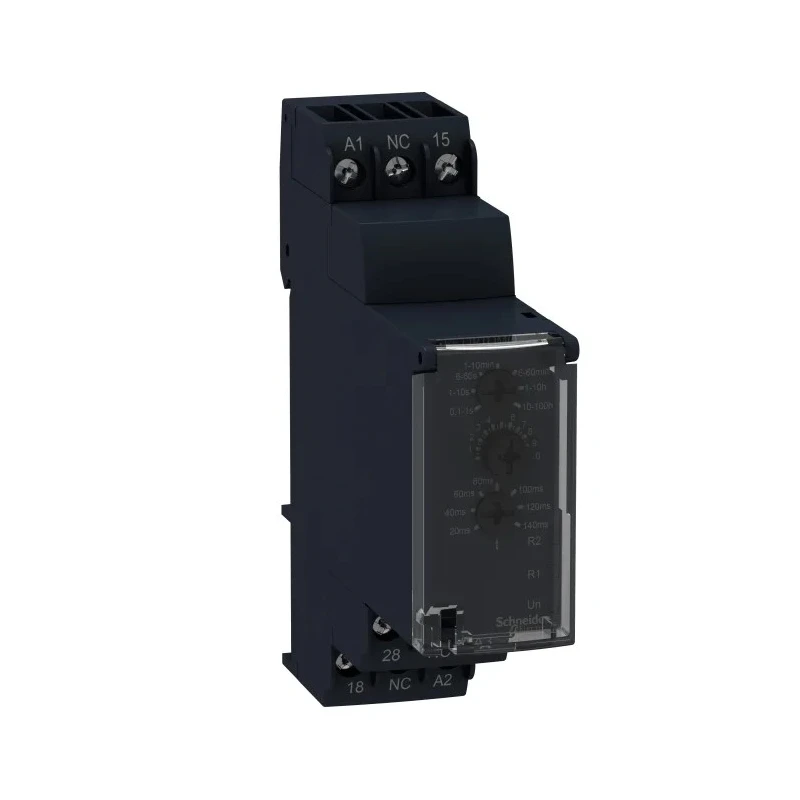

Schneider Electric Harmony Time Series DIN Rail Timer Relay 2-Contact 24 to 240 V dc 230V ac 440V ac RE22R1QMQ

Schneider Electric RE22R1QMQ Harmony Time Series DIN Rail Timer Relay is designed for precise time control in automation and electrical systems. It features a robust construction with self-extinguishing housing material and a compact 22.5 mm profile width for space-efficient mounting on DIN rails. This timer relay supports 2-Contact SPDT configuration suitable for valve control functions.

The relay operates over a broad time range from 0.1 seconds to 100 hours, making it versatile for diverse timing applications. It accepts a wide supply voltage range of 24 to 240 V DC and multiple AC voltages including 230, 240, 380, and 440 V AC. The relay is equipped with a knob for intuitive timing adjustment and LED state indication for easy status monitoring.

With a contact rating of 8A at 250V switching voltage and a repeat accuracy of +/- 0.5% per IEC 61812-1, this device ensures reliable and consistent operation in industrial environments. The operating temperature range of -20°C to 60°C along with IP20 (terminals) and IP40 (housing) ingress protection ratings provide durability and protection against dust and foreign objects.

The relay uses screw terminals for secure electrical connections and supports star-delta mode operation. It complies with various international standards such as IEC 61812-1, EN 61000-6 series, CE, GL, and cULus, ensuring safety and quality assurance.

This product is crafted in Indonesia and is suitable for industrial, commercial, HVAC, and manufacturing automation applications requiring timed switching and control. The compact size (90mm width x 79.5mm height x 22.9mm length) makes it ideal for integration into control panels with limited space.

Operates over a time range of 0.1 seconds to 100 hours for versatile timing applications. Supports both AC and DC voltage supplies for flexible installation. Two-contact SPDT configuration rated at 8 Amps and 250 Volts switching voltage.

Compact 22.5 mm profile with DIN rail mounting and screw terminal connection. Durable self-extinguishing housing material with IP20 and IP40 ingress protection. Wide operating temperature range from -20°C to 60°C for industrial environments.

High repeat accuracy of plus or minus 0.5% conforming to IEC 61812-1 standard. LED state indicator and knob adjustment enhance usability and status monitoring. Suitable for applications involving valve controls and star-delta mode operation.

Complies with relevant IEC, EN, CE, GL, cULus, CCC, RCM, and CSA international standards.
