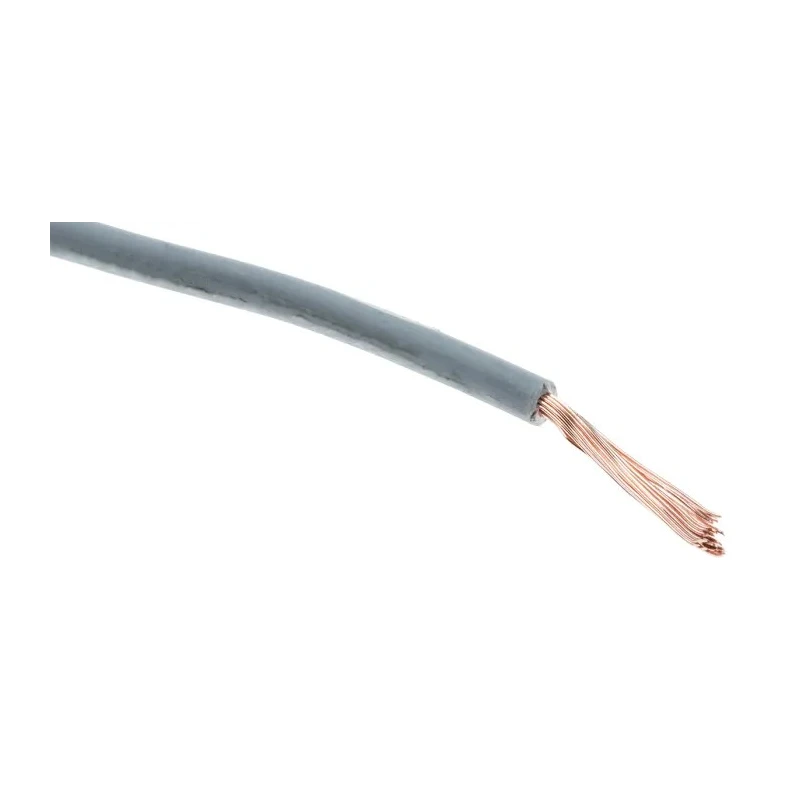

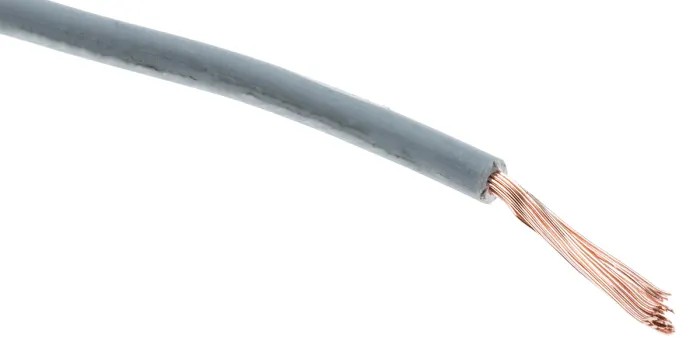

RS PRO Grey 0.33 mm² Hook Up Wire, 22 AWG, 17/0.16 mm Strands, 100m Length, Polyethylene Jacket, 300V, Flame 872-5325
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 300V |
| Brand | RS PRO |
| CROSS SECTIONAL AREA | 0.33mm² |
| Model | 872-5325 |
| Cable Length | 100m |
| Series | RS PRO |
| Outside diameter | 1.58mm |
| Maximum Operating Temperature | 125°C |
| Conductor Material | Tinned Copper |
| Sub Type | Automotive Primary Wire |
| Cable Type | Stranded |
| Minimum Operating Temperature | 0°C |
| Jacket Material | Polyethylene |
| Standards/Approvals | UL 1581, UL 758 |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| American Wire Gauge | 22AWG |
| Number of Strands | 17 |
| Core Strands | 17 x 0.16mm |
| Size of Strands | 0.16mm |
| Tags may indicate the following | 600 V peak - For electronic use only |
Key Features
- Features stranded tinned copper conductor with 17 strands of 0.16 mm diameter each.
- Grey polyethylene jacket provides flame retardant protection.
- Rated for 300 volts with maximum operating temperature of 125°C and minimum of 0°C.
- Complies with UL 1581 and UL 758 standards for safety and quality.
- Suitable for internal wiring of electrical and electronic equipment.
- Flammability tested to VW-1 standard ensuring reliable fire resistance.
- Polyethylene jacket enhances durability and insulation integrity.
- Wire outside diameter measures approximately 1.58 mm for compact routing.
Product Description
RS PRO 872-5325 Hook Up Wire is a high-quality single core cable designed for electrical and electronic internal wiring applications. It features a 0.33 mm² cross-sectional area with a tinned copper conductor consisting of 17 strands each measuring 0.16 mm, providing excellent conductivity and flexibility.
The wire is jacketed with flame-retardant grey polyethylene, delivering durability and resistance to environmental stress. It is rated for 300 volts and can operate safely from 0°C up to 125°C, making it suitable for automotive primary wire and various industrial uses including electrical, manufacturing, and automation systems.
Compliance with UL standards 1581 and 758 ensures strict adherence to safety and performance benchmarks suitable for demanding environments. The cable's flammability has been tested to the VW-1 standard, guaranteeing fire resistance for enhanced safety.
Measuring approximately 1.58 mm in outside diameter, this stranded wire offers easy handling and efficient space utilization in complex wiring assemblies. The polyethylene jacket improves resistance to abrasion and chemical exposure, making it ideal for commercial and industrial wiring tasks.
Stranded tinned copper conductor with 17 strands of 0.16 mm for flexibility and conductivity. Flame retardant grey polyethylene jacket enhances insulation and safety. Compliance with UL 1581 and UL 758 standards for assured quality.
Rated for 300 volts with temperature range from 0°C to 125°C for versatile use. Suitable for internal wiring in automotive, electrical, and electronic equipment. VW-1 flammability test passed for fire resistance. Compact outside diameter of 1.58 mm for easy installation.
Durable polyethylene jacket provides robust protection.
This RS PRO Hook Up Wire is a reliable choice for industrial, automotive, manufacturing, HVAC, and laboratory wiring applications requiring high performance and safety compliance. Explore more in the Electronics & Electricals category on EnvMart for compatible wiring solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cross-sectional area of this hook up wire is 0.33 mm².
It has a maximum operating temperature of 125°C.
This wire is rated for 300 volts.
The outside diameter measures approximately 1.58 mm.
The conductor consists of 17 strands, each measuring 0.16 mm in diameter.
The conductor is made from tinned copper, which provides excellent conductivity and flexibility.
It features a grey polyethylene jacket that is flame retardant and enhances durability.
It complies with UL 1581 and UL 758 standards for safety and quality.
This wire is suitable for internal wiring of electrical and electronic equipment, including automotive and industrial uses.
The minimum operating temperature is 0°C.
This model comes in a length of 100 meters.
It has been tested for flammability to the VW-1 standard, ensuring reliable fire resistance.
