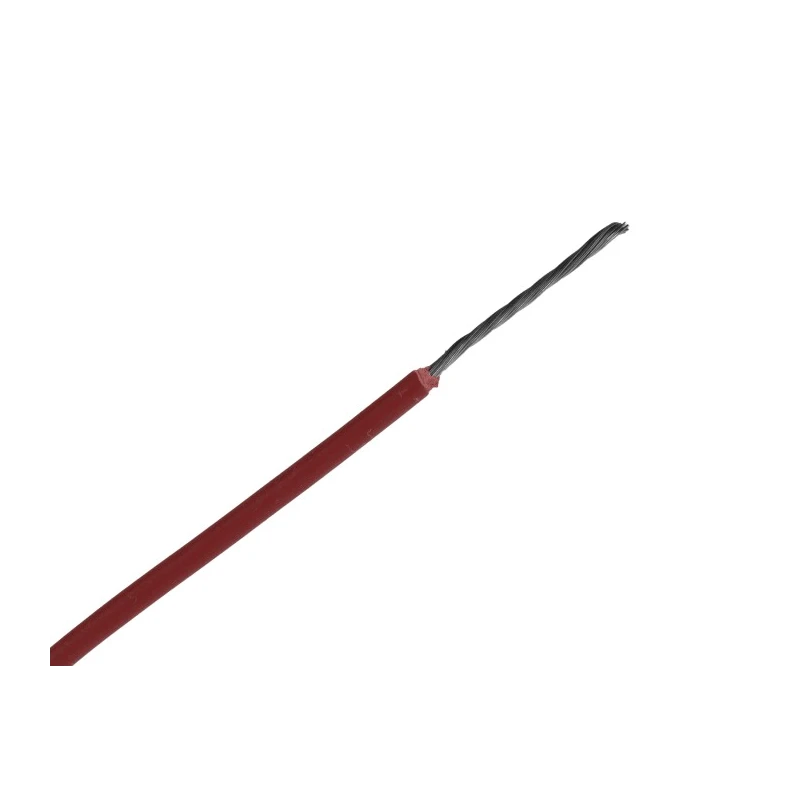

RS PRO Red 0.33 mm² 22 AWG Hook Up Wire, Tinned Copper Stranded Conductor, 17/0.16 mm Strands, 100 m Length 872-5280
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 300V |
| Brand | RS PRO |
| CROSS SECTIONAL AREA | 0.33mm² |
| Model | 872-5280 |
| Cable Length | 100m |
| Series | RS PRO |
| Outside diameter | 1.58mm |
| Maximum Operating Temperature | 125°C |
| Conductor Material | Tinned Copper |
| Sub Type | Automotive Primary Wire |
| Cable Type | Stranded |
| Minimum Operating Temperature | 0°C |
| Jacket Material | Polyethylene |
| Standards/Approvals | UL 1581, UL 758 |
| Jacket Colour | Red |
| Fire Behaviour | Flame Retardant |
| American Wire Gauge | 22AWG |
| Number of Strands | 17 |
| Core Strands | 17 x 0.16mm |
| Size of Strands | 0.16mm |
Key Features
- The wire features a tinned copper stranded conductor with 17 strands, each of 0.16 mm diameter.
- It has a cross-sectional area of 0.33 mm² and a length of 100 meters per reel.
- The insulation is made from polyethylene with a red jacket color and provides flame retardant properties.
- Rated for a maximum operating temperature of 125°C and a voltage rating of 300 V.
- The wire complies with Underwriters Laboratories UL 1581 and UL 758 standards as well as RoHS directives.
- It has an outside diameter of 1.58 mm and an insulation wall thickness of approximately 0.4 mm.
- Designed to operate safely within a temperature range from 0°C up to 125°C.
Product Description
RS PRO 872-5280 is a high-quality Red 0.33 mm² Hook Up Wire featuring a 22 AWG size with 17 strands of 0.16 mm diameter each made from tinned copper. This stranded conductor offers excellent conductivity and resistance to corrosion, ensuring durable and reliable electrical connections within automotive and various industrial equipment.
The wire is insulated with a polyethylene jacket that is flame retardant and meets demanding fire safety requirements, having passed the VW-1 standard. Its thermal insulation capabilities allow it to withstand operating temperatures up to 125°C, making it suitable for harsh environments and continuous use.
This hook up wire is rated for 300 V and complies with UL 1581 and UL 758 safety standards along with Restriction of Hazardous Substances (RoHS) compliance, assuring environmentally safe manufacturing. The cross-sectional area of 0.33 mm² and a total length of 100 meters per reel provides versatility for wiring harnesses, control panels, and automotive primary wire applications.
The consistent construction with an outside diameter of 1.58 mm and a jacket thickness near 0.4 mm provides mechanical robustness and ease of routing in tight assemblies. Its red jacket allows easy identification in electrical circuits.
The wire features a tinned copper stranded conductor with 17 strands, each of 0.16 mm diameter. Cross-sectional area of 0.33 mm² ensures suitable current carrying capacity. Polyethylene insulation provides flame retardant and thermal protection up to 125°C.
Rated for 300 V voltage, compliant with UL 1581 and UL 758 standards. Length of 100 m reel for extended wiring applications. Red jacket color for easy circuit identification. Flame retardant design meets safety requirements for industrial and automotive use.
This wire is ideal for industrial automation, automotive internal wiring, control panel wiring, and general electrical maintenance requiring a reliable, flame retardant insulated wire with excellent conductor properties.
Explore more high-quality wires and cables in the Hook Up Wire category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cross-sectional area of this hook up wire is 0.33 mm².
It is rated for a maximum operating temperature of 125°C.
This wire has a voltage rating of 300 V.
The wire is supplied in a length of 100 meters per reel.
The conductor is made from tinned copper.
It features a polyethylene insulation that provides flame retardant properties.
The conductor consists of 17 strands, each with a diameter of 0.16 mm.
The outside diameter of the wire is 1.58 mm.
This wire complies with UL 1581 and UL 758 standards, as well as RoHS directives.
It is suitable for automotive internal wiring, control panel wiring, and general electrical maintenance.
The minimum operating temperature is 0°C.
The jacket of this wire is red, allowing for easy identification in electrical circuits.
