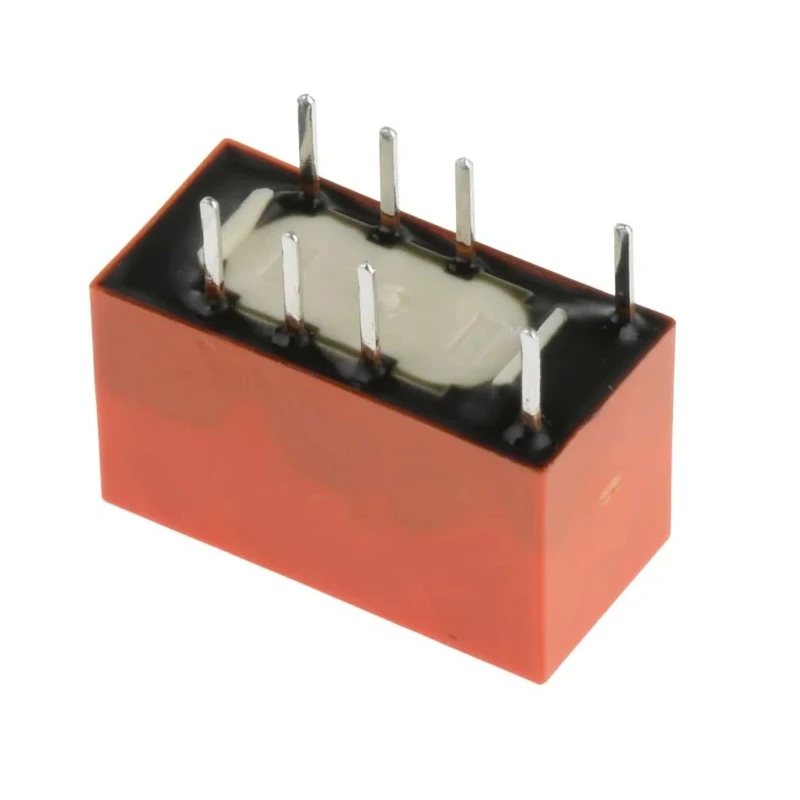

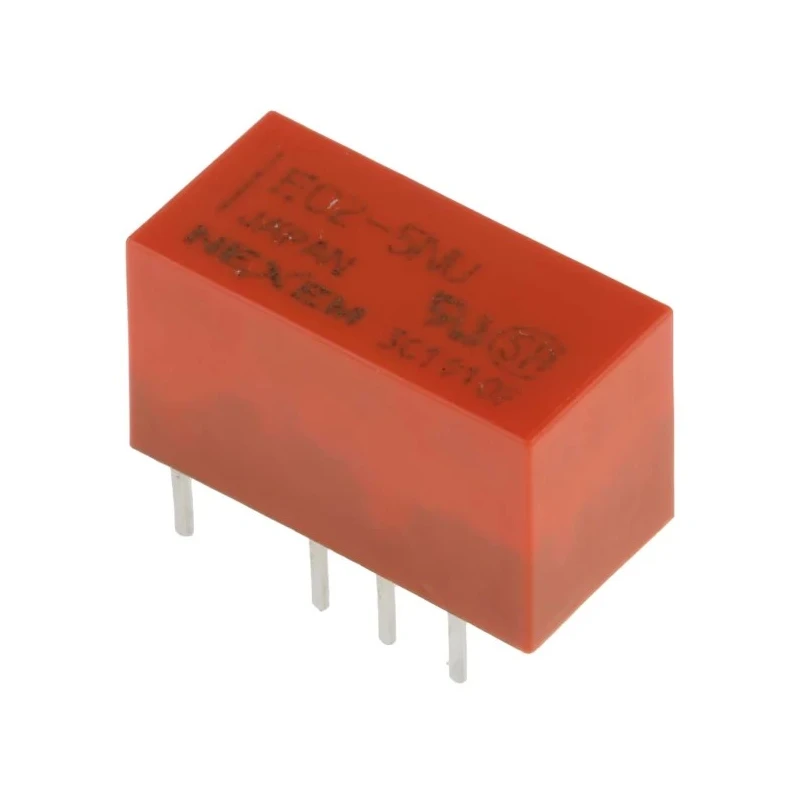

KEMET PCB Signal Relay 5V dc Coil 2A Switching Current DPDT EC2-5NU
Specifications
| Country of Origin | India |
|---|---|
| Brand | KEMET |
| Height | 9.4mm |
| Length | 15mm |
| Model | EC2-5NU |
| Width | 7.5mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | EC2 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 178Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 140mW |
| Switching Power | 200mW |
| Panasonic DIP Signal Relay, 5V dc Coil, 2A, DPDTBrand | Panasonic |
| KEMET PCB Mount Signal Relay, 5V dc Coil, 2A Switching Current, SPDTBrand | KEMET |
Key Features
- The relay is designed for PCB mounting with solder terminal type.
- Operates efficiently on 5V DC coil voltage with low coil power of 140mW.
- Suitable for switching AC voltage up to 250V AC and DC voltage up to 220V DC.
- The compact size with dimensions 15mm length, 7.5mm width, and 9.4mm height.
- Gold-plated contacts ensure low contact resistance and high reliability.
- Coil resistance of 178 ohms contributes to low power consumption.
- Operating temperature range from -40°C to 85°C supports diverse environmental conditions.
- Double pole double throw (DPDT) contact configuration for versatile switching control.
Product Description
KEMET EC2-5NU PCB Signal Relay is a miniature, non-latching relay designed with 5V DC coil voltage and a switching current of 2A, featuring a double pole double throw (DPDT) configuration. This relay is intended for PCB mounting and employs solder terminal type pins, optimizing it for compact electronic circuit integration.
This relay delivers switching capacity up to 250V AC and 220V DC while maintaining a coil power consumption of 140mW supported by a coil resistance of 178 Ohms, ensuring energy-efficient operation. The relay's gold-plated contacts guarantee enhanced conductivity and durability, making it suitable for high-reliability applications.
Dimensions of 15mm length, 7.5mm width, and 9.4mm height make it suitable for space-constrained environments. The device operates reliably within extreme temperature ranges from -40°C to 85°C, allowing use in demanding industrial and telecommunications settings. Its lightweight build minimizes impact on PCB design constraints.
The EC2-5NU signal relay is ideal for electronic switching systems, PBX, terminal equipment, telephone systems, and other automation control applications requiring compact and efficient switching devices. Its double coil latching and high breakdown voltage capabilities contribute to stable performance and protection in circuits.
PCB mount non-latching Signal Relay with DPDT contacts. Operates on 5V DC coil voltage with 2A switching current capacity. Gold-plated contacts for improved conductivity and long life. Low power coil rated at 140mW with 178Ω coil resistance.
Compact dimensions for minimal PCB footprint. Wide operating temperature range from -40°C to 85°C. Suitable for telecommunications and electronic switching applications. Certified RoHS compliant ensuring environmental safety.
High breakdown voltage supports 1.5kVAC at open contacts.
This product is a reliable choice for industrial, laboratory, electronic manufacturing, telecommunications, and automation signal switching needs. Explore more KEMET components and related relays on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The KEMET EC2-5NU relay has a switching current capacity of 2A.
This model has dimensions of 15mm in length, 7.5mm in width, and 9.4mm in height.
The relay operates on a coil voltage of 5V DC.
It can switch AC voltage up to 250V and DC voltage up to 220V.
The KEMET EC2-5NU is designed for PCB mounting with solder terminal type pins.
The coil power consumption is rated at 140mW.
The relay operates reliably within a temperature range of -40°C to 85°C.
This relay features a double pole double throw (DPDT) contact configuration.
The contacts of this relay are made from gold-plated material, which enhances conductivity.
Yes, the KEMET EC2-5NU relay is certified RoHS compliant, ensuring environmental safety.
The coil resistance is 178 ohms, contributing to its low power consumption.
This relay is suitable for electronic switching systems, PBX, terminal equipment, and automation control applications.
