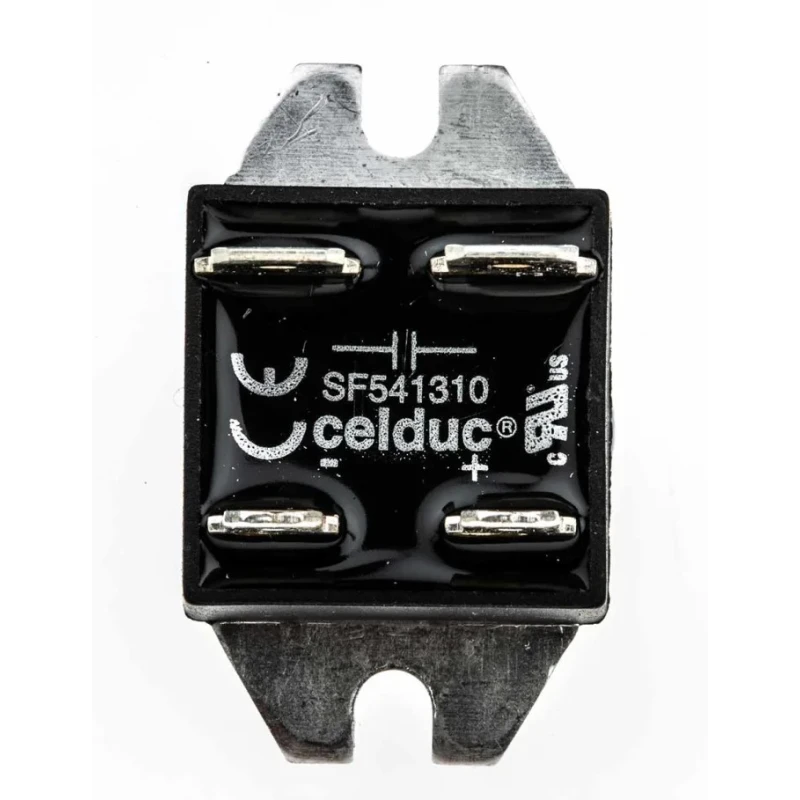

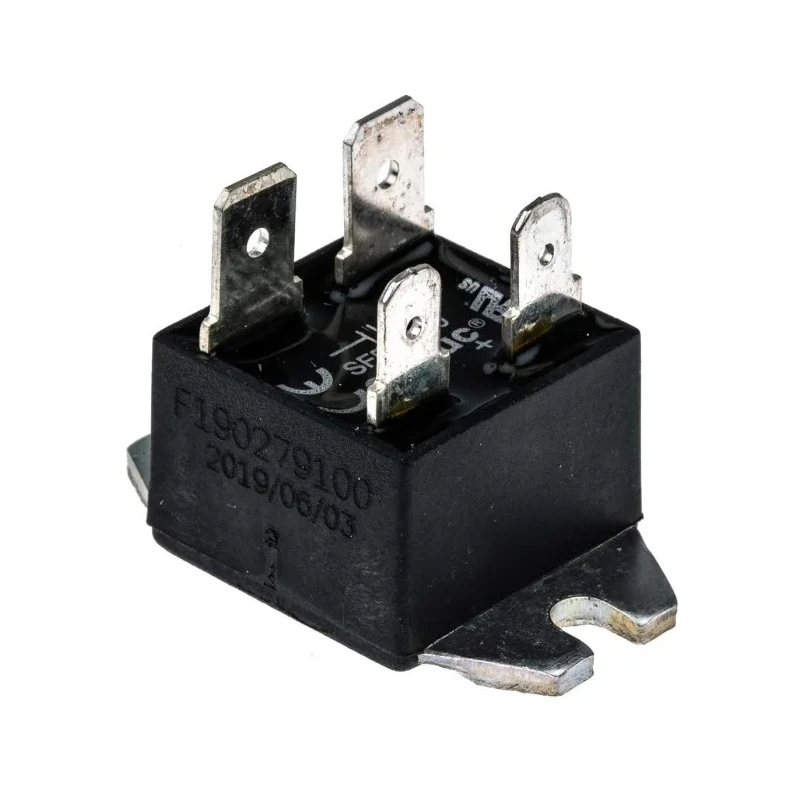

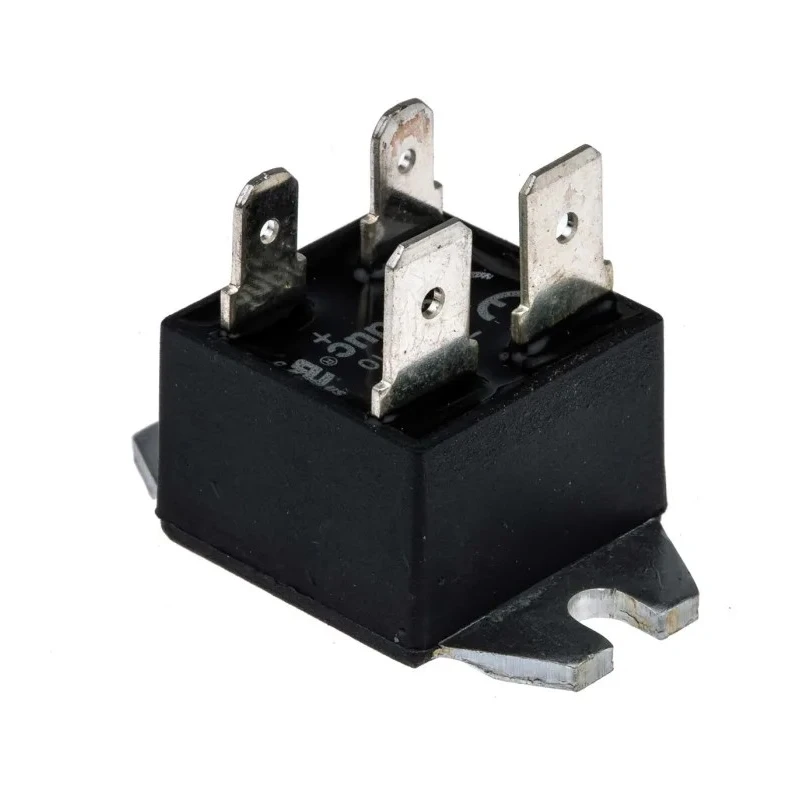

Celduc SF-SP7-SP8 Series Solid State Relay 10 A Load 280 Vrms Load 30V dc Control DIN Rail Mount SP7-SP8

Celduc SP7-SP8 Series Solid State Relay is a medium-power relay designed for reliable switching performance in various industrial applications. With a maximum load current rating of 10 A and a load voltage capability of 280 Vrms, it supports robust AC load handling. The relay features zero cross switching, which reduces electrical noise and extends the operational life of connected equipment.

This DIN rail mountable relay is equipped with FASTON terminals for easy and secure electrical connections. It operates efficiently within a wide control voltage range of 4V dc minimum up to 30V dc maximum, making it compatible with various control systems. Operating temperature tolerance spans from -40°C to 90°C, ensuring stable performance under varying environmental conditions.

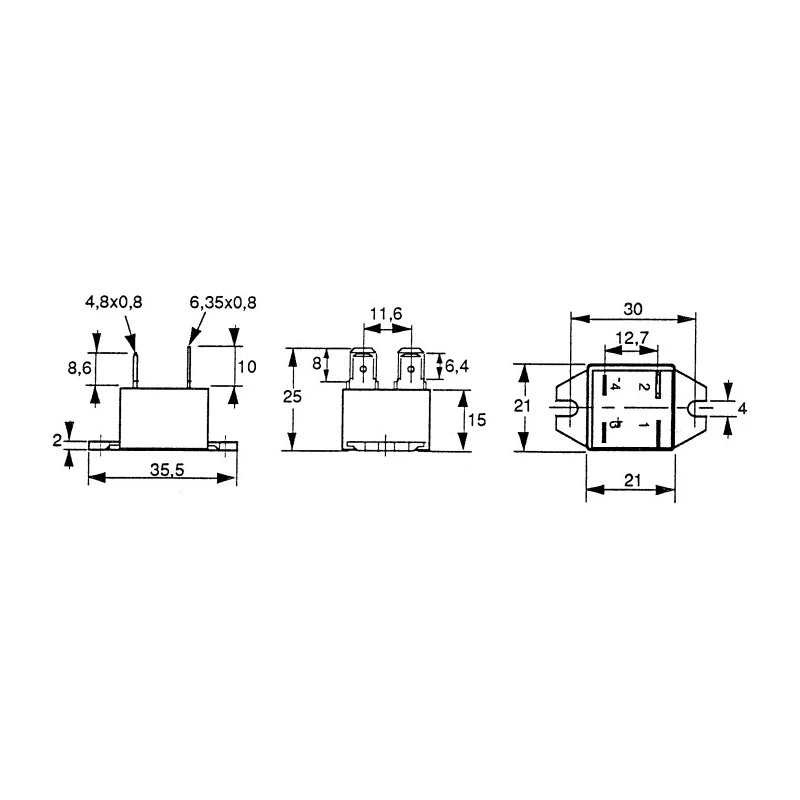

The relay has a compact form factor measuring 35.5 mm in length, 21.4 mm in width, and 15 mm in height, allowing it to fit neatly into control panels and automation systems. With an IP20 ingress protection rating, it is suitable for many industrial and commercial electrical installations. It maintains a low off state leakage current of 3 mA, minimizing energy loss when the relay is not active.

Manufactured in France, this solid state relay conforms to industry standards including UR approvals, guaranteeing quality and safety compliance. Its reliable switching capabilities make it well suited for automation, industrial machinery, HVAC, and manufacturing control systems.

Rated for a maximum load current of 10 A to ensure reliable performance. Designed for DIN rail mounting for easy installation and integration. Supports a load voltage range up to 280 Vrms for versatile AC applications. Control voltage operates between 4V dc minimum and 30V dc maximum.

Features zero cross switching to enhance switching performance and reduce electrical noise. Constructed with FASTON type terminals for secure and quick connections. Operates safely in temperature conditions from -40°C up to 90°C.

Low off state leakage current of 3 mA to minimize power consumption. Compact dimensions with length 35.5 mm, width 21.4 mm, and height 15 mm. Robust design with IP20 protection rating suitable for industrial environments.
