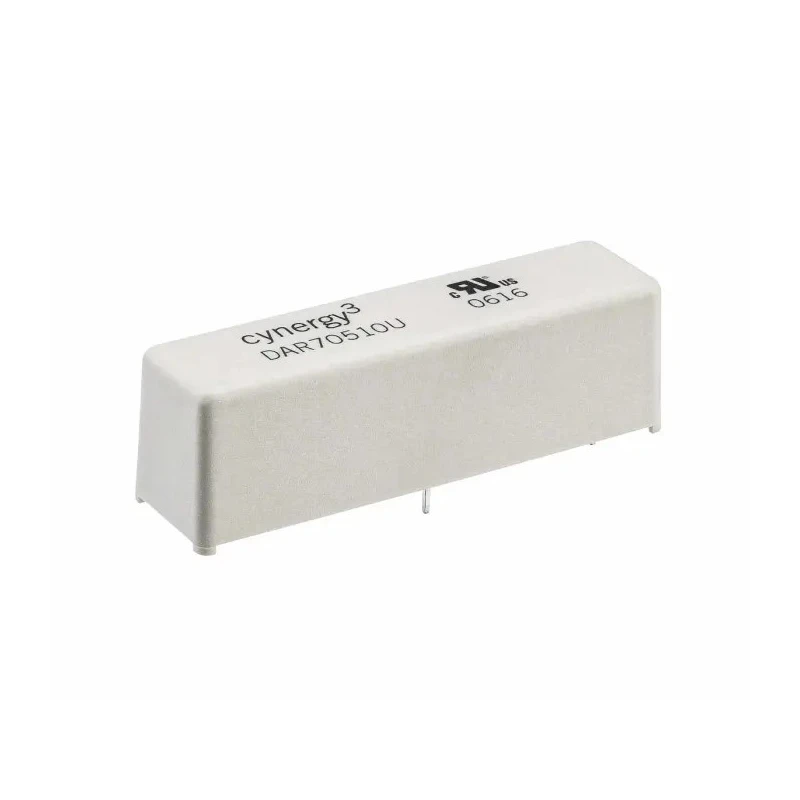

Cynergy3 PCB Reed Relay 12V DC Coil 50W Power SPST Contact Configuration 7000V DC Max Isolation
Specifications
| Country of Origin | India |
|---|---|
| Brand | Cynergy3 |
| Height | 18.5mm |
| Length | 60mm |
| Model | Cynergy3 |
| Operating Time | 3ms |
| Mount Type | PCB |
| Series | DAT |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -20°C |
| Terminal type | PCB Terminal |
| Contact Resistance | 250mΩ |
| Standards/Approvals | UL |
| Coil Resistance | 150Ω |
| Coil Power | 50W |
| Switching Power | 50W |
| Isolation Coil To Contact | 17kV |
Key Features
- Features high isolation voltage up to 17kV between coil and contacts.
- Designed for PCB mounting with PCB terminal type for ease of integration.
- Operates reliably between -20°C and 70°C ambient temperatures.
- Offers fast response time with an operating time of 3 milliseconds.
- Contact resistance is low at 250 milliohms ensuring efficient current flow.
- Maximum switching power and coil power both rated at 50 watts.
- The relay does not latch and supports up to 2A maximum switching current.
- Suitable for industrial, medical, test equipment, and high voltage power supply applications.
Product Description
Cynergy3 DAT71275U PCB Reed Relay features a 12V DC coil with a coil resistance of 150 Ω and coil power rating of 50W. It utilizes a Single Pole Single Throw (SPST) contact configuration, providing reliable switching performance with a maximum DC isolation voltage of 7000V and maximum coil to contact isolation of 17kV.
This relay supports PCB mounting with PCB terminals for secure installation and is designed for demanding industrial applications including medical devices such as cardiac defibrillators, test instruments, and high voltage power supplies. It is built to ensure high reliability through the use of high vacuum reed switches with rhodium contacts that maintain low contact resistance (250 mΩ).
The relay operates effectively within an ambient temperature range of -20°C to 70°C and has a rapid operating time of just 3 milliseconds, making it suitable for quick response requirements.
Its dimensions - 60 mm in length and 18.5 mm in height - enable compact assembly within electronic assemblies and control panels. High isolation voltage up to 17kV between coil and contacts for enhanced safety. PCB mountable with robust PCB terminals for secure electrical and mechanical connection.
Low contact resistance ensures efficient electrical performance. Fast operating time of 3 milliseconds for rapid switching operations. Temperature rating ranges from -20°C to 70°C to accommodate various environments. Non-latching design suitable for applications requiring quick release.
Supports switching power of 50 watts and maximum current of 2A DC load.
This Cynergy3 Reed Relay is ideal for use in industrial control systems, instrumentation, measurement equipment, telecommunications, and other applications requiring high isolation and reliable switching performance. Its UL standard compliance underlines its suitability for commercial and industrial deployment. Browse the Electronics & Electricals section for additional relay and signal conditioning components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay features a maximum isolation voltage of 7000V DC between the coil and contacts, and up to 17kV DC isolation for coil to contact.
It operates effectively within an ambient temperature range of -20°C to 70°C.
This relay utilizes a Single Pole Single Throw (SPST) contact configuration.
The coil resistance is rated at 150 Ω.
The operating time is 3 milliseconds, allowing for rapid switching operations.
The maximum switching power is rated at 50 watts.
It supports PCB mounting with PCB terminals for secure installation.
The contact resistance is low at 250 milliohms, ensuring efficient current flow.
The relay measures 60 mm in length and 18.5 mm in height.
It is suitable for industrial control systems, medical devices, test instruments, and high voltage power supplies.
Yes, it is compliant with UL standards, making it suitable for commercial and industrial deployment.
The relay supports a maximum switching current of 2A.
