Cynergy3 PCB Reed Relay 24V dc Coil SPNC Contact Configuration 7000V dc Max Isolation

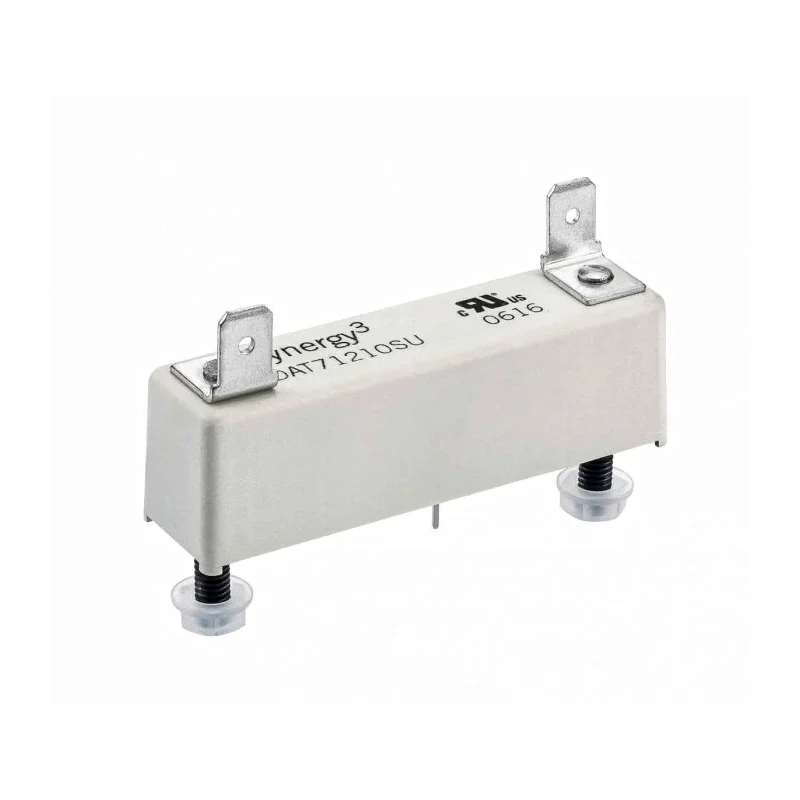

Cynergy3 DBT72475SU PCB Reed Relay features a 24V dc coil with an SPNC contact configuration designed for high-voltage applications up to 7000V dc maximum. Built with high vacuum reed switches incorporating Tungsten or Rhodium contacts, it achieves very high isolation voltages up to 17kV coil to contact, making it suitable for critical industrial and medical applications.

This relay supports reliable operation within minimum and maximum temperatures of -20°C to 70°C, with a fast operating time of 2 milliseconds. Its 50W coil power and 925Ω coil resistance ensure efficient energy usage. The contact resistance is a low 250mΩ, providing dependable electrical connectivity for switching tasks up to 50W power.

Designed to mount on printed circuit boards, it uses PCB terminals and retains compact dimensions of 60mm in length and 18.5mm in height. Though not latching, it is suitable for applications requiring momentary switching. It meets UR standards, ensuring high reliability and safety.

Applications include high-reliability equipment such as cardiac defibrillators, test instruments, high-voltage power supplies, and other industrial and laboratory uses where high isolation and precise switching are essential.

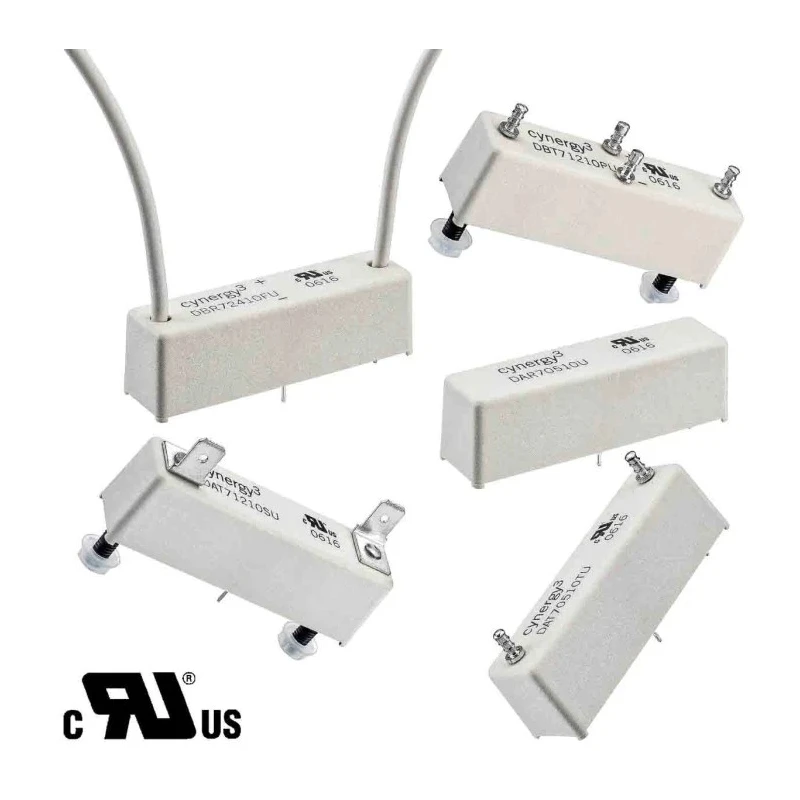

The relay supports multiple connection options including PCB mount, solder turret, flying leads, and 0.25 inch spade terminals for high voltage connectivity. The product is manufactured in the United Kingdom, assuring quality manufacturing standards.

High isolation coil to contact voltage of 17kV ensures safe operation. Coil power consumption is 50W with resistance of 925Ω for efficient energy use. Fast operating time of 2 milliseconds supports rapid switching tasks.

Maximum switching power and coil power both rated at 50W. Operating temperature range from -20°C to 70°C for broad environmental use. Low contact resistance of 250mΩ provides reliable electrical connectivity. Constructed for PCB mounting with PCB terminal type for secure installation.

Latching feature is not included, designed for momentary switching use. Compact dimensions of 60mm length and 18.5mm height for space-efficient integration. Compliance with UR standards for quality assurance.

This Cynergy3 PCB Reed Relay DBT72475SU ensures dependable electronic switching performance in industrial, laboratory, and high-voltage power contexts. Explore more high-quality relays and contactors at EnvMart to suit your technical and application requirements.
