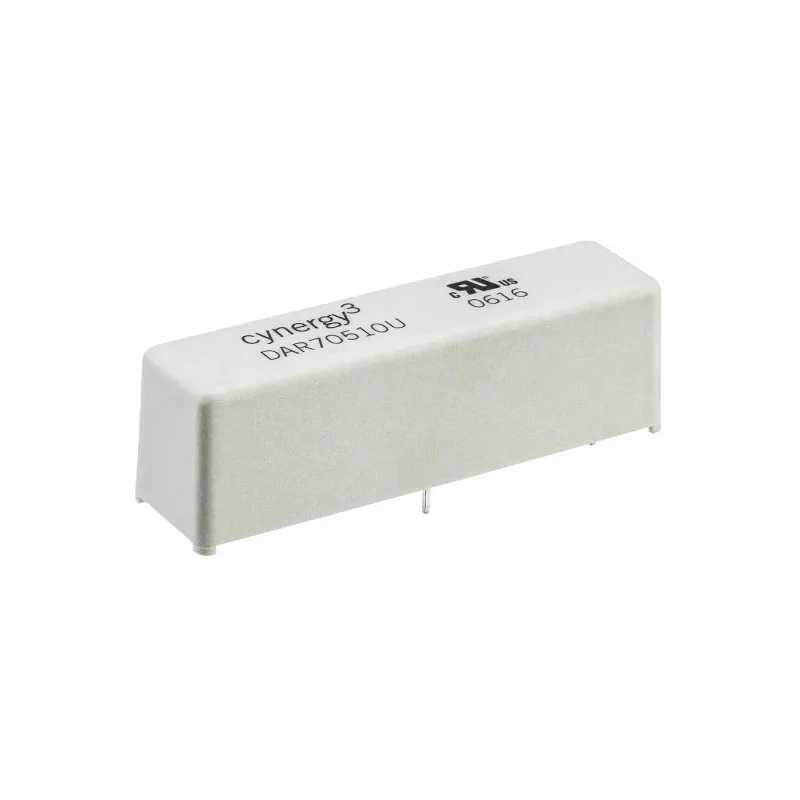

Cynergy3 PCB Reed Relay 24V DC Coil, SPST Contact, 1000V DC Max, 3A Max, 780 Ω Coil Resistance
Specifications
| Country of Origin | India |
|---|---|
| Brand | Cynergy3 |
| Height | 18.5mm |
| Length | 60mm |
| Model | Cynergy3 |
| Operating Time | 3ms |
| Mount Type | PCB |
| Series | DAR |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -20°C |
| Terminal type | PCB Terminal |
| Contact Resistance | 50mΩ |
| Standards/Approvals | UL |
| Coil Resistance | 780Ω |
| Coil Power | 50W |
| Switching Power | 50W |
| Isolation Coil To Contact | 17kV |
Key Features
- Supports a maximum voltage of 1000V DC and maximum current rating of 3A.
- Coil resistance is 780 ohms ensuring stable coil power consumption.
- Operates within a temperature range from -20°C to 70°C with fast 3ms operating time.
- Packaged with PCB terminal mount suitable for secure printed circuit board mounting.
- High isolation voltage of 17kV coil to contact prevents interference and enhances reliability.
- Compact form factor with length 60mm and height 18.5mm fits tight PCB layouts.
- Contact resistance is low at 50 milliohms, optimizing signal integrity.
- Non-latching design offers quick release and precise switching for test equipment and medical applications.
Product Description
Cynergy3 DAR72475U PCB Reed Relay features a 24V DC coil voltage and a Single Pole Single Throw (SPST) contact configuration, engineered for industrial, laboratory, and medical equipment requiring reliable signal switching and high isolation voltage.
This PCB mounted relay is designed with a coil resistance of 780 ohms and coil power of 50W, balancing performance with energy efficiency. It supports a maximum switching voltage of 1000V DC and can carry a maximum current of 3A, suitable for a variety of high voltage control and signal conditioning circuits.
The relay operates effectively over a temperature range of -20°C to 70°C, with an operating time of just 3 milliseconds, making it suitable for time-sensitive applications.
The device boasts a high isolation voltage of up to 17kV between coil and contacts, achieved using high vacuum reed switches with Rhodium or Tungsten contacts. This construction ensures low contact resistance of 50 milliohms and excellent electrical characteristics needed in high reliability applications such as cardiac defibrillators, test instruments, and high voltage power supplies.
The form factor includes a PCB terminal for easy mounting onto printed circuit boards, dimensions being 60mm in length and 18.5mm in height, allowing compact integration into electrical assemblies.
Supports high isolation and switching power for reliable performance. Suitable for electronic, industrial, and medical device manufacturing. Non-latching contacts suitable for quick switching cycles. Complies with UL standards ensuring operational safety and quality.
The Cynergy3 DAR72475U PCB Reed Relay is a durable and precise solution for advanced control and automation tasks, offering performance and longevity in demanding electrical environments. Explore the extensive range of relays and contactors available at EnvMart for your industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a maximum voltage of 1000V DC and a maximum current rating of 3A.
The coil resistance is 780 ohms, ensuring stable coil power consumption.
It operates effectively within a temperature range of -20°C to 70°C.
The operating time is just 3 milliseconds, making it suitable for time-sensitive applications.
It features a Single Pole Single Throw (SPST) contact configuration.
The contact resistance is low at 50 milliohms, optimizing signal integrity.
This model is designed for PCB terminal mounting, suitable for secure installation on printed circuit boards.
It has a length of 60mm and a height of 18.5mm, allowing for compact integration into electrical assemblies.
It boasts a high isolation voltage of up to 17kV between the coil and contacts, enhancing reliability.
It complies with UL standards, ensuring operational safety and quality.
It is suitable for industrial, laboratory, and medical equipment requiring reliable signal switching and high isolation voltage.
The coil power rating is 50W, balancing performance with energy efficiency.
