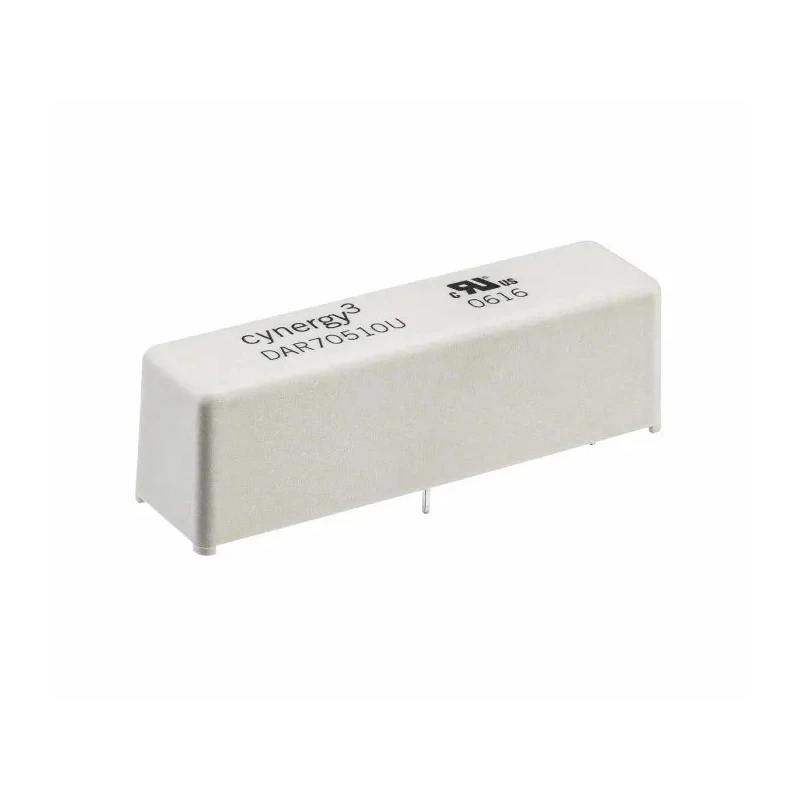

Cynergy3 PCB Reed Relay, 12V DC Coil, SPST Contact, 7000V DC Isolation, 2A Max, 150 Ω Coil Resistance
Specifications
| Country of Origin | India |
|---|---|
| Brand | Cynergy3 |
| Height | 18.5mm |
| Length | 60mm |
| Model | Cynergy3 |
| Operating Time | 3ms |
| Mount Type | PCB |
| Series | DAT |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -20°C |
| Terminal type | PCB Terminal |
| Contact Resistance | 250mΩ |
| Standards/Approvals | UL |
| Coil Resistance | 150Ω |
| Coil Power | 50W |
| Switching Power | 50W |
| Isolation Coil To Contact | 17kV |
Key Features
- Operates with a 12V DC coil delivering 50W coil power.
- SPST contact type supporting a maximum switching current of 2A.
- High isolation voltage up to 7000V DC for enhanced safety.
- Low coil resistance of 150 Ω ensures efficient operation.
- Compact dimensions with 60mm length and 18.5mm height.
- UL certified meeting industry standard reliability and safety.
- Designed for PCB mounting with PCB terminal type.
- Wide operating temperature range from -20°C to 70°C.
Product Description
Cynergy3 DAT71205U PCB Reed Relay features a 12V DC coil with SPST contact configuration, designed for precise switching in electronic and electrical applications.
This relay offers a coil power and switching power of 50W, ensuring reliable operation under demanding conditions. It supports a maximum current rating of 2A and isolation voltage rated up to 7000V DC, making it suitable for high-voltage circuits requiring robust isolation.
Engineered for PCB mounting, it includes PCB terminals that simplify installation on printed circuit boards. The relay’s coil resistance of 150 Ω contributes to efficient coil power management.
The relay is constructed to operate reliably within a temperature range of -20°C to 70°C, making it suitable for varied industrial environments. Its compact form factor with a length of 60mm and height of 18.5mm allows use in space-constrained designs.
Other technical features include fast 3ms operating time and low contact resistance at 250mΩ, which supports high-fidelity signal transmission with minimal loss. The product is UL certified, ensuring compliance with key safety and quality standards.
Operates with 12V DC coil at 50W power. SPST contact configuration for simple switching control. High isolation voltage of 7000V DC for secure use. PCB mount design with PCB terminal type for easy integration. Wide temperature tolerance from -20°C to 70°C for reliability.
Quick 3ms operating time for efficient switching. Contact resistance of 250mΩ delivering low-loss connections. Compact physical dimensions optimized for PCB use. UL certification for assured quality and safety.
This Cynergy3 DAT71205U PCB Reed Relay is widely used in electronic automation, testing equipment, medical devices, and communication systems. Its high isolation and low contact resistance make it an excellent choice for sensitive applications demanding precision and reliability.
Explore more Components in the Reed Relay category at EnvMart for comprehensive industrial and laboratory solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this relay is 2A.
This model operates with a 12V DC coil and has a coil power rating of 50W.
It features an isolation voltage of up to 7000V DC, providing enhanced safety in high-voltage applications.
The relay has a length of 60mm and a height of 18.5mm, making it suitable for compact installations.
It operates reliably within a temperature range of -20°C to 70°C.
This relay utilizes an SPST (Single Pole Single Throw) contact configuration.
The coil resistance is 150 Ω, which contributes to efficient operation.
The operating time of this relay is 3ms, allowing for quick switching.
It is designed for PCB mounting and includes PCB terminals for easy integration.
The contact resistance is 250mΩ, which supports low-loss connections.
Yes, it is UL certified, ensuring compliance with key safety and quality standards.
This relay is suitable for electronic automation, testing equipment, medical devices, and communication systems.
