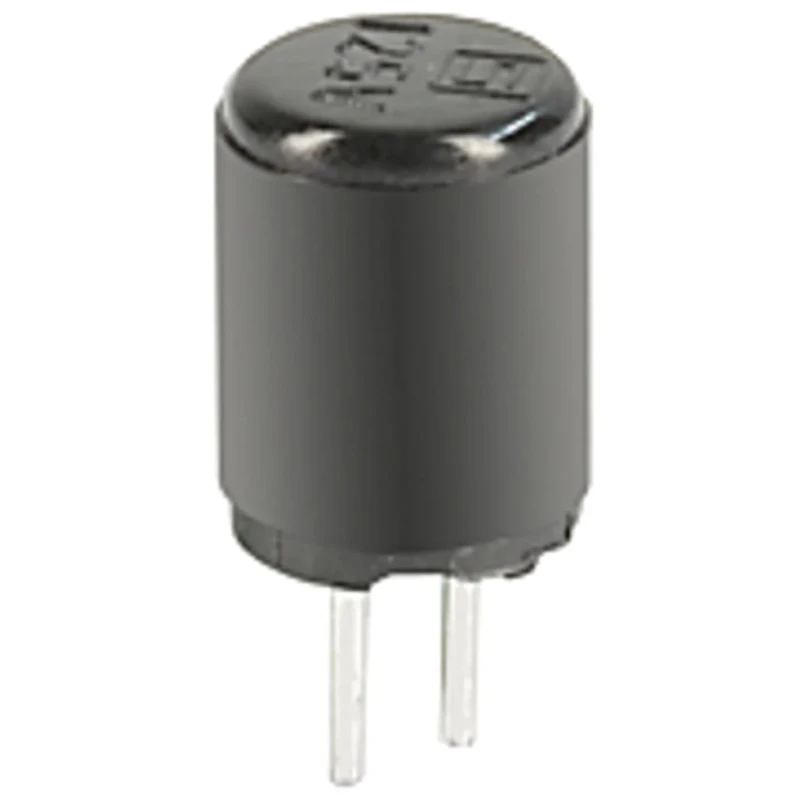

Schurter Non-Resettable Fuse 3.15A 125 V AC 125 V DC Fast Acting Thermoplastic Body MSF 125 0034.4226

Schurter 0034.4226 Non-Resettable Fuse is a high-quality fast acting fuse rated at 3.15A and designed to operate safely at 125 V AC and 125 V DC. It features a robust thermoplastic polyamide body which provides excellent electrical insulation and mechanical stability. The fuse is compact with a length of 18.8 mm, diameter of 6.4 mm, and a width and height of 4.3 mm and 8.8 mm respectively, making it suitable for sub miniature electrical circuit applications.

This fuse offers a breaking capacity of 100A, ensuring protection of sensitive electronic components and circuits from overload and short circuit conditions. Designed for a minimum operating temperature of -25°C and a maximum of 85°C, this fuse performs reliably in demanding industrial and electronic environments.

The MSF 125 series fuse by Schurter features fast acting characteristics and is intended for PCB mounting with tin-plated copper leads measuring 8.8 mm in length and 0.62 mm in diameter. Compliance with UL and RoHS standards guarantees safety, reliability, and environmental compliance.

Fast acting fuse for enhanced circuit protection. Durable thermoplastic polyamide body construction. Compact dimensions suited for sub miniature fuse requirements. Wide operating temperature range from -25°C to 85°C. High breaking capacity of 100A for robust safety.

Easy PCB mounting with tin-plated copper terminals. Certified to UL and RoHS quality standards. Ideal for electrical, automation, and industrial applications.

This Schurter Non-Resettable Fuse is widely used in electronics manufacturing, automation systems, and electrical circuit protection, ensuring dependable operation in commercial and industrial environments. Explore the full range of Schurter fuses on EnvMart for related circuit protection solutions.
