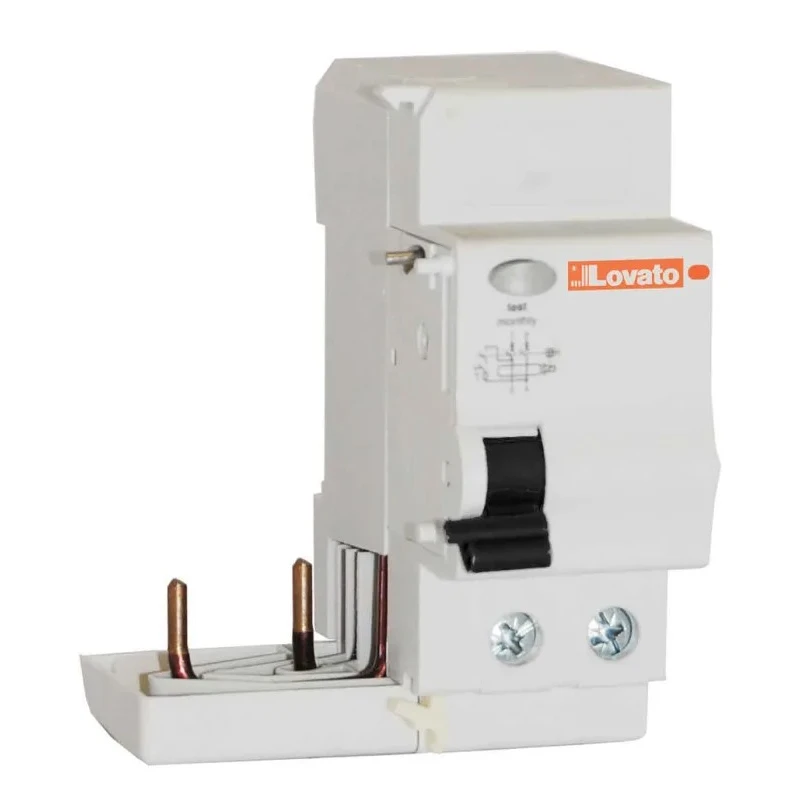

Lovato Electric Residual Current Circuit Breaker 40A 2-Pole 30 mA Type A 230V AC 400V AC P1RA

Lovato Electric P1RA Residual Current Circuit Breaker with model code P1RA is a high-quality electrical protection device designed for industrial and commercial applications. Featuring a 40A current rating and 2-pole configuration, it provides sensitive earth leakage detection with a 30 mA trip sensitivity, ensuring enhanced safety against electric shocks and fire hazards caused by leakage currents.

This Type A RCCB is suitable for alternating current (AC) and pulsating direct current (DC) residual currents, making it versatile for modern electrical installations requiring such protection characteristics. It operates at rated voltages of 230V and 400V AC, compatible with standard electrical distribution systems.

The device has a compact form factor measuring 71.3 mm in height, 69.2 mm in width, and 92 mm in depth. Its DIN rail mounting type with a 35 mm mount hole size allows for straightforward integration into electrical panels. The reset actuator is a convenient toggle switch, facilitating easy user intervention to restore circuit continuity after a trip.

Lovato Electric ensures compliance with internationally recognized standards including TUV-SUD, IEC/EN 61009-1, and EAC, which guarantees reliable performance and safety. The thermal magnetic tripping mechanism delivers instantaneous break time ensuring rapid disconnection during fault conditions and stable operation during normal load variations.

Screw terminals provide robust and secure wiring connections supporting long-term durability and maintenance ease. The product is created and designed for use in industrial automation, electrical installations, construction, and commercial electrical equipment protection.

Rated current capacity of 40 amperes for robust circuit protection. Equipped with Type A tripping characteristic suitable for AC and pulsating DC residual currents. Compact dimensions measuring approximately 71.3 mm height, 69.2 mm width, and 92 mm depth.

Easy DIN rail mounting with a 35 mm mount hole size for quick installation. Utilizes a toggle switch reset actuator for user-friendly operation. Screw-type terminals ensure secure and reliable wiring connections. Certified to standards including TUV-SUD, IEC/EN 61009-1, and EAC for high compliance and safety.

Instantaneous break time with thermal magnetic tripping mechanism enhances protection response.
