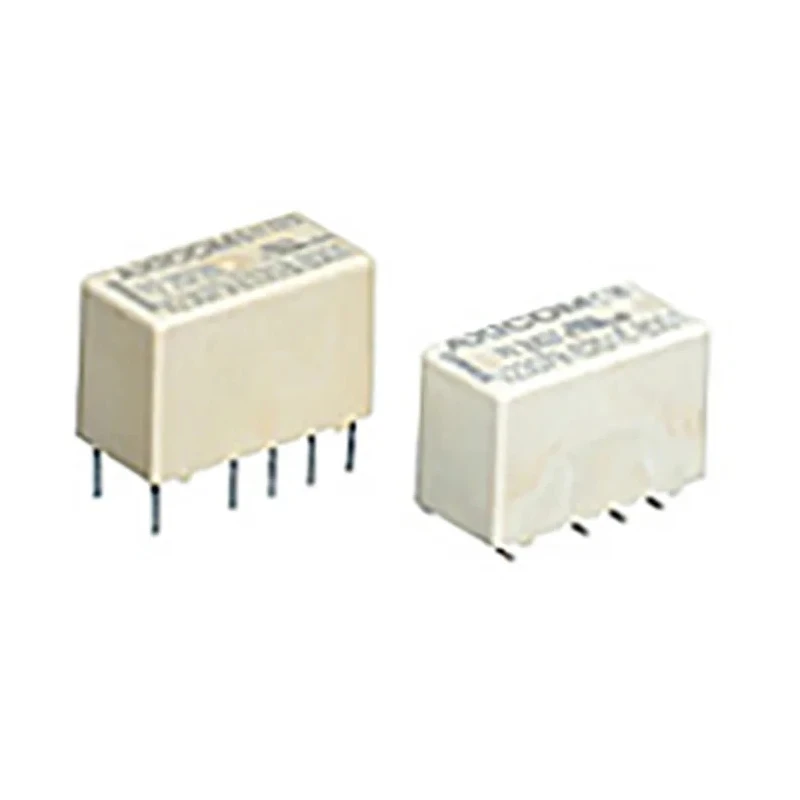

TE Connectivity PCB Signal Relay 5V dc Coil 2A DPDT V23079A2001B301
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 9.8mm |
| Length | 14.5mm |
| Model | V23079A2001B301 |
| Width | 7.4mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | Axicom P2 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 178Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 140mW |
| Switching Power | 140mW |
| ERNI, 180° Circular Connector Seal O Ring for use with M12 Male ConnetorsBrand | ERNI |
Key Features
- Operates with a coil voltage of 5 volts DC.
- Designed with DPDT contact configuration for versatile switching applications.
- Supports switching currents up to 2 amperes for both AC and DC loads.
- Compact PCB mount type with dimensions of 14.5mm length, 7.4mm width, and 9.8mm height.
- Features gold plated contacts for enhanced conductivity and durability.
- Wide operating temperature range from -40°C to 85°C suitable for various environments.
- Coil resistance is 178 Ohms with coil power consumption of 140mW.
- Compliance with RoHS standards ensures environmentally safe manufacturing.
Product Description
TE Connectivity V23079A2001B301 PCB Signal Relay is a high-quality double-pole double-throw device designed for precise signal switching in electronic circuit boards. Operating at a coil voltage of 5V DC and capable of switching currents up to 2A, it offers robust performance for industrial, automation, and domestic applications.
This relay features a compact form factor with PCB mounting capability, measuring 14.5mm in length, 7.4mm in width, and 9.8mm in height, making it ideal for space-constrained electronic assemblies. The gold plated contacts ensure superior electrical conductivity and resistance to wear, extending the relay’s operational life.
Designed for demanding environments, it operates reliably across a broad temperature range from -40°C to 85°C. Coil power is maintained low at 140mW to improve energy efficiency. The solder terminal type facilitates strong and secure connections on printed circuit boards.
Manufactured under RoHS compliant standards, this Signal Relay meets the environmental requirements for electronic equipment. Its versatile DPDT (Double Pole Double Throw) contact configuration supports numerous switching needs including interface applications, automation systems, security lighting controls, heating management systems, and other domestic and industrial uses.
Operates with 5V dc coil voltage. Supports 2A switching current for AC and DC loads. Double-pole double-throw contact configuration offers versatile switching options. Compact PCB mount relay with low coil power consumption of 140mW.
Gold plated contacts provide reliable electrical connection. Wide temperature range from -40°C to 85°C for harsh environments. Solder terminal type for stable PCB integration. Complies with RoHS environmental standards. Suitable for automation, security lighting, interface circuits, and domestic appliance controls.
Explore more electronic relays and signal conditioning products for automated, industrial, and commercial applications at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 5V DC.
It supports a maximum switching current of 2A for both AC and DC loads.
This relay measures 14.5mm in length, 7.4mm in width, and 9.8mm in height.
It features a DPDT (Double Pole Double Throw) contact configuration, allowing versatile switching options.
The coil resistance is 178 Ohms.
It operates reliably across a temperature range from -40°C to 85°C.
This model is designed for PCB mounting.
The coil power consumption is 140mW.
The contacts are gold plated, enhancing conductivity and durability.
Yes, it complies with RoHS standards, ensuring environmentally safe manufacturing.
It features a solder terminal type for secure connections on printed circuit boards.
It is suitable for a variety of applications including automation systems, security lighting controls, and domestic appliance controls.
