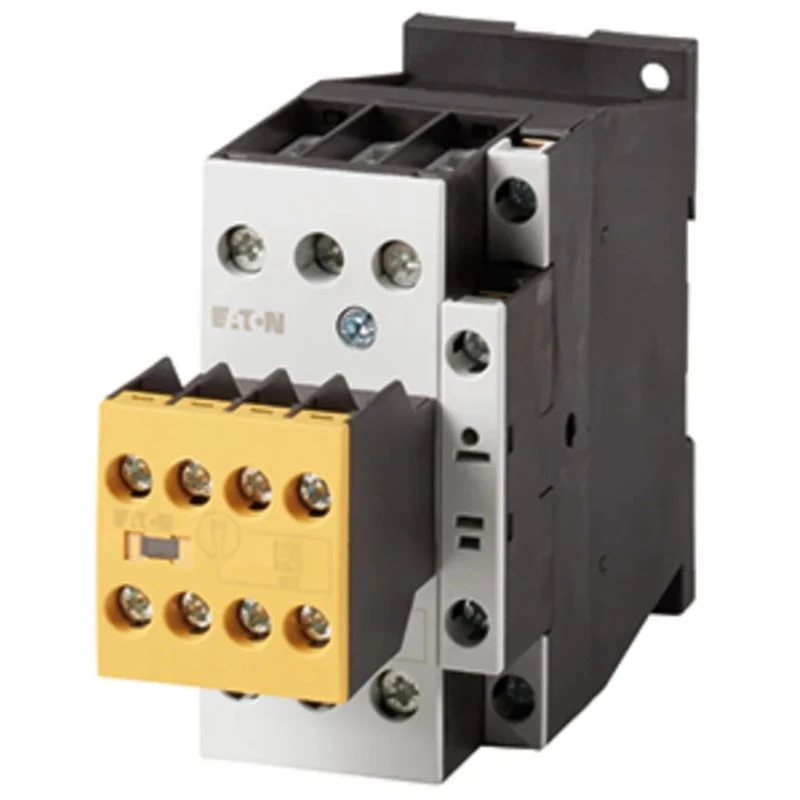

Eaton DILMS Safety Contactor 3-Pole, 18A, 7.5kW, 120V AC Coil, 24V Control Circuit 191736 DILMS17-R23(110V50HZ,120V60HZ)

Eaton 191736 DILMS17-R23(110V50HZ,120V60HZ) Safety Contactor is a precision industrial device designed for safety-related machine control circuits. This 3-pole contactor supports an 18 amp contact current under a 400V AC contact voltage, with a coil voltage of 120V AC and control circuit voltage of 24V, delivering a power rating up to 7.5 kW.

The design incorporates top-mounted, non-detachable auxiliary contacts with five total auxiliaries configured as 2 NO (normally open) and 3 NC (normally closed), facilitating flexible control and safety functions. Its robust screw clamp terminals ensure secure and reliable electrical connections while the table mounting provides straightforward installation in industrial panels.

The contactor features a yellow cover (RAL1004) for quick identification and a built-in inspection window located above the switch-position indicator to allow for safe, visible monitoring of the operational state and prevent manual activation errors. This makes it compliant with high safety standards such as UL, IEC, and CSA for demanding industrial environments.

Operating temperature ranges from -25°C to 60°C, suitable for various industrial and manufacturing settings. Its compact dimensions (138mm width, 85mm depth, 56mm length) support space-efficient panel setups. The product originates from Romania, representing Eaton's commitment to quality and safety devices for industrial automation.

This contactor is particularly suited for emergency-stop applications with controlled start (category 4), ensuring reliable and self-monitoring machine control. It provides enhanced safety through interlocking opposing contacts and integrated mirror contacts, setting a high bar for safety contactors in industrial electrical automation.

Equipped with a 120V AC coil and a 24V control circuit voltage. Rated power capacity of 7.5 kW and operational contact voltage of 400V AC. Features 3 normally open (NO) contacts for safety and operational use. Includes five auxiliary contacts with a configuration of 2 NO and 3 NC for additional control functions.

Mounted via table type installation with screw clamp terminals for secure connections. Built for robust safety function with standards compliance including UL, IEC, and CSA. Operational temperature range from -25°C to 60°C ensuring durability in varying environments.

Dimensions comprise width 138mm, depth 85mm and length 56mm for compact industrial mounting. Highlighted by a yellow cover (RAL1004) and a built-in inspection window to monitor operating status safely.

Ideal for Industrial Automation, Manufacturing Equipment, Safety Control Systems, and Machine Safety applications. This Eaton DILMS contactor ensures uninterrupted safety performance and easy operation monitoring.
