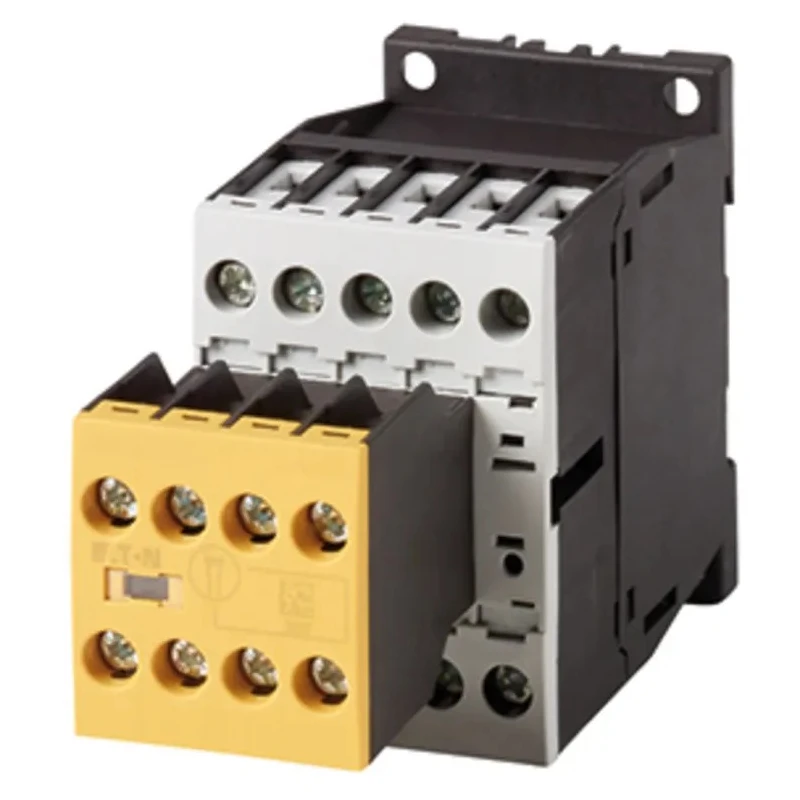

Eaton DILMS Safety Contactor 3 Pole 7 A 3 kW 240V AC Coil 230V AC Control Circuit 191754 DILMS7-R23(230V50HZ,240V60HZ)
Specifications
| Country of Origin | Romania |
|---|---|
| Brand | Eaton |
| Function | Safety |
| Length | 45mm |
| Model | 191754 DILMS7-R23(230V50HZ,240V60HZ) |
| Depth | 68mm |
| Width | 117mm |
| Mount Type | Table |
| Series | DILMS |
| Power Rating | 3kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw Clamp |
| Number of Poles | 3 |
| Standards/Approvals | CSA, IEC, UL |
| Contact Voltage | 400V ac |
| Coil Voltage | 240V ac |
| Normal State Configuration | 3 NO |
| Contact Current | 7A |
| Number of Auxiliary Contacts | 5 |
| Auxiliary Contact Configuration | 2 NO/3 NC |
| Operational Current Ie | 7A |
| Control Circuit Voltage Uc | 230V ac |
| Contactor Application | Safety |
| Pole and Throw Configuration | 3P |
Key Features
- Equipped with a 240V AC coil voltage for control.
- Features 3 normally open poles and auxiliary contacts configuration of 2 NO and 3 NC.
- Suitable for safety and emergency-stop applications with controlled start.
- Industrial-grade construction includes top-mounted non-detachable auxiliary contact and inspection window to monitor operating status.
- Rated for operation in temperatures from -25°C to 60°C.
- Complies with CSA, IEC, and UL standards ensuring certified quality.
- Designed with screw clamp terminals for secure wiring.
- Manufactured in Romania with Eaton’s DILMS series engineering.
Product Description
Eaton 191754 DILMS7-R23(230V50HZ,240V60HZ) safety contactor provides a robust 3-pole switching solution with a 240V AC coil and a control circuit voltage of 230V AC. It delivers 7 A contact current and 3 kW power rating, ideal for industrial automation, electrical control, and safety interlock applications.
This contactor is built for safety-oriented tasks, featuring a yellow RAL1004 cover for easy identification and a built-in inspection window to prevent unintended manual activation. The device includes mirror contacts and interlocked opposing contacts to enhance operational safety.
With 3 normally open (NO) poles and an auxiliary contact configuration of 2 NO and 3 NC, it accommodates complex circuitry requirements. The integrated top-mounted auxiliary contact is non-detachable, ensuring reliable auxiliary control functionality.
Its robust construction is complemented by screw clamp terminals and is designed for mounting on tables or panels. It supports operation in environments with temperatures ranging from -25°C to 60°C. Compliant with international standards (CSA, IEC, UL), it assures long-term dependable performance.
Compact dimensions of 117mm width, 68mm depth, and 45mm length make it suitable for confined control panels in industrial, HVAC, manufacturing, and safety equipment environments. Manufactured in Romania, this Eaton DILMS contactor series is known for dependable machine control and emergency stop gating in category 4 safety circuits.
Equipped with a 240V AC coil voltage for control. Features 3 normally open poles and auxiliary contacts configuration of 2 NO and 3 NC. Safe status monitoring via inspection window to prevent manual activation. Compliance with CSA, IEC, and UL standards.
Top-mounted non-detachable auxiliary contact and screw clamp terminals. Operating temperature range from -25°C to 60°C. Compact dimensions suited for panel mounting. Manufactured in Romania with Eaton DILMS series quality assurance.
This Eaton DILMS safety contactor is an essential component for controlling industrial machinery, ensuring reliable emergency-stop operation, and providing self-monitoring machine control circuits in industrial, laboratory, HVAC, and automation systems. Explore more automation control gear products from Eaton and other trusted brands on EnvMart for optimized industrial setups.
Explore more products in our Contactors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton DILMS safety contactor has a power rating of 3 kW.
This model is equipped with a coil voltage of 240V AC.
The maximum operating temperature for this contactor is 60°C.
It features 3 normally open (NO) poles.
The auxiliary contact configuration includes 2 normally open (NO) and 3 normally closed (NC) contacts.
The dimensions are 117mm in width, 68mm in depth, and 45mm in length.
The contact current rating is 7A.
It uses screw clamp terminals for secure wiring.
It complies with CSA, IEC, and UL standards.
The minimum operating temperature is -25°C.
The control circuit voltage is 230V AC.
It is manufactured in Romania.
