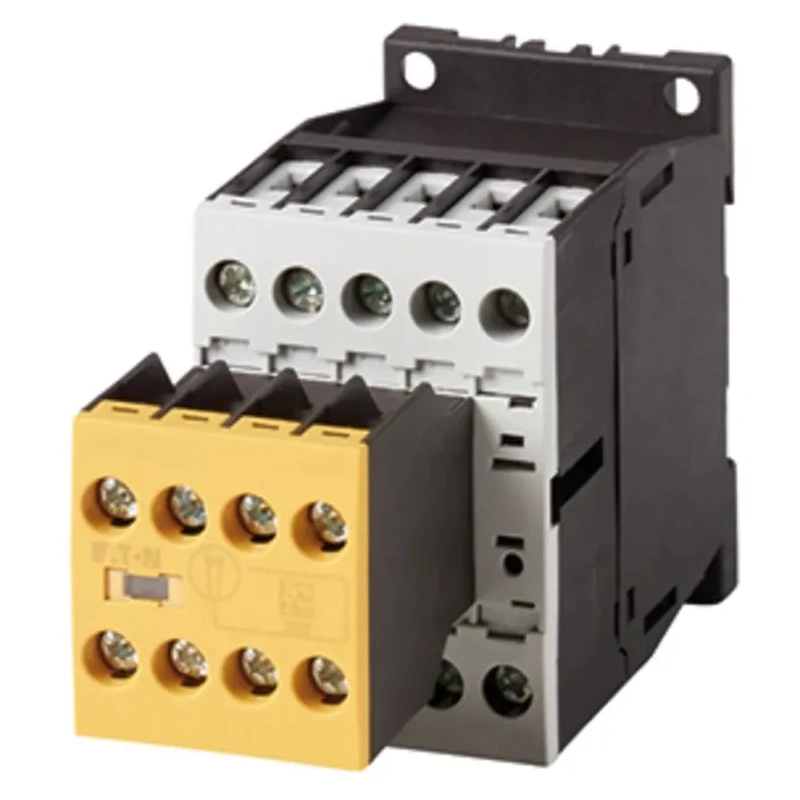

Eaton DILMS Safety Contactor 3-Pole 9 A 4 kW, 120V AC Coil, 110V AC Control Circuit 191702 DILMS9-23(110V50HZ,120V60HZ)

Eaton 191702 DILMS9-23(110V50HZ,120V60HZ) Safety Contactor is designed for reliable and safe switching in industrial automation systems, featuring a 3-pole configuration with a 9 A contact current and 4 kW power rating. The device operates with a 120V AC coil and a 110V AC control circuit voltage, providing stable and precise control for safety-critical applications.

This contactor is built with a yellow cover (RAL1004) for quick visual identification and includes a non-detachable top-mounted auxiliary contact at the front, enhancing safety and ease of monitoring. The integrated mirror contacts and interlocked opposing contacts further improve operational safety. A built-in inspection window above the switch-position indicator allows continuous monitoring of operating status, preventing accidental manual activation.

Its robust construction supports a wide ambient operating temperature range from -25°C to 60°C, making it suitable for diverse industrial and manufacturing environments. The unit utilizes screw clamp terminals to secure wiring firmly, ensuring stable electrical connections under demanding conditions.

The Eaton DILMS series covers a power range from 7 to 150 A, with this model specifically catering to applications requiring a 9 A contact current at 400V AC contact voltage. The contactor includes five auxiliary contacts configured as 2 Normally Open (NO) and 3 Normally Closed (NC), facilitating complex control circuit designs.

Certified to comply with CSA, IEC, and UL standards, this device meets high international safety and quality requirements. The compact footprint (117 mm width x 68 mm depth x 45 mm length) allows for efficient panel space utilization. Manufactured in Romania, it reflects high European manufacturing standards, suitable for use in industrial, manufacturing, HVAC, and commercial safety control systems.

Reliable 3-pole contactor design with 9 A current rating and 4 kW power handling. Safe and non-detachable auxiliary contacts enhance machine safety. Visual inspection window prevents unintended manual operation. Compliance with CSA, IEC, and UL standards ensures trustworthy performance.

Robust operational temperature range from -25°C to 60°C for environmental versatility. Suitable for emergency-stop applications with controlled start (category 4). Screw clamp terminals provide secure and stable electrical connections.

Yellow RAL1004 cover for easy identification in panel assemblies. Compact dimensions allow space-efficient installation in control panels. Explore the Eaton contactor range on EnvMart for dependable and safe industrial automation components designed to meet rigorous control and safety requirements.
