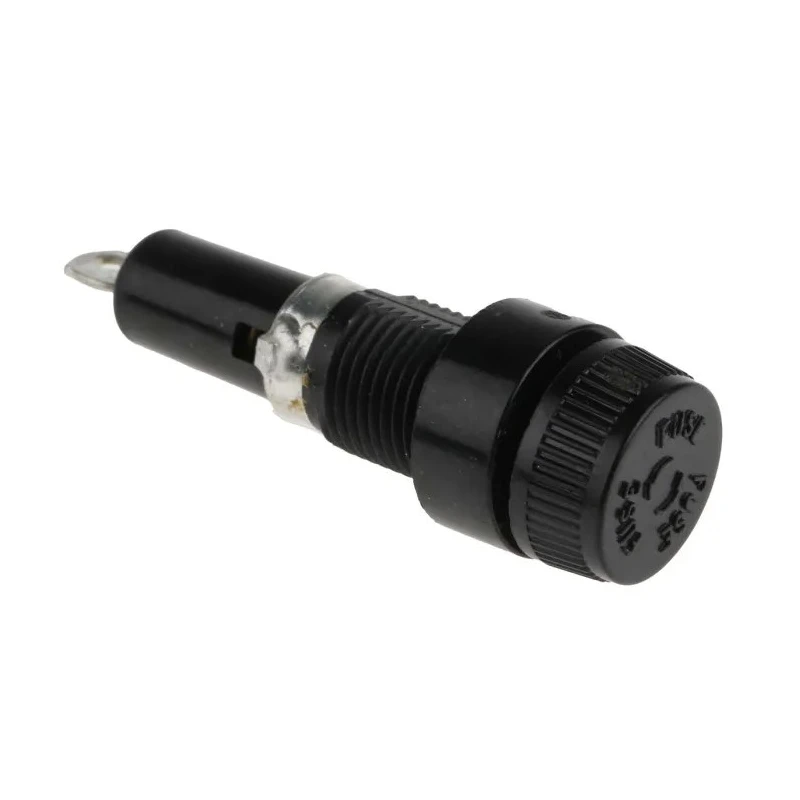

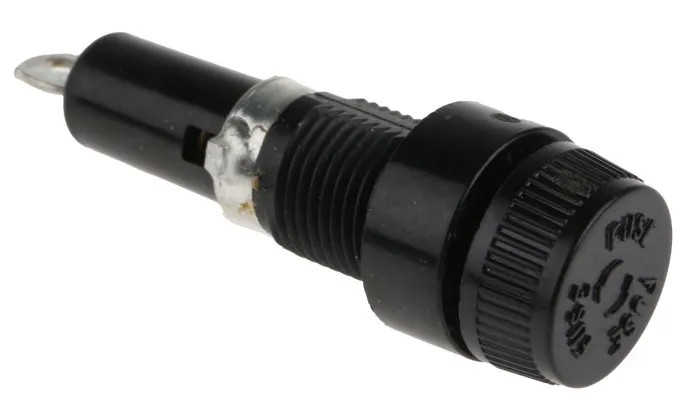

Eaton 30A Panel Mount Fuse Holder 1P-Pole for 32 mm Fuse, 25V HKP-R

Eaton HKP-R Panel Mount Fuse Holder is designed for secure and reliable mounting of fuses with a current rating of 30 amperes and a voltage rating of 25 volts. It supports 1 pole operation and is compatible with 32 mm fuse sizes, making it appropriate for electrical panels requiring robust fuse protection.

The fuse holder's body is manufactured from high-quality thermoset material, offering exceptional resistance to heat withstanding maximum operating temperatures up to 150°C. Its IP53 rated enclosure provides dust protection and resists water spray, ensuring durability in industrial or commercial environments.

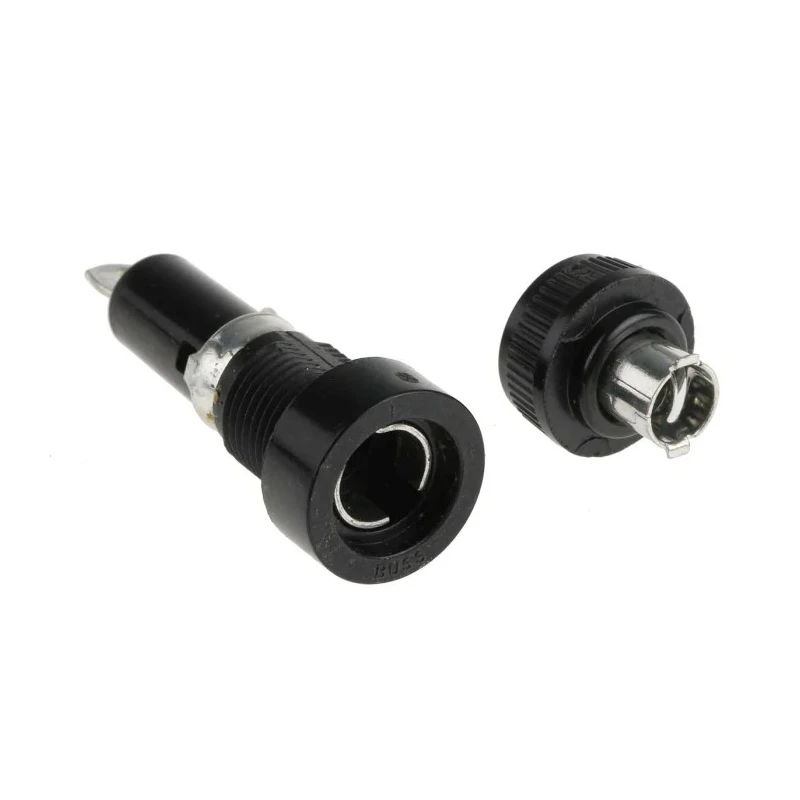

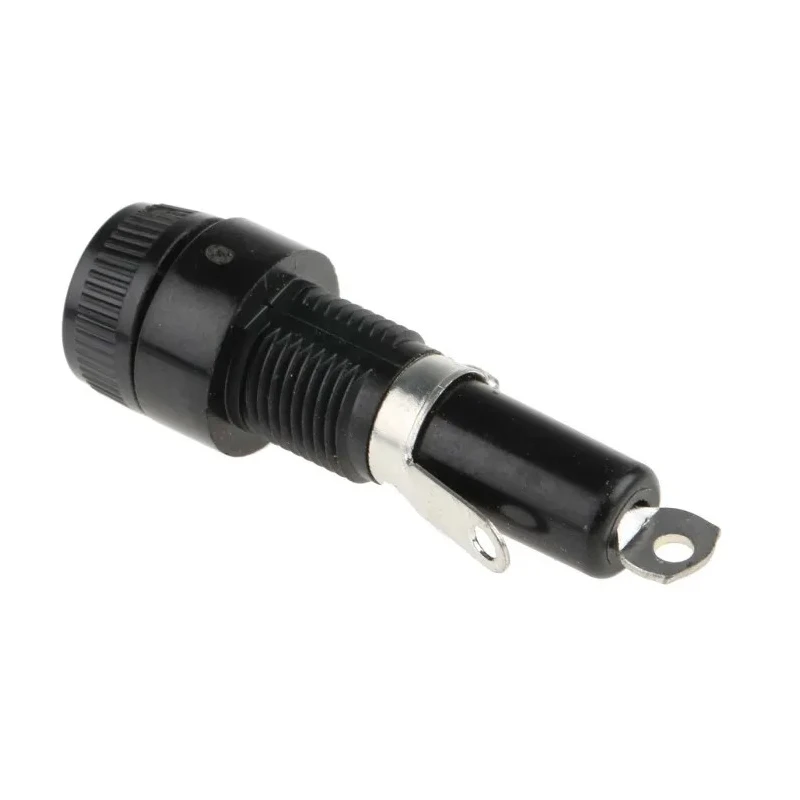

Featuring a manual bayonet knob cap style, the fuse holder allows easy manipulation - simply push and turn the knob anti-clockwise to open, place the fuse securely in the carrier section, and close it by turning clockwise. Tin-plated brass contacts and solder-type terminals guarantee strong electrical connections and longevity.

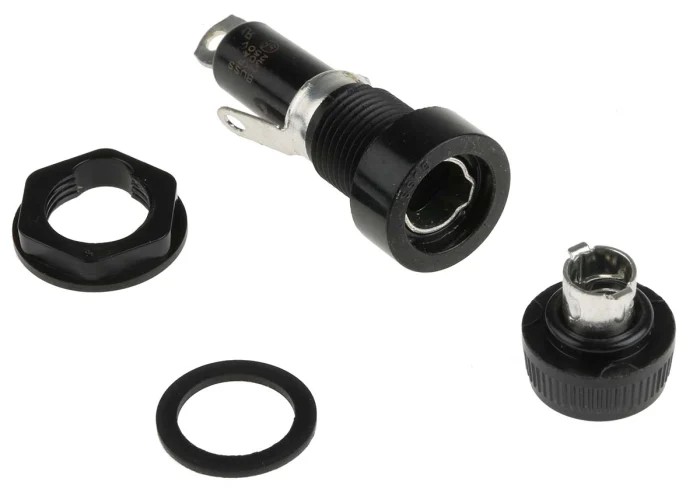

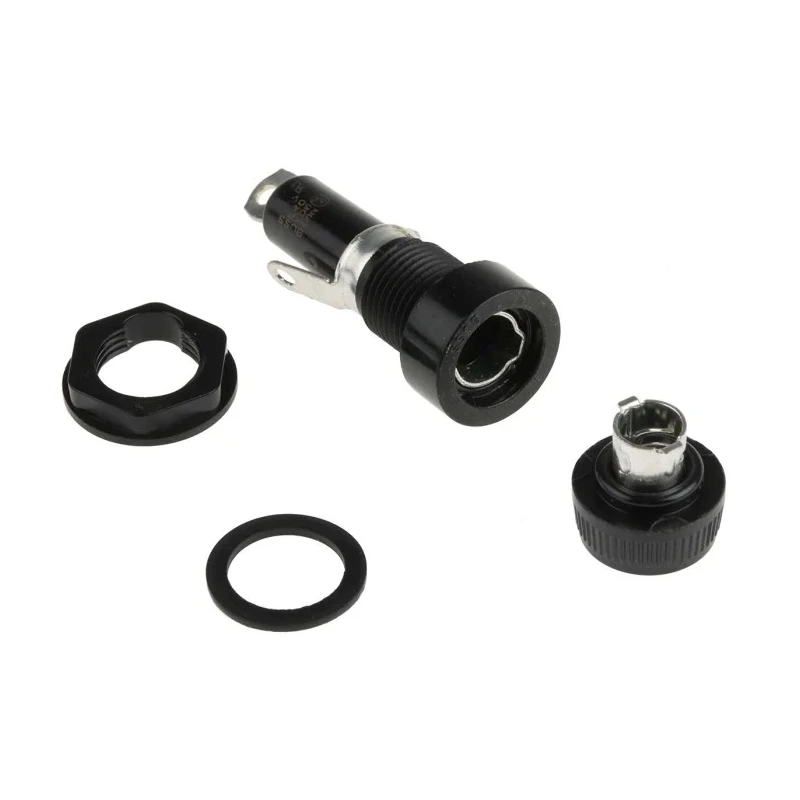

Its compact size of 59.1 mm length and 19.9 mm width ensures it fits neatly into panels without occupying excessive space. Installation requires a mounting hole of 12.8 mm ± 0.13 mm by 12.0 mm ± 0.13 mm with one side flattened to prevent rotation. It is suitable for panels up to 7.9 mm thickness secured with a hexagonal locking nut.

This fuse holder is compliant with international safety and environmental standards, including RoHS compliance and UL Recognized marks (including CSA and other UL files), ensuring safe and reliable performance across various electrical applications.

The fuse holder features a durable thermoset body material capable of withstanding temperatures up to 150°C. It offers a protective IP53 rating, safeguarding against dust and water splashes. The bayonet knob cap style enables easy manual operation for inserting and replacing fuses.

Tin-plated brass contacts ensure reliable electrical connectivity and corrosion resistance. The compact dimensions (59.1 mm x 19.9 mm) facilitate installation without adding unnecessary bulk. Suitable for panel mounting, it accommodates panels up to 7.9 mm thick.

Fully enclosed design protects against mechanical impacts in industrial or commercial environments. Compliant with RoHS and recognized by UL and CSA safety standards for assured quality.

This Eaton panel mount Fuse Holder is ideal for industrial, commercial electrical panels, automation systems, and equipment needing compact, robust fuse protection. Explore more circuit protection products from Eaton on EnvMart.
