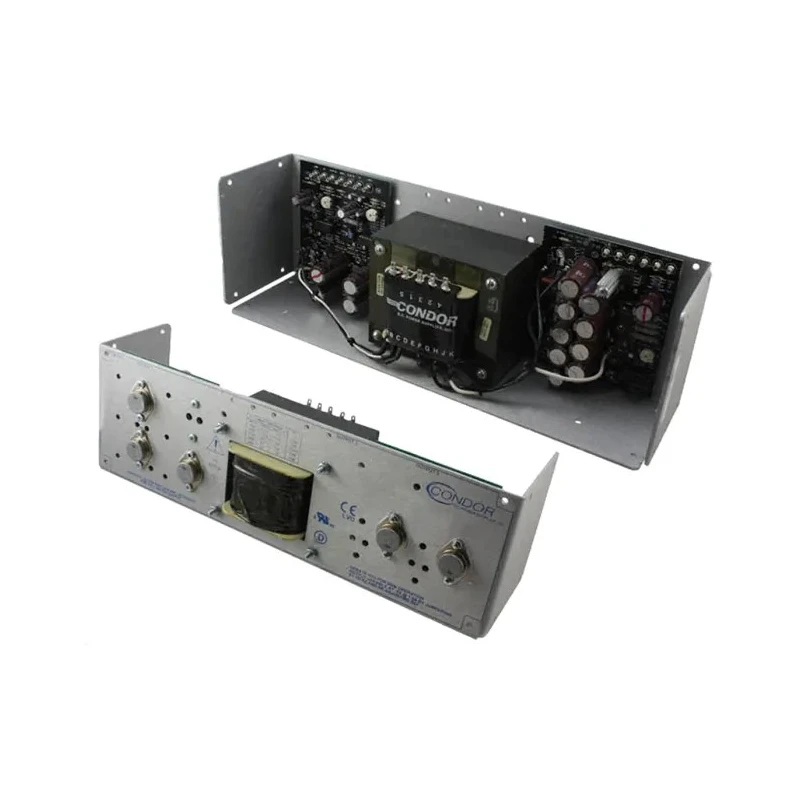

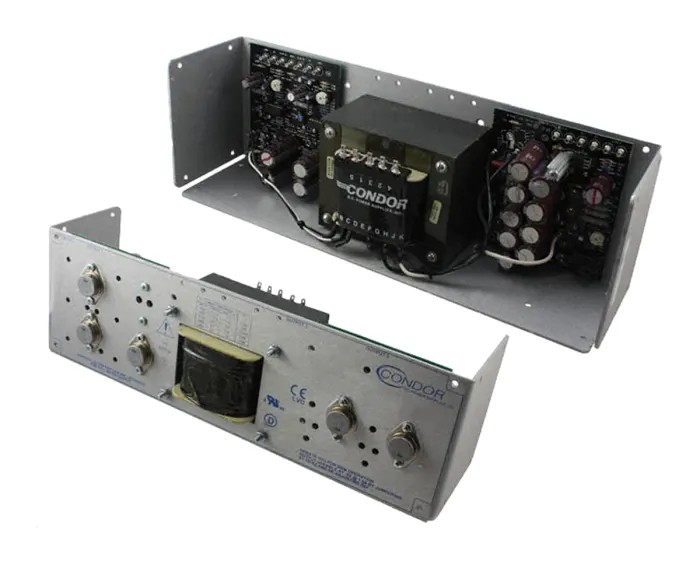

SL Power / Advanced Energy 3 Output Linear Power Supply 240V, 12A Output, 15V HDCC150W-A+G

SL Power / Advanced Energy HDCC150W-A+G is a 3 output linear power supply designed to provide reliable DC power with an input voltage range of 100 to 240 volts AC. It delivers a maximum output current of 12 amperes and a maximum output voltage of 15 volts. This power supply operates efficiently with 55% efficiency and is engineered for robust performance in industrial, laboratory, medical, and electronics manufacturing applications.

The linear design ensures low ripple and noise at 3mV peak-to-peak, which is critical for sensitive electronic equipment. It maintains tight load and line regulation of 1%, ensuring consistent voltage output under varying load conditions. The unit is built with high-quality electrolytic capacitors rated for 105°C and transformer insulation rated at Class F (155°C), which enhances its reliability and thermal endurance.

Engineered for global use, the supply accepts a wide input voltage range from 100V to 240V AC and complies with international safety standards UL/CSA 60950 and EN/IEC 60950-1. Its compact dimensions of 381mm length, 123.95mm width, and 115.57mm depth allow easy integration into equipment racks or enclosures. The operating temperature range from 0°C to 70°C ensures suitability across diverse environments.

This power supply features remote sensing for voltage regulation and exceeds FCC and CISPR22 Class B conducted emissions standards, making it suitable for use in sensitive electronic environments. Its robust design with a mean time between failures (MTBF) of over 200,000 hours per MIL-HDBK-217D illustrates its longevity and low maintenance needs.

Compact linear power supply with three outputs designed for stable voltage delivery. Worldwide AC input voltage range from 100V to 240V. High-reliability electrolytic capacitors rated for 105°C support long service life.

Transformer insulation meets Class F (155°C) standards. Low ripple and noise output at 3mV peak-to-peak for sensitive equipment. Tight load and line regulation at 1% to maintain consistent performance. Complies with UL/CSA 60950 and EN/IEC 60950-1 safety standards.

Suitable for industrial, laboratory, medical, and electronics manufacturing applications. Operating temperature range from 0°C to 70°C. Discover the full range of Linear Power Supplies on EnvMart to support your precise DC power needs.
