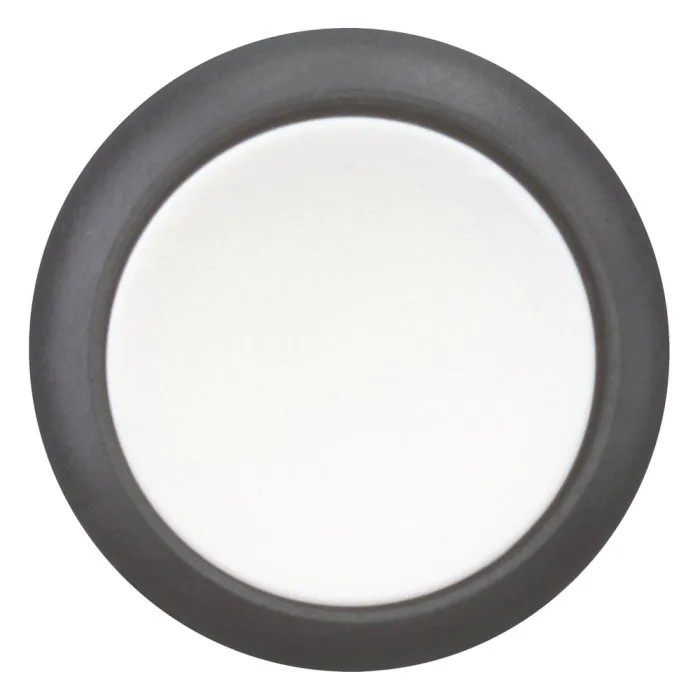

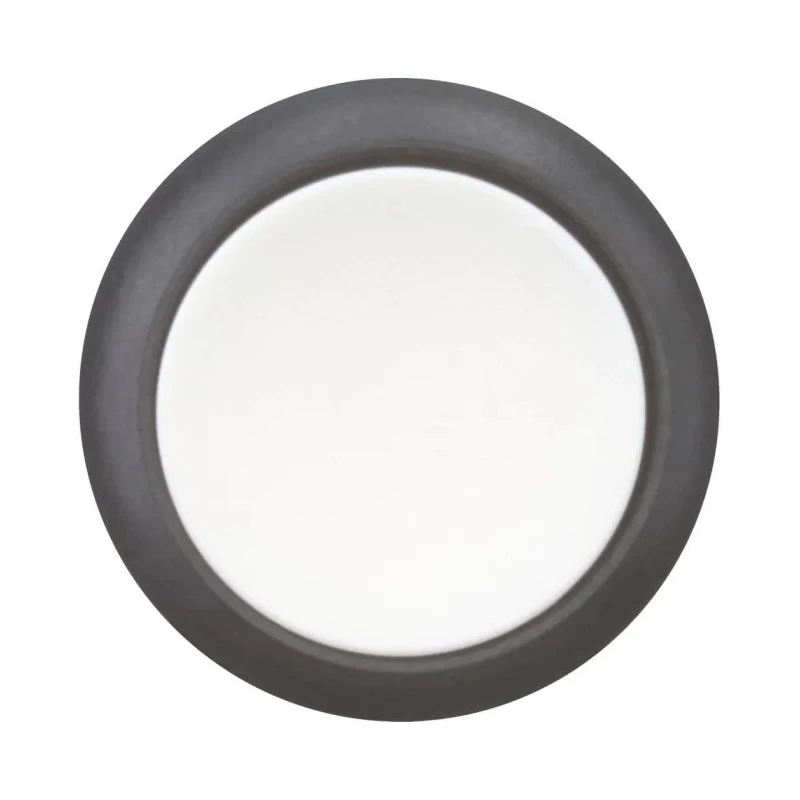

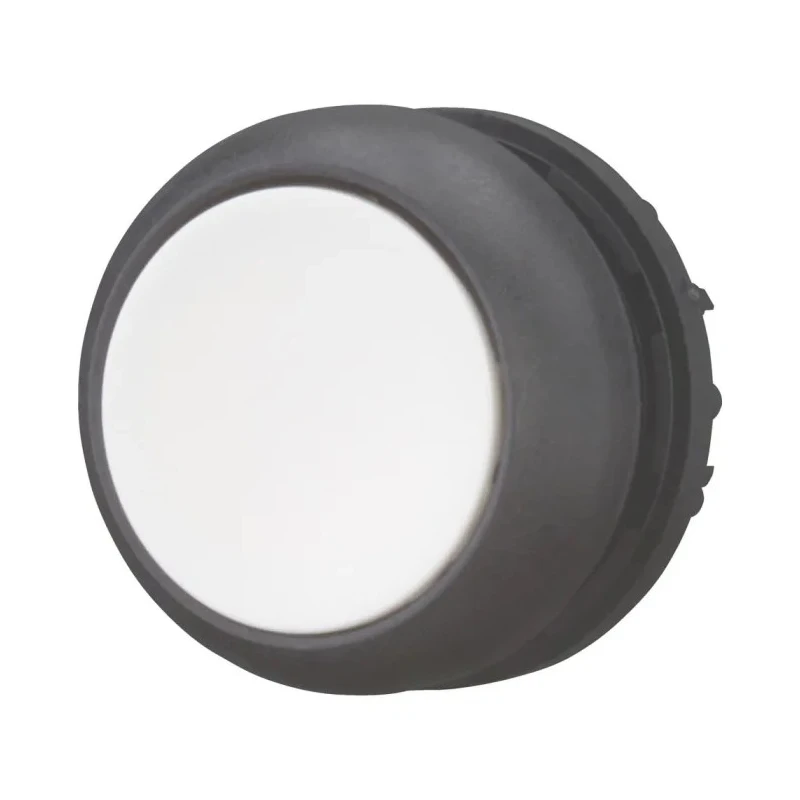

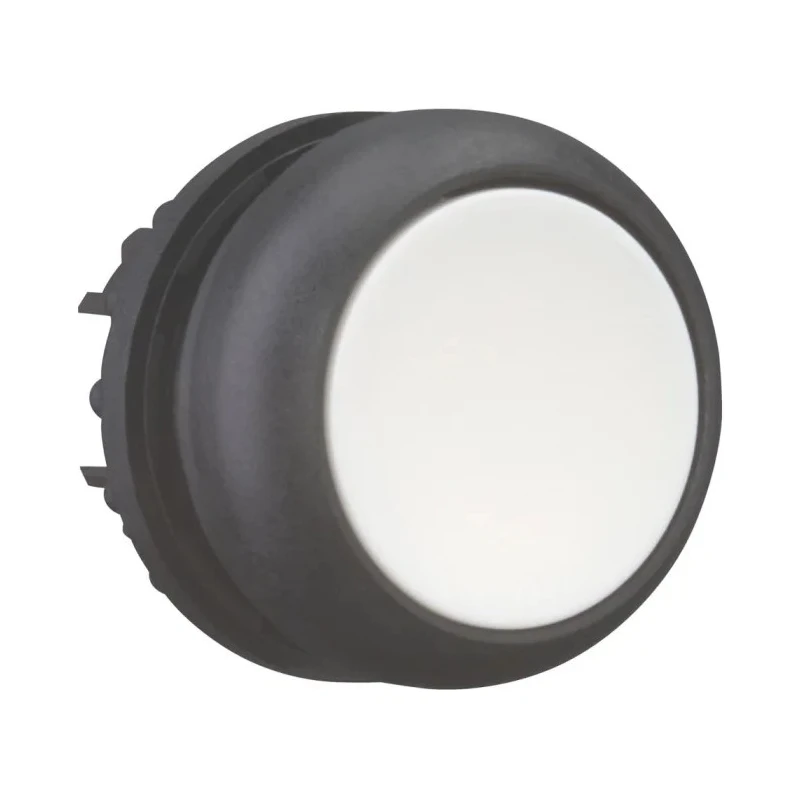

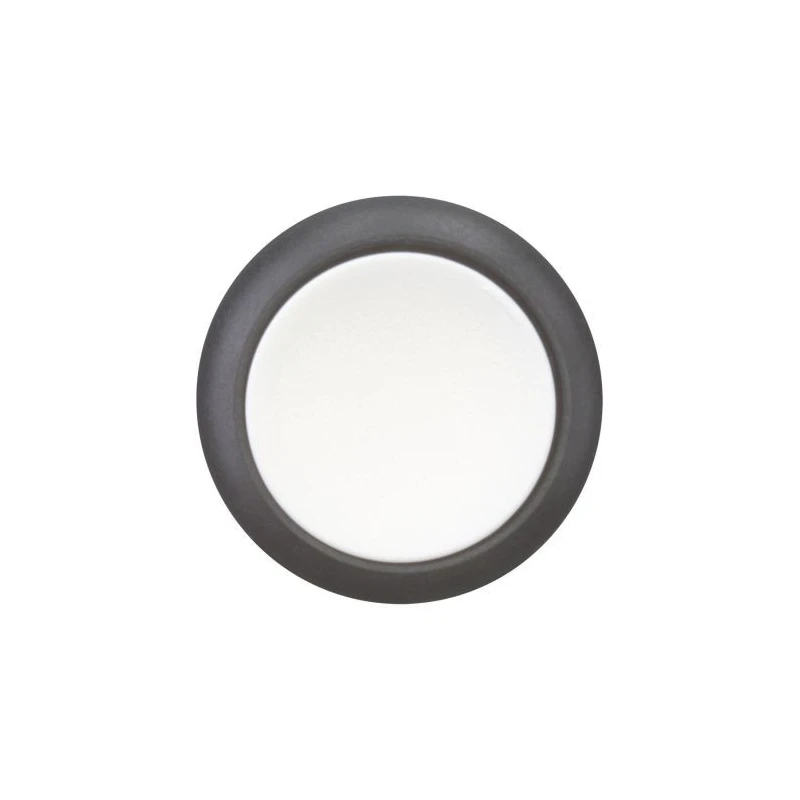

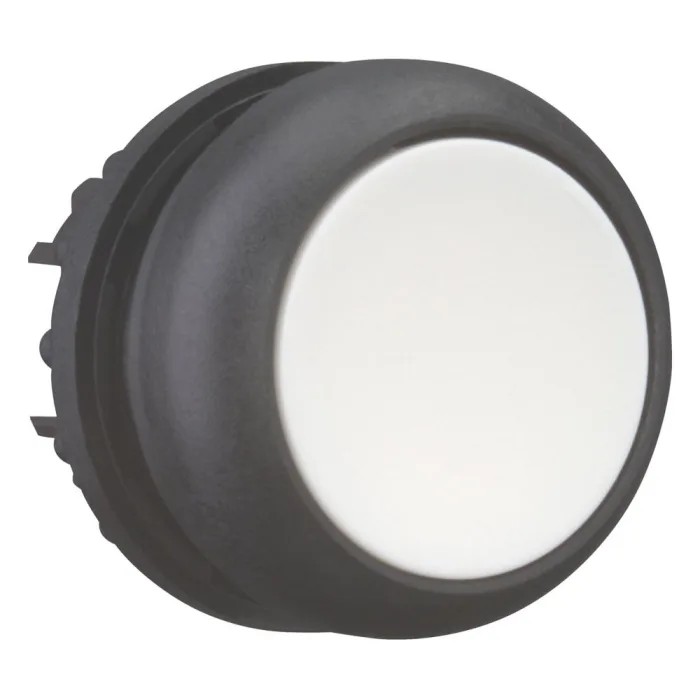

Eaton RMQ Titan M22 Series White Momentary Spring Return Push Button Switch, Panel Mount, 22 mm Cutout 216593 M22S-D-W

Eaton 216593 M22S-D-W RMQ Titan M22 series push button switch offers a rugged and reliable solution for panel control in industrial, commercial, and automation settings. Designed as a momentary, spring return actuator, it ensures rapid response and user-friendly operation.

With a panel cutout size of 22 mm and a compact form factor of 30 mm in height, length, and width, it fits seamlessly into standard control panels. The white push button actuator enhances visibility for quick identification during operation.

Engineered for use in demanding environments, this switch boasts IP67 and IP69K ingress protection ratings. These certifications guarantee the device is dust-tight and resistant to water ingress even under high-pressure washdowns, making it suitable for outdoor and harsh industrial applications.

Operating temperature ranges from -25°C to +70°C allow the switch to perform reliably in various climatic conditions. It supports both 30 V dc and 264 V ac voltages, enabling versatile electrical compatibility.

The Eaton RMQ Titan series is known for its durability and ergonomic design. This product meets IEC/EN 60529 standards and is manufactured in Germany to assure premium quality. Typical applications include machinery control panels, electrical equipment interfaces, and environments requiring robust user input devices.

The switch features a white round push button actuator for high visibility. It is designed for panel mounting with a standard 22 mm cutout diameter. Rated with IP67 and IP69K protection, ensuring dust-tight and water ingress resistance.

Operates within a wide temperature range from -25°C to 70°C. This switch supports both 30 V dc and 264 V ac contact voltages. The actuator style provides momentary, spring return switching operation. Its compact dimensions are 30 mm height, length, and width, suitable for varied panel designs.

Certified to IEC/EN 60529 standards for protection ratings. Manufactured in Germany with high-quality construction for industrial applications. Explore complete Eaton RMQ Titan push button switches and related components on EnvMart for industrial automation and electrical control solutions.
