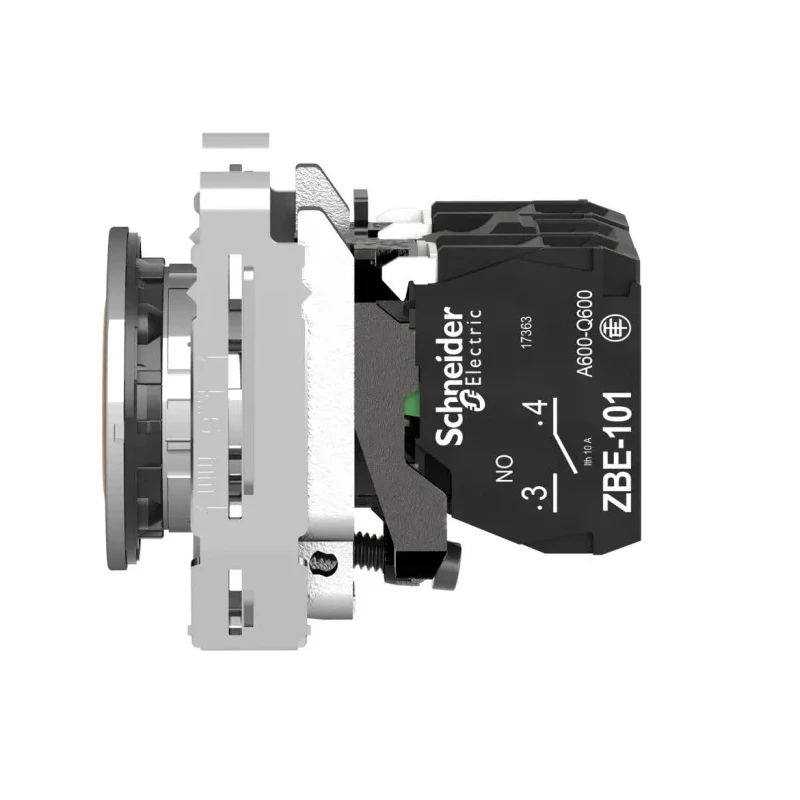

Schneider Electric XB4 Series Illuminated Push Button Switch, Spring Return, Panel Mount, 30 mm Cutout, SPDT XB4FW35G5

Schneider Electric XB4FW35G5 Illuminated Push Button Switch is part of the Harmony XB4 metallic series, designed for panel mounting with a 30.5 mm mounting diameter and featuring spring return action. The switch operates reliably with a rated voltage of 120 V AC and is illuminated with an orange LED for easy identification.

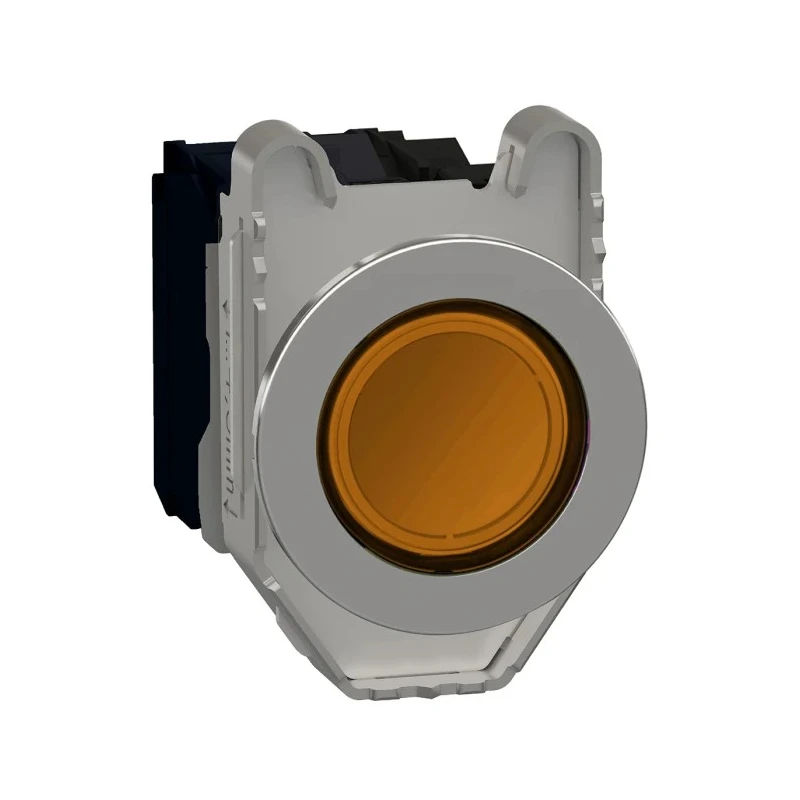

The product is engineered for ergonomic and aesthetic appeal with a flush mount round actuator shaped in orange and protected by a chromium-plated bezel and zamak fixing collar. It features a single-pole double-throw (SPDT) contact configuration with 1NO and 1NC slow break contacts, connected via screw clamp terminals, enhancing secure wiring.

Its robust build supports industrial use withstanding extreme operating temperatures from -40°C to 70°C and high vibration resilience through shake-proof terminal screws. The pushbutton switch is certified under major international standards including CSA C22.2 No 14, EN/IEC 60947 series, UL 508, JIS C8201, CE, and others, confirming its compliance for safety and durability.

The switch offers excellent protection against dust, water, and impact with IP66, 67, 69, 69K and IEC IK06 ratings. This makes it ideal for harsh environments such as food processing, automotive production, mining operations, and water treatment facilities. Its eco-friendly design adheres to environmental directives such as RoHS and WEEE.

A broad range of accessories including flush mounted metal circular blanking plugs, metal rings, spacers, protective washers, and mounting kits are available separately to customize installation to specific panel requirements. The push button is easy to install with standard cross head screwdriver tools.

The actuator is orange and round styled for bright indication. Spring return mechanism ensures reliable switch operation. SPDT contact type supports versatile electrical control. Supports screw clamp terminal connections for secure wiring.

Compact dimensions: height 47 mm, width 36.6 mm, length 55 mm. Rated for 600 V DC/AC contact voltage and 6 A contact current. Build materials include chromium-plated bezel and zamak fixing collar. Proven durability with certifications from EN/IEC, UL, CSA, JIS, and CE approvals.

Wide thermal operating range from -40°C to 70°C suitable for extreme conditions. Environmental protection ratings include IP66, 67, 69, 69K and IK06 impact resistance.
