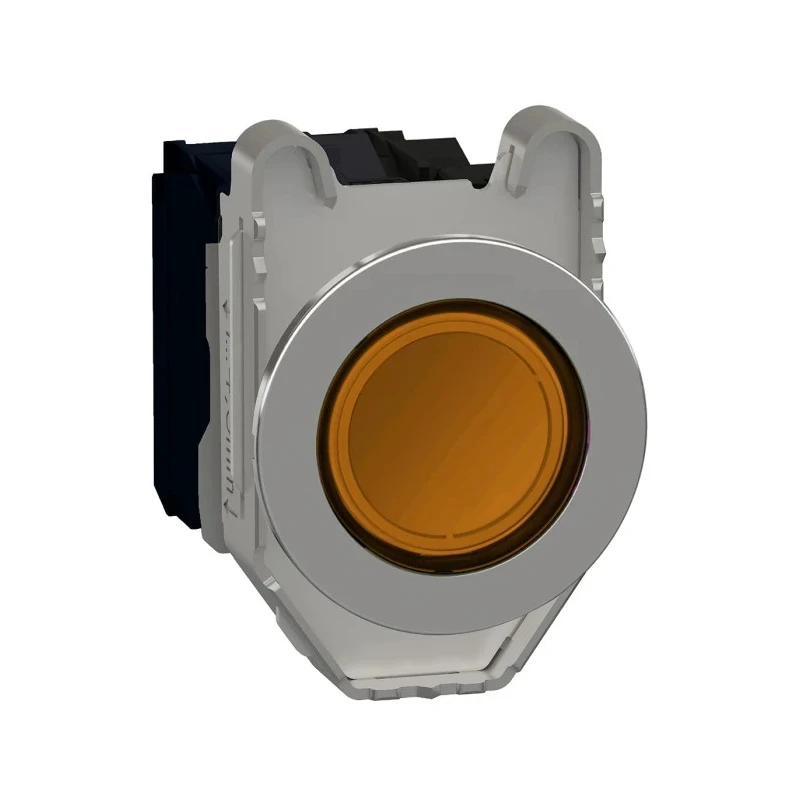

Schneider Electric XB4 Series Illuminated Push Button Switch Spring Return Panel 30 mm Cutout SPDT Orange LED XB4FW35B5
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Height | 47mm |
| Length | 55mm |
| Model | XB4FW35B5 |
| IP Rating | IP66, IP67, IP69, IP69K |
| Width | 36.6mm |
| Mount Type | Panel |
| Series | XB4 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Switch Configuration | 1 NO/1 NC |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 30 mm |
| Terminal type | Screw |
| LED Colour | Orange |
| Switch Operation | Spring Return |
| Actuator Colour | Orange |
| Contact DC Voltage | 600V |
| Actuator Style | Round |
| Switch Contact Current | 6A |
| Better World Claim | Repairable by the End User |
| Legend | Blank |
| Various types of connection are available | screw clamp, connector, Faston connector, spring terminal, or printed circuit board |
| Ideal in extreme environments | food and beverage, automotive, and outdoor use such as mining, water treatment, etc. Building and infrastructure |
Key Features
- The switch features a single-pole double-throw (SPDT) contact configuration.
- Built with an orange illuminated LED for clear visual indication.
- Operates reliably in temperatures ranging from -40°C to 70°C.
- Constructed for high durability with IP66, IP67, IP69, and IP69K ratings for protection against dust and water ingress.
- Designed with shake-proof terminal screws ensuring high vibration resistance.
- Compatible with various connection types including screw clamp and printed circuit board mounting.
- Complies with multiple standards including CSA, EN/IEC, UL, JIS, and CE certifications.
- Its modular design offers flexibility for customization and ease of installation.
Product Description
Schneider Electric XB4FW35B5 series illuminated push button switch offers high performance with a spring return mechanism and is designed for panel mounting featuring a 30 mm cutout size. This SPDT switch is equipped with an orange LED for enhanced visibility and status indication.
It operates reliably within a wide temperature range from -40°C to 70°C and supports both AC and DC voltages up to 600V, with 6A contact current capacity. The robust construction provides excellent protection with IP66, IP67, IP69, and IP69K ratings, making it suitable for demanding industrial environments.
The switch includes shake-proof terminal screws, offering high vibration resistance, and supports multiple connection methods such as screw clamp, connector, Faston, spring terminal, or PCB connections. Its modular design enables customization for diverse applications, facilitating ease and speed of installation.
This product meets a range of international standards and approvals including CSA C22.2 No 14, EN/IEC 60947 series, UL 508, JIS C8201, and CE marking, ensuring compliance and safety.
Applications encompass general industry, packaging, material handling, automotive, mining, water treatment, and various building infrastructure sectors such as energy distribution panels and commercial buildings.
The switch features a single-pole double-throw (SPDT) contact configuration. Orange illuminated LED indicator enhances status visibility. Robust IP66 to IP69K rating for harsh environmental protection. Wide operating temperature of -40°C to 70°C supports extreme conditions.
High vibration resistance with shake-proof terminal screws ensures reliability. Various connection options provide installation flexibility. Complies with CSA, IEC, UL, JIS, and CE standards for quality assurance. Compact and ergonomic design with flush mounting options for panel integration.
Suitable for industrial, commercial, and infrastructure applications. Explore EnvMart’s extensive range of Push Button Switches and electrical components by Schneider Electric for reliable automation and control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It features a single-pole double-throw (SPDT) contact configuration, allowing for versatile switching operations.
This model operates reliably within a maximum temperature of 70°C, making it suitable for a variety of environments.
It has an IP66, IP67, IP69, and IP69K rating, providing excellent protection against dust and water ingress.
It supports various connection types, including screw clamp, connector, Faston connector, spring terminal, and printed circuit board connections.
The required panel cutout size for this switch is 30 mm, designed for standard panel mounting.
This switch has a contact current capacity of 6A, suitable for a range of applications.
The minimum operating temperature for this model is -40°C, allowing it to function in extreme conditions.
It is suitable for applications in general industry, packaging, material handling, automotive, mining, and water treatment sectors.
It includes shake-proof terminal screws, ensuring high vibration resistance and reliability in demanding environments.
This switch complies with multiple standards, including CSA, EN/IEC, UL, JIS, and CE certifications, ensuring quality and safety.
The actuator style is round, and it features an orange color, enhancing visibility and status indication.
Its modular design facilitates customization and ease of installation, making it adaptable for various applications.
