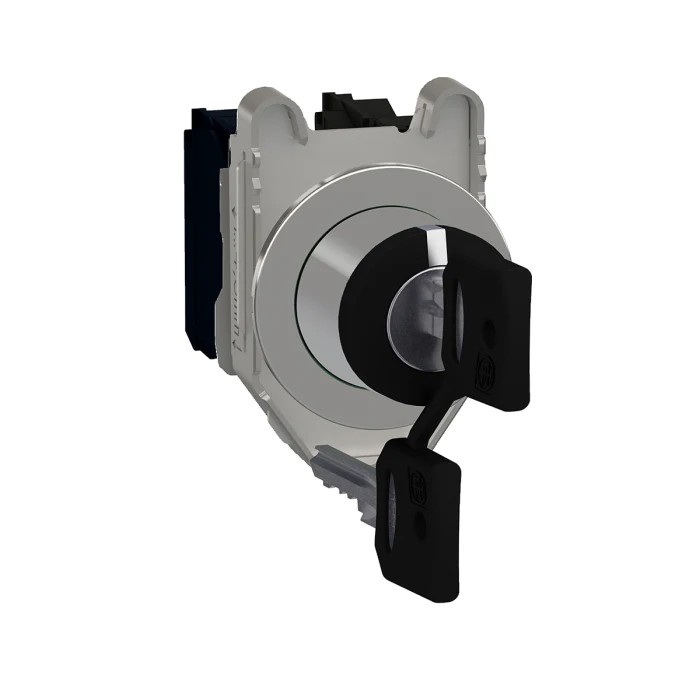

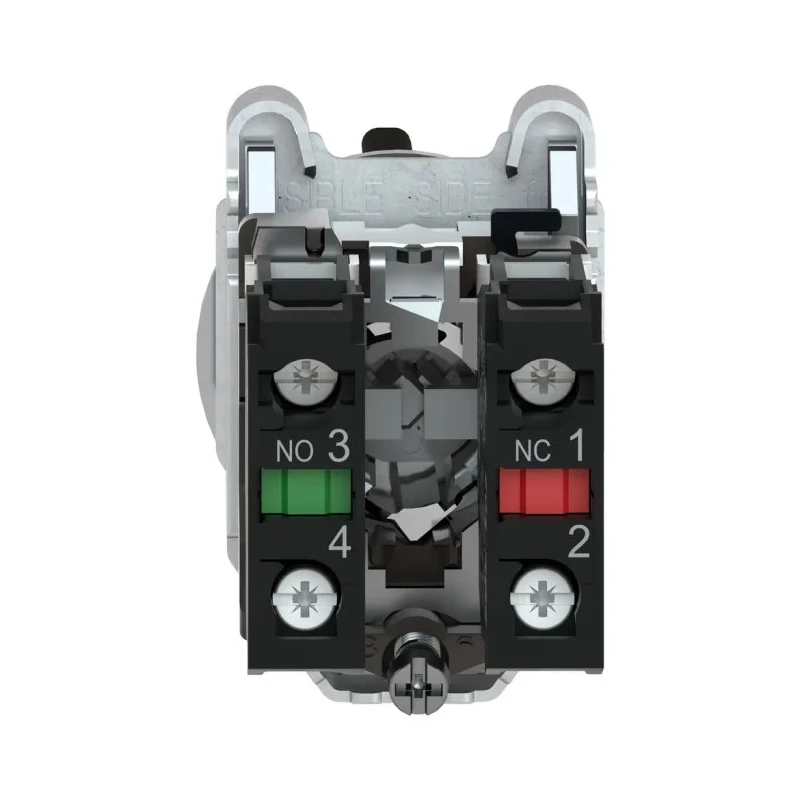

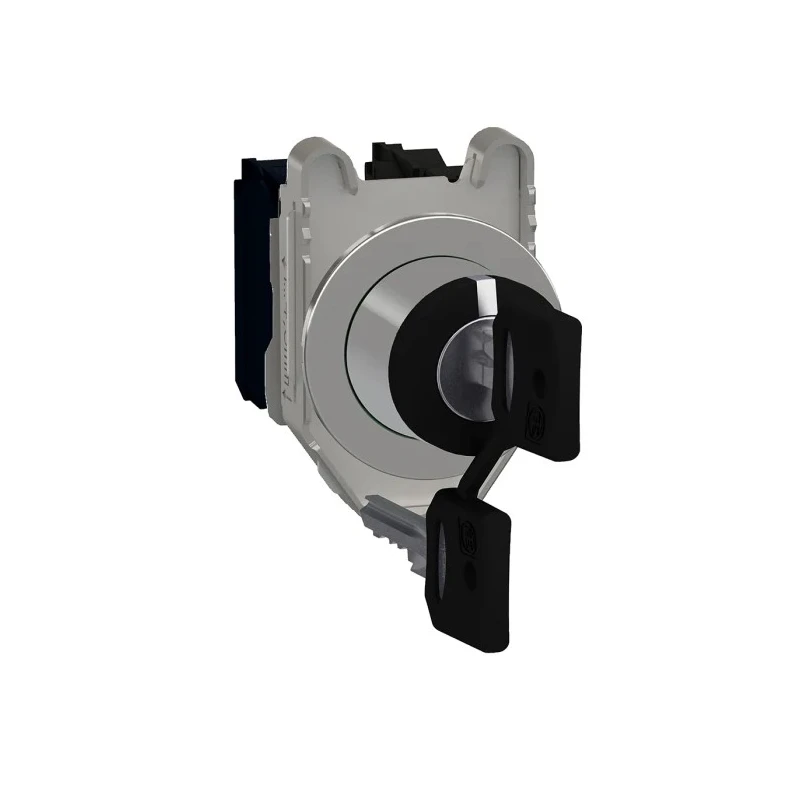

Schneider Electric Key Switch DPST 6A 3-Way 455 Ronis-Key XB4FG33
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Model | XB4FG33 |
| Contact Material | Silver Alloy |
| Series | XB4 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPST |
| Number of Positions | 3 |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Switch Operation | Stay Put |
| Contact DC Voltage | 600V dc |
| Switch Contact Current | 6A |
| Mechanical Life | 1000000Cycles |
| Contact AC Voltage | 600V ac |
| Better World Claim | Repairable by the End User |
| Key Type | 455, Ronis |
| Bezel Shape | Round |
| Key Index Angle | 45° |
| Various types of connection are available | screw clamp, connector, Faston connector, spring terminal, or printed circuit board |
| Ideal in extreme environments | food and beverage, automotive, and outdoor use such as mining, water treatment, etc. Building and infrastructure |
Key Features
- Equipped with DPST contact configuration for dual pole switching at 6 amps.
- Three-position stay-put operation with 455 Ronis key type ensures secure control.
- Contact voltage rated for up to 600 V AC and DC for versatile applications.
- Features high mechanical life of 1,000,000 cycles and operates reliably between -40°C to 70°C.
- Flush mount design with chromium-plated bezel and zamak fixing collar combines robustness with aesthetics.
- IP66, 67, 69, and 69K rated protection against dust, water, and impact for harsh environments.
- Compatible with a wide range of accessories to customize installation on control panels.
- Silvery alloy contacts provide corrosion resistance and reliable electrical connectivity.
Product Description
Schneider Electric XB4FG33 is a robust key switch designed with a DPST (Double Pole Single Throw) contact configuration rated for 6 amps, supporting a 3-way operation using 455 Ronis keys. The product features a round bezel made of chromium-plated metal with a flush mount design that caters to ergonomic and aesthetic requirements in industrial control panels.
This key switch supports a wide operating temperature range from -40°C to 70°C and a mechanical life expectancy of 1,000,000 cycles, ensuring long-term durability and performance. It offers contact voltage ratings of up to 600 volts AC and DC, making it suitable for various electrical and automation applications.
The switch is designed with silver alloy contacts that enhance conductivity and resist corrosion. The mounting diameter is 30.5 mm, compatible with standard panel cutouts and easy installation using a cross head screwdriver. The fixing collar is made from zamak, further enhancing mechanical robustness.
With protection ratings of IP66, 67, 69, and 69K, this key switch withstands harsh environmental conditions including dust, water ingress, and high-impact forces, making it ideal for demanding industrial and outdoor environments such as mining, water treatment plants, food processing, automotive, and building infrastructure.
The XB4FG33 is part of Schneider Electric's Harmony XB4 series offering modularity through a large set of accessories including flush mounting kits, metal rings, protective washers, and spacers to enable customization and flexibility of installation.
DPST contact configuration rated at 6A current ensures reliable switching. 3-position stay put operation with key type 455 Ronis. Flush-mounted round chromium-plated bezel with zamak collar for durability. Silver alloy contacts resist corrosion and maintain performance.
Operating temperature range from -40°C to 70°C supports extreme environments. High mechanical life of 1 million cycles guarantees longevity. Protection ratings IP66, 67, 69, and 69K against dust, water, and impact. Mounting diameter of 30.5 mm for easy panel installation.
Compatible with various connection types and a broad range of accessories. Suitable for industrial, automotive, food and beverage, water treatment applications.
This product is ideal for industrial automation and control wherever secure key-operated switching is required. Schneider Electric's Key Switch XB4FG33 offers high performance combined with ease of installation and customization options. Discover the wide range of switches and accessories in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The XB4FG33 key switch features a DPST (Double Pole Single Throw) contact configuration.
This key switch can operate at a maximum temperature of 70°C.
The mechanical life expectancy of this key switch is 1,000,000 cycles.
It supports contact voltage ratings of up to 600V AC and 600V DC.
The XB4FG33 uses a 455 Ronis key type for its operation.
The mounting diameter for this key switch is 30.5 mm, making it compatible with standard panel cutouts.
This model has protection ratings of IP66, 67, 69, and 69K, ensuring resistance against dust, water, and impact.
The contacts of the XB4FG33 are made of silver alloy, which enhances conductivity and resists corrosion.
This key switch operates with a stay-put mechanism, allowing it to maintain its position until manually changed.
This key switch is ideal for extreme environments, including food and beverage, automotive, mining, and water treatment applications.
Various connection types are available, including screw clamp, connector, Faston connector, spring terminal, or printed circuit board.
Yes, it is compatible with a wide range of accessories for customization during installation on control panels.
