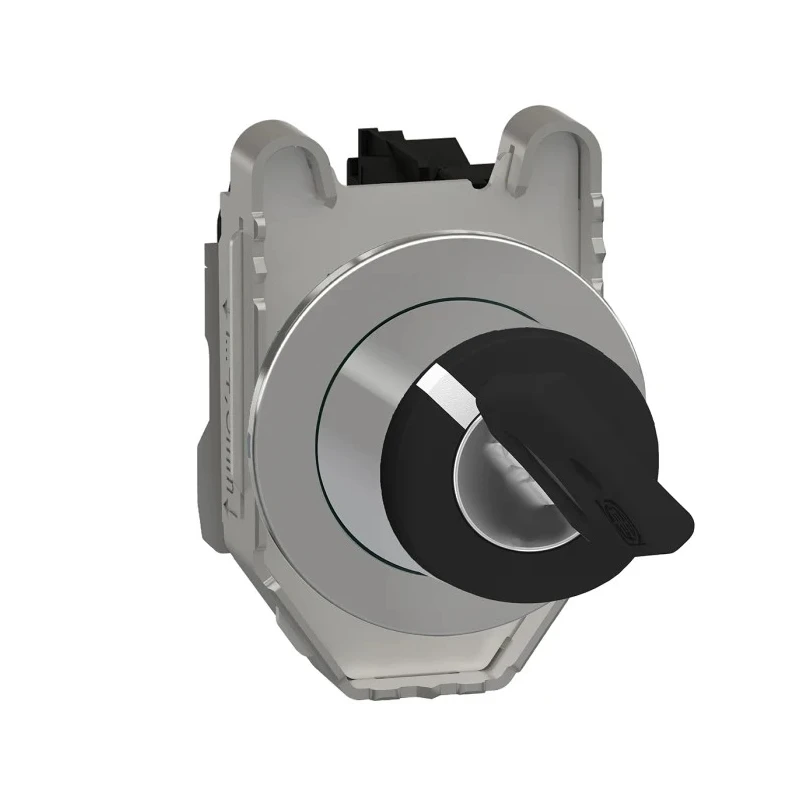

Schneider Electric Key Switch SPST 6A 2-Position Spring Return Ronis 455 Key Round Bezel XB4FG61

Schneider Electric XB4FG61 Key Switch is a high-performance, flush-mounted SPST electrical switch designed for industrial and commercial applications. It supports 2 positions with a 90-degree spring return to the left, operated by a Ronis 455 key for secure and reliable access control.

This key switch features a round chromium-plated bezel and a zamak fixing collar, combining ergonomic design with strong mechanical protection. Its silver alloy contacts with a rated current of 6A ensure robust electrical performance. The switch can safely handle an AC and DC voltage of up to 600V, fitting into panels with a mounting diameter of 30.5 mm.

With an operating temperature range from -40°C to 70°C, this key switch performs reliably in harsh environments such as food and beverage processing, automotive, mining, and water treatment industries. The unit boasts a mechanical life of 1 million cycles, underscoring its durability in demanding industrial use.

Featuring high ingress protection ratings of IP66, IP67, IP69, and IP69K, the XB4FG61 is resistant to dust, water, and high impacts (IK06), making it suitable for outdoor and heavy-duty environments. The switch uses a screw clamp terminal connection for secure wiring and features a flush mount design that caters to safety, aesthetics, and ergonomic installation.

Accessories such as metal circular blanking plugs, spacers, protective washers, and flush mounting kits are available separately to customize installation. The switch is compliant with EN/IEC, CE, UL, CSA, CCC, EAC, JIS, and marine approvals, ensuring international standards are met.

Flush mounted design for ergonomic use and aesthetics. Operates at 6A with SPST contact configuration. Features a 90° key index angle with 2-position spring return operation. Compatible with key number 455 for secure panel access.

Equipped with silver alloy contacts for reliable conductivity. Designed to operate in temperatures from -40°C to 70°C. Mounting diameter of 30.5 mm fits standard panels. Protected with IP66, 67, 69, 69K and IK06 impact resistance ratings.

Includes chromium-plated bezel and zamak fixing collar for durability. Large mechanical life rating of 1,000,000 cycles supports industrial applications.

This Key Switch is ideal for applications in industrial automation, electrical control panels, manufacturing, and infrastructure projects where secure and durable key-operated switching is required. Schneider Electric’s modular design ensures flexibility, ease of installation, and adaptability in various environments.
