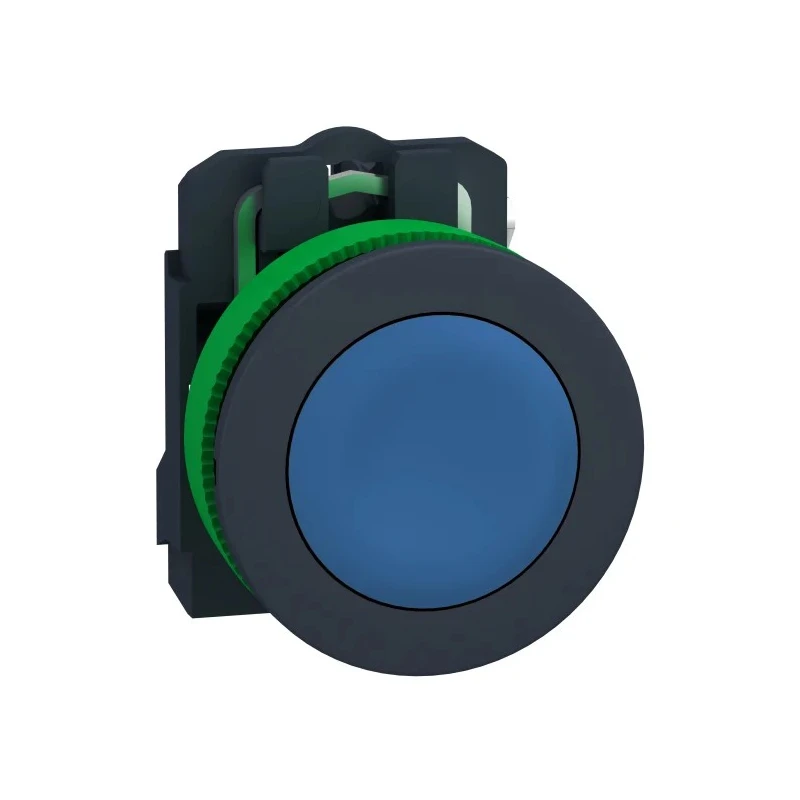

Schneider Electric Harmony Series Push Button Switch Spring Return Panel Mount 30 mm Cutout SPST Blue LED IP69 600 V XB5FA61

Schneider Electric XB5FA61 is a Harmony Series push button switch designed for industrial and commercial panel applications. It features a spring return actuator with blue LED indication and a 30 mm panel cutout size. This switch offers a Single Pole Single Throw (SPST) contact configuration with a 600 V rating for both AC and DC voltages. The device is panel mounted with a flush mount plastic bezel and fixing collar, featuring improved ergonomics for easy handling and installation.

Constructed for robustness, the switch supports extreme operating temperatures from -40°C to 70°C and is resistant to chemicals such as cleaning solvents, alcohol, detergents, and cutting oils. Its IP69 rating provides high-level protection against dust and high-pressure water jets, ideal for food and beverage, marine, and other demanding industrial environments.

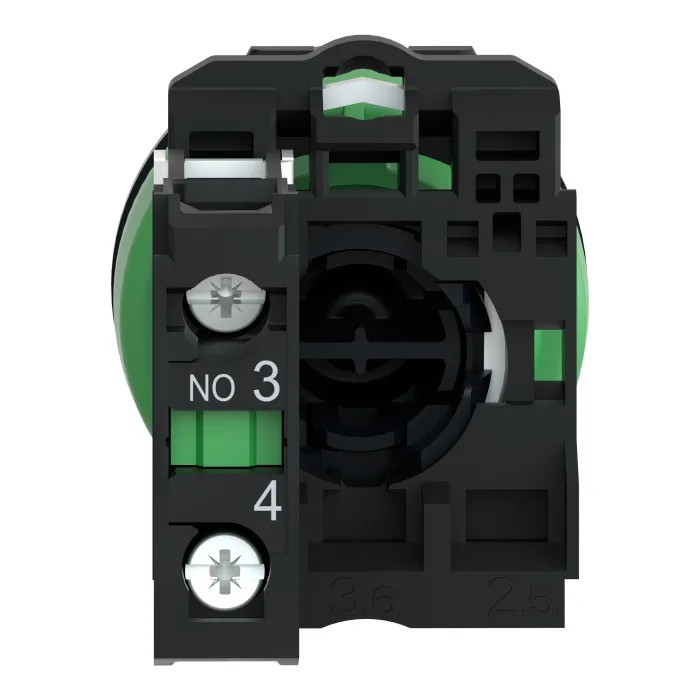

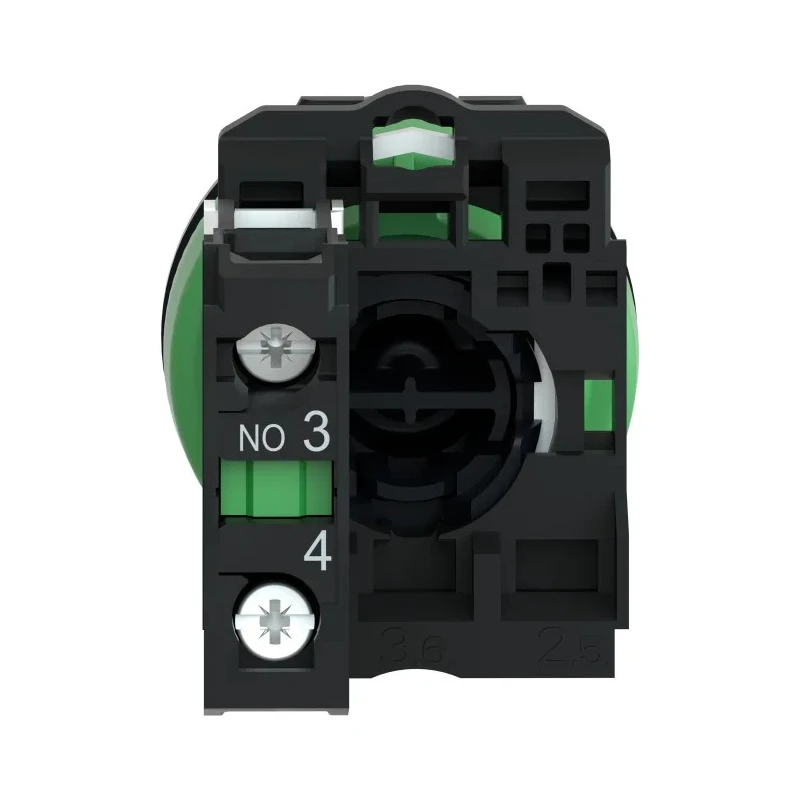

The actuator style is round and blue, with antimicrobial properties enhancing hygiene in sensitive settings. The contact system uses a 1NO slow break contact rated at 6 A current. The terminal type is a screw clamp, ensuring secure wiring connections to the panel. This model complies with several international standards including EN/IEC 60947 series, UL 508, CSA C22.2, JIS, and more, supporting global applications and approvals.

Installation is straightforward using a cross-head screwdriver with fast and secure mounting. Various connection types and contact blocks are offered to customize the switch for general or specialized uses. The device weight is light at 37 grams, making it easy to handle and install.

The switch is designed with high vibration resistance and chemical robustness. It supports a wide range of industrial segments through flexibility and adaptability. Accessories are available to extend functionality and customize installations.

Flush mount design improves panel aesthetics and reduces installation depth. Offers reliable operation in harsh and extreme environments.

Schneider Electric’s Harmony Series Push Button Switches are suitable for use across industrial automation, manufacturing, marine, food and beverage processing, and building infrastructure applications. This model, XB5FA61, ensures durability, safety, and performance, contributing to efficient and sustainable industrial automation solutions. Explore more Schneider Electric products and the Harmony Series range at EnvMart.
