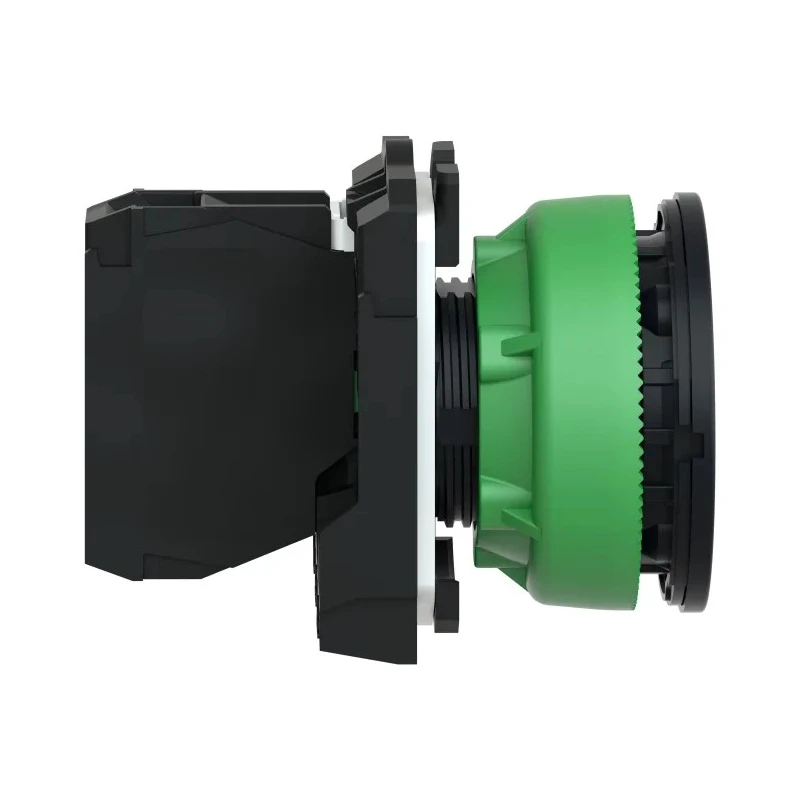

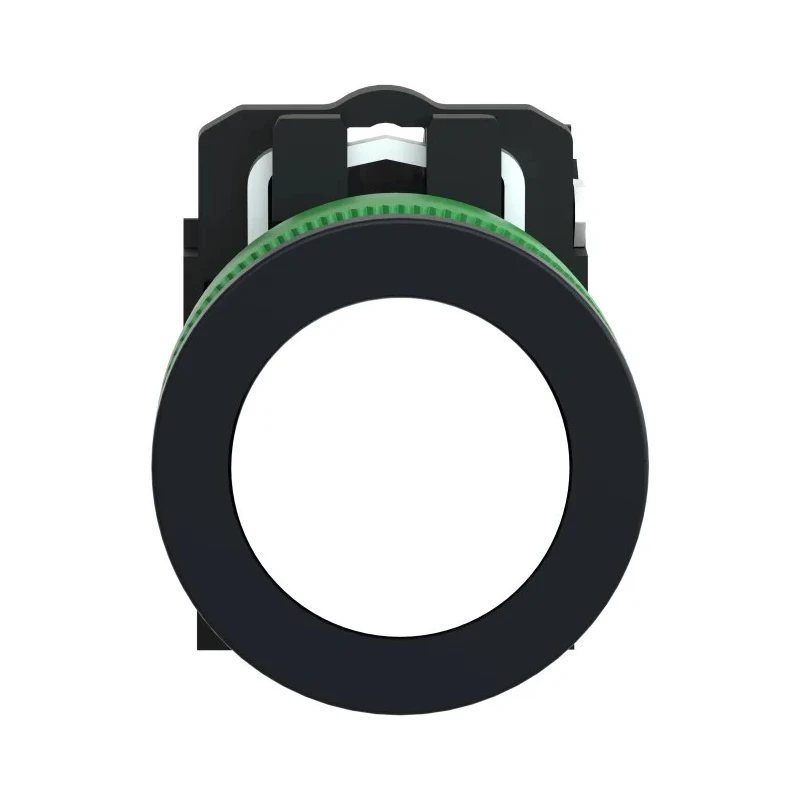

Schneider Electric Harmony Series Push Button Switch Spring Return Panel Mount 30 mm Cutout SPST White LED IP69 600V XB5FA11

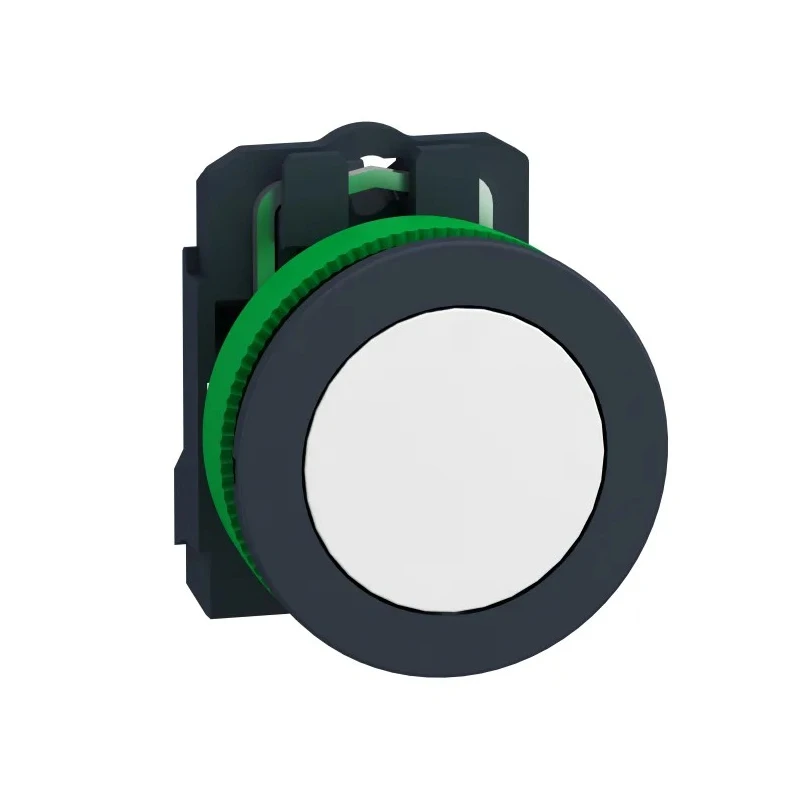

Schneider Electric XB5FA11 Harmony Series Push Button Switch is designed for industrial, electrical automation, and panel control applications where reliable manual operation is required. It features a spring return actuator with a white round flush push button style, ideal for aesthetic and ergonomic panel integration.

The switch has a standard 30 mm panel cutout size with a mounting diameter of 30.5 mm. It offers a single-pole single-throw (SPST) contact configuration, operating at 600 V for both AC and DC voltages with a switch contact current rating of 6 A. The terminal connection is via screw clamps ensuring secure wiring. The white LED illumination provides clear status indication in control panels.

This push button switch complies with high ingress protection ratings IP66, IP67, IP69, and IP69K, making it highly resistant to dust, water jets, and high-pressure cleaning typical in industrial and food processing environments. Operating temperature ranges from -40°C to 70°C ensure stable performance in extreme climates.

Constructed with a plastic bezel and fixing collar, the switch is lightweight at 37 grams with compact dimensions (height 42 mm, width 36.6 mm, length 55 mm), simplifying installation and panel integration. The device is built to high standards with certifications including EN/IEC 60947 series, UL 508, CSA C22.2, JIS, ISO 22196, ISO 21702, and marine approvals, confirming suitability for stringent industrial regulations.

Additional features include antimicrobial characteristics for hygienic applications, high chemical robustness suitable for cleaning agents and detergents, and vibration resistance aided by shake-proof terminal screws. Accessories for customization and installation facilitation are available separately. The switch is eco-friendly, RoHS and WEEE compliant, and includes 1 unit per package.

Ideal for use in industrial automation, electrical control panels, food and beverage processing, marine environments, and building infrastructure projects requiring robust, reliable manual controls. This product supports Schneider Electric’s commitment to sustainability and durable design.

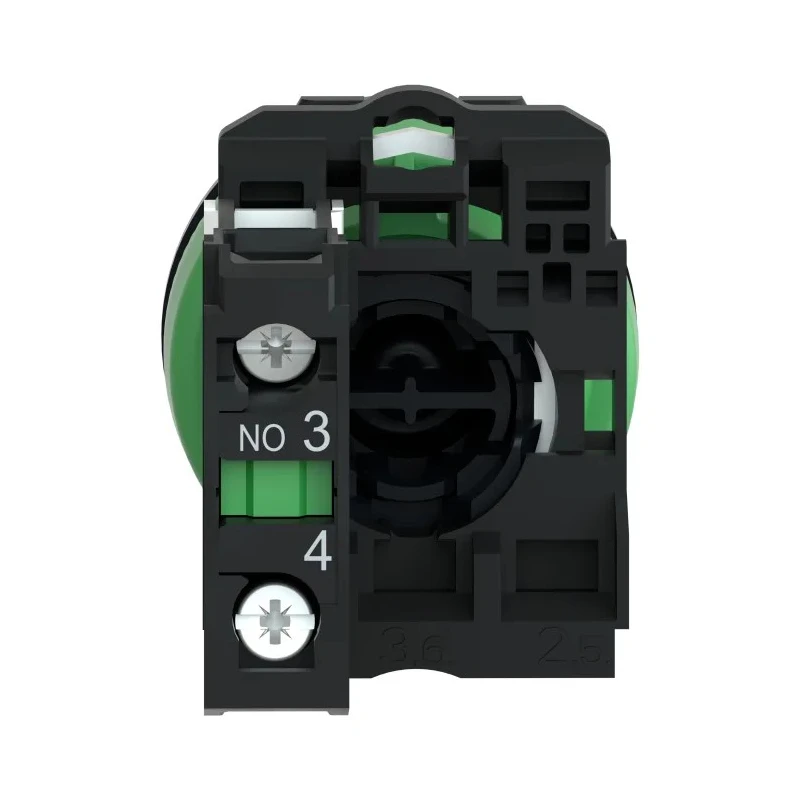

The actuator color is white with a round style and flush push mechanism. Mounting diameter is 30.5 mm suitable for standard panel cutouts. Contact type is 1NO slow break with screw clamp terminals. Meets protection ratings IP66, IP67, IP69, and IP69K for solid, dust, water, and shock resistance.

Operates reliably in temperatures from -40°C up to 70°C. Certified to international standards including EN/IEC, UL, CSA, JIS, ISO, and marine approvals. Robust plastic bezel and fixing collar provide durability and improved ergonomics.

Weighs approximately 37 grams with compact dimensions: height 42 mm, width 36.6 mm, length 55 mm. Offers high chemical resistance and vibration stability with shake-proof terminal screws. Packaging contains 1 unit of the Push Button Switch.
