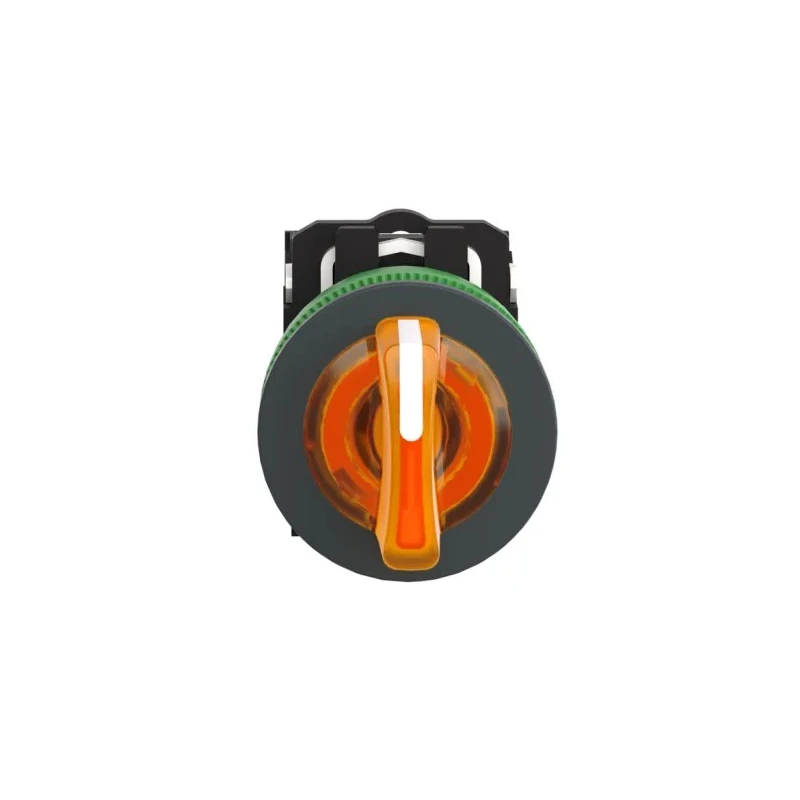

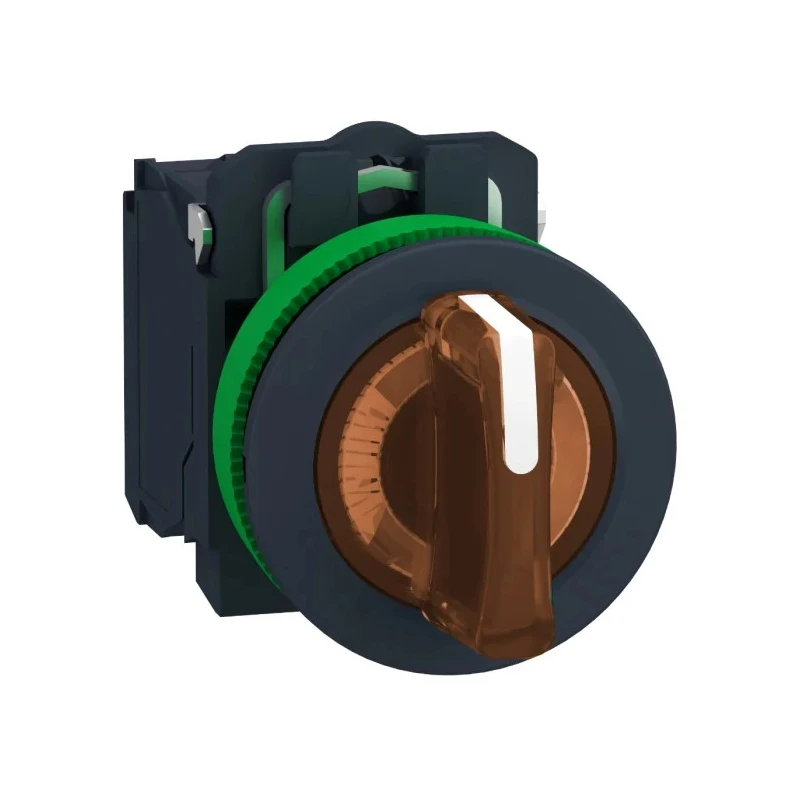

Schneider Electric Selector Switch Illuminated 3 Positions SPDT 30 mm Cutout Diameter XB5FK135B5

Schneider Electric XB5FK135B5 Selector Switch is a robust and ergonomically designed illuminated selector switch with 3 positions and a SPDT contact configuration, featuring a 30 mm cutout diameter for flush mounting.

This product operates at a rated supply voltage of 24 V AC/DC with a universal LED light source ensuring reliable illumination. The orange handle with ±45 degree stay put positions provides intuitive and secure switching operations.

The switch contacts consist of 1 normally open (NO) and 1 normally closed (NC) slow break contacts, connected via screw clamp terminals, enhancing reliability and ease of wiring. Its round head, plastic bezel, and fixing collar combine functional design with durable materials.

Protection ratings include IP66, IP67, IP69, and IP69K, offering excellent resistance against dust ingress, water jets, high pressure, and mechanical impacts (IK03), making it suitable for demanding industrial environments. The switch weighs 56 grams and measures 42 mm in height and 36.6 mm in width, ensuring compact installation footprint.

Certified to international standards including EN/IEC, CE, UL, CSA, JIS, and NEMA, and featuring marine approvals, the product meets stringent quality and safety requirements. Installation is straightforward using a cross head screwdriver, supported by optional accessories such as metal rings, spacers, and protective washers to customize the setup.

This selector switch is ideal for industrial applications ranging from food and beverage processing to marine and building infrastructure sectors, offering high chemical robustness and vibration resistance. The product is Green Premium labeled and complies with RoHS, WEEE, and REACh environmental directives.

Package includes one unit of the Schneider Electric XB5FK135B5 Selector Switch. For more solutions in selector Switches and electrical automation, explore the comprehensive range at EnvMart.

The switch features a flush mount design with an orange standard handle and 3 positions ±45 degree stay put operation. Rated supply voltage is 24 V AC/DC with a universal LED light source for illumination. Contact configuration includes 1NO and 1NC slow break contacts with screw clamp terminals.

The device offers high protection ratings IP66, IP67, IP69, and IP69K against dust, water, and impacts. It is suitable for industrial sectors requiring chemical robustness and high vibration resistance. The switch head is round with plastic bezel and fixing collar, weighing 56 grams with dimensions 42 mm height and 36.6 mm width.

Installation is simple using a cross head screwdriver, supported by various dedicated accessories. Certified with EN/IEC, CE marking, UL, CSA, JIS, NEMA, and marine approvals for global compliance. Environmental compliance includes RoHS, WEEE, and REACh directives; the product is labeled Green Premium.
