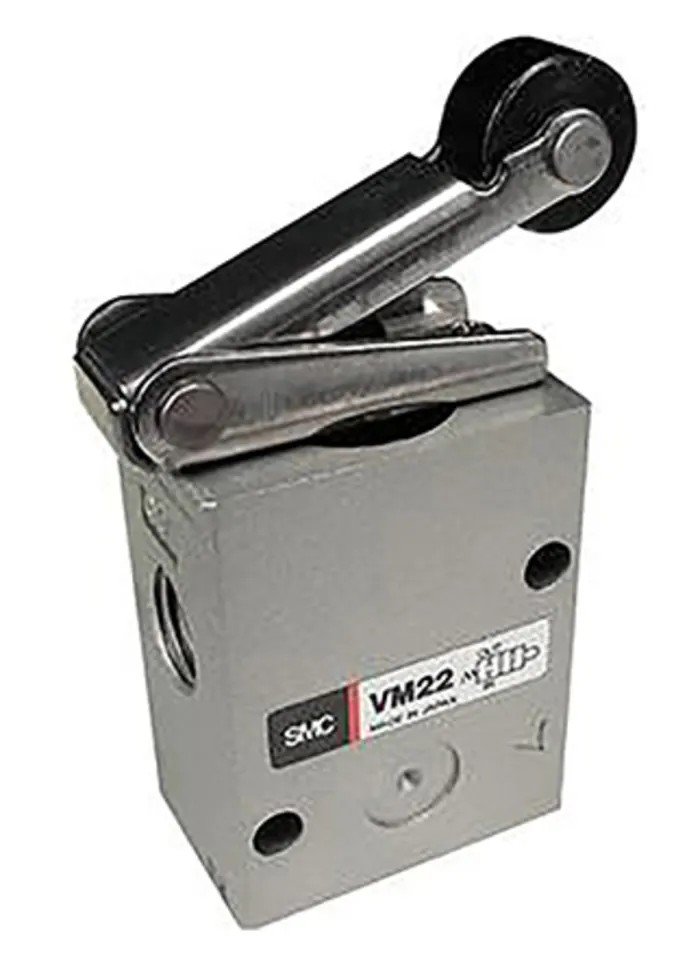

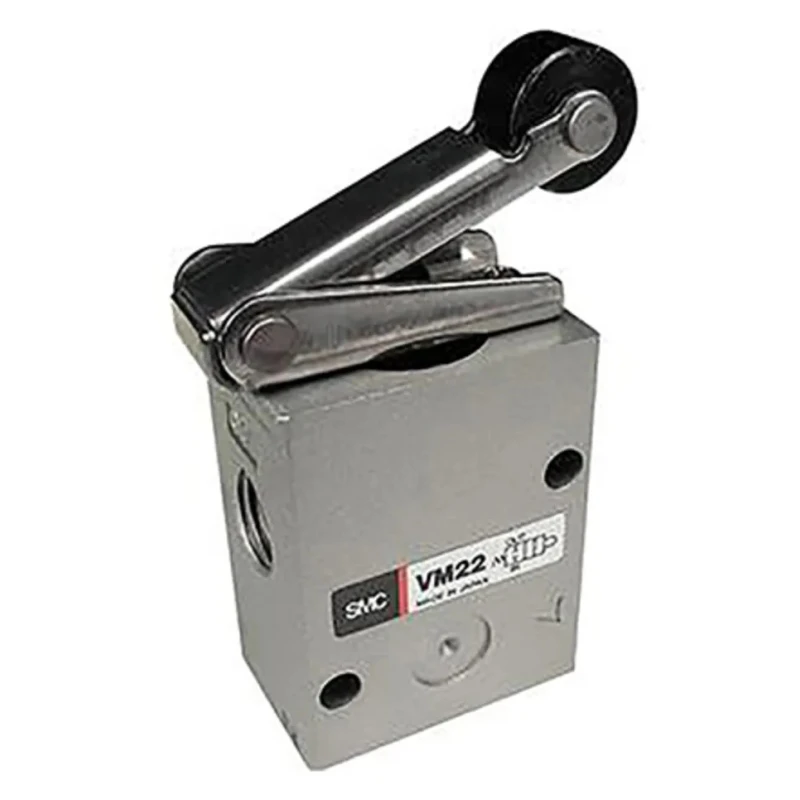

SMC Roller Lever Mechanical Valve VM200 Series Rc R 1/4 3-Port 3/2-Way Spring Return

Free Delivery in India | Lowest Global Shipping Charges

SMC Roller Lever Mechanical Valve VM200 Series Rc R 1/4 3-Port 3/2-Way Spring Return



Category Pneumatic Manual Control Valves Brand SMC Condition New

Specifications

Country of Origin	Japan
Brand	SMC
Maximum Operating Pressure	1 Mpa
Height	84mm
Length	40mm
Model	VM200
Width	25mm
Series	VM200
Number Of Ports	3
Maximum Operating Temperature	+60°C
Thread Size	1/4
Port Type	Side
Port Size	R 1/4
Minimum Operating Temperature	-5°C
Maximum Flow Rate	1088L/min
Control Mechanism	Roller Lever
Connection Thread Standard	Rc
Valve Function	3/2
Control Button/Switch Colour	Green, Red, Yellow, Black

Key Features

This mechanical valve is actuated by a roller lever with a spring return for a defined default position.
It has a maximum operating pressure of 1.0 MPa suitable for robust pneumatic systems.
Flow capacity reaches up to 1088 L/min, supporting high throughput air or inert gas applications.
Rated for operation between -5°C and +60°C, ensuring versatile ambient temperature compatibility.
The 3-port 3/2-way design allows for precise directional control with a closed normal position.
Compact dimensions of 40 mm length, 25 mm width, and 84 mm height facilitate installation in constrained spaces.

Product Description

SMC VM230-02-01A roller lever mechanical valve from the VM200 Series is a compact pneumatic directional control valve designed for air and inert gas systems. It features a 3/2-way function with three ports and a closed normal position with spring return, ideal for precise mechanical control of airflow.

The valve uses Rc standard R 1/4 side port threaded connections for both inlet and exhaust, compatible with 1/4 thread fittings commonly used in pneumatic circuits.

Its roller lever actuation combined with a mechanical spring return ensures immediate response and a defined default valve state, suitable for various industrial environments requiring reliable manual control.

The device operates at a maximum pressure of 1.0 MPa and supports flow rates up to 1088 L/min, making it suitable for high throughput pneumatic control tasks. Operating temperature ranges from -5°C to +60°C, allowing use in diverse ambient conditions.

This valve finds applications in machine tooling pneumatic circuits, pick-and-place fixtures requiring rapid exhaust, manual override stations, conveyor blow-off pneumatic sequences, and compact test benches where side port valves are preferred.

This mechanical valve is actuated by a roller lever with a spring return for a defined default position. It has a maximum operating pressure of 1.0 MPa suitable for robust pneumatic systems. Flow capacity reaches up to 1088 L/min, supporting high throughput air or inert gas applications.

Rated for operation between -5°C and +60°C, ensuring versatile ambient temperature compatibility. The 3-port 3/2-way design allows for precise directional control with a closed normal position. Available in multiple actuator switch colours: green, red, yellow, and black for visual identification.

Compact dimensions of 40 mm length, 25 mm width, and 84 mm height facilitate installation in constrained spaces. The product is manufactured in Japan and is new, meeting quality standards for industrial Pneumatic Manual Control Valves.

Explore the SMC brand and the VM200 Series for reliable pneumatic valve solutions at EnvMart for your industrial pneumatic control needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum operating pressure of the SMC Roller Lever Mechanical Valve VM200 Series is 1.0 MPa.

This model has a flow capacity of up to 1088 L/min, suitable for high throughput applications.

The valve measures 40 mm in length, 25 mm in width, and 84 mm in height.

It operates within a temperature range of -5°C to +60°C.

The valve uses Rc standard R 1/4 side port threaded connections for both inlet and exhaust.

This valve features a 3/2-way function with a closed normal position, actuated by a roller lever with a spring return.

The specific materials used for the valve's construction are not detailed in the provided information.

The control button or switch is available in green, red, yellow, and black for visual identification.

This valve is suitable for applications such as machine tooling pneumatic circuits, pick-and-place fixtures, and conveyor blow-off pneumatic sequences.

The valve is manufactured in Japan.

The control mechanism for this valve is a roller lever.

The valve is available in multiple actuator switch colors, but no other variants or options are specified in the provided information.
