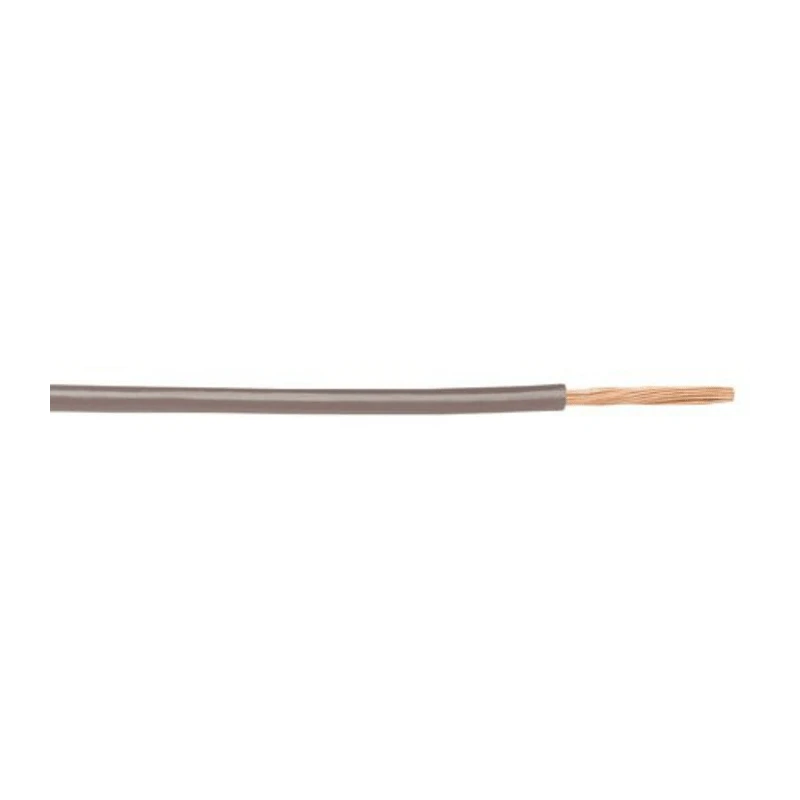

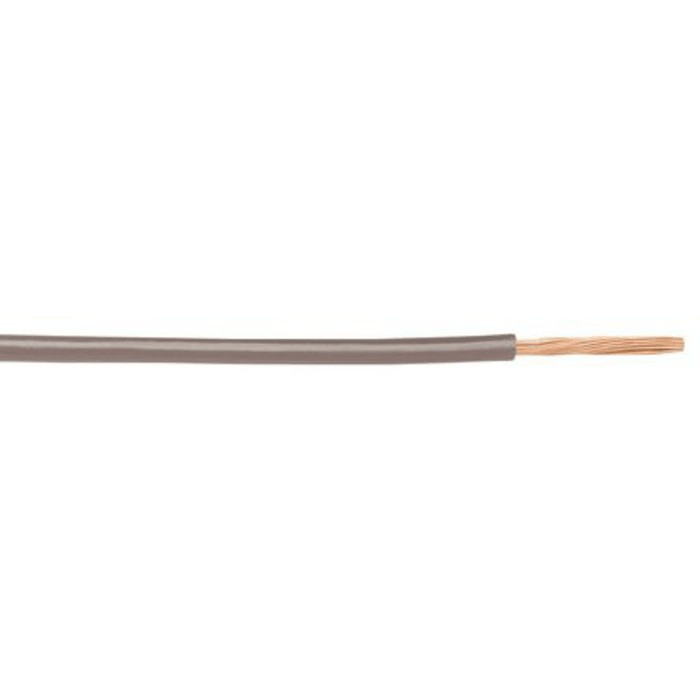

Alpha Wire Hookup Wire PVC Series Grey 2.1 mm² 14 AWG 41/0.25 mm Core Strands 30 m Polyvinyl 1559 SL005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1kV |
| Brand | Alpha Wire |
| Temperature range | -40°C to +80°C |
| CROSS SECTIONAL AREA | 2.1mm² |
| Model | 1559 SL005 |
| Cable Length | 30m |
| Series | Hookup Wire PVC |
| Outside diameter | 2.34mm |
| Maximum Operating Temperature | 80°C |
| Conductor Material | Copper |
| Sub Type | 1559 Hookup Wire |
| Cable Type | Hookup |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | Military MIL-W-76B TYPE MW |
| Jacket Colour | Grey |
| American Wire Gauge | 14AWG |
| Number of Strands | 41 |
| Core Strands | 41 x 0.25mm |
| Size of Strands | 0.25mm |
| RS PRO Grey 2.5 mm² Hook Up Wire, 14 AWG, 100 m, Polyvinyl ChlorideBrand | RS PRO |
| Mil-spec compliance | MIL-W-76 B Type MW |
Key Features
- The cable has a cross sectional area of 2.1 mm², suitable for 14 AWG requirements.
- It features a stranded copper conductor with 41 strands of 0.25 mm diameter each.
- The PVC jacket is grey, providing color-coding for easy circuit identification.
- The wire operates reliably between -40°C and +80°C with excellent flame and abrasion resistance.
- It is compliant with military MIL-W-76B TYPE MW specifications.
- The overall cable diameter is 2.34 mm, supporting a voltage rating of 1 kV.
- The wire length is 30 meters, ideal for electronic equipment wiring.
- Polyvinyl chloride insulation ensures durable protection suited for harsh environments.
Product Description
Alpha Wire 1559 SL005 Hookup Wire PVC Series Grey 2.1 mm² 14 AWG 41/0.25 mm core strands 30 m Polyvinyl is a high-performance hook-up wire engineered for military and industrial electronic applications. This wire conforms to MIL-W-76B TYPE MW standards, making it suitable for use in defense and demanding electronics environments.
The stranded copper conductor comprises 41 strands each 0.25 mm in diameter, providing flexibility and durability while maintaining excellent electrical conductivity. The grey polyvinyl chloride (PVC) jacket offers robust insulation with superior abrasion and flame resistance, ensuring long-lasting protection in harsh or temperature-variable environments.
The cable supports a maximum operating voltage of 1 kV and can operate safely across a temperature range of -40°C to +80°C. With an outside diameter of 2.34 mm and a cable length of 30 meters, it is ideal for wiring control cabinets, machine tools, transformers, and switchboards in industrial settings, including high-temperature ovens and off-road construction equipment.
The cable cross section area is 2.1 mm², designed as 14 AWG wire standard. Insulation material is polyvinyl chloride, providing excellent chemical and mechanical protection. Compliance to military standards ensures reliable performance under shock, temperature extremes, and chemical exposure.
Color-coded grey jacket enables easy circuit identification and maintenance. Durability enhanced by PVC insulation’s flame and abrasion resistance. Temperature operating range from -40°C to +80°C suits a variety of industrial and military installations.
The stranded conductor design improves flexibility for easier installation in confined spaces.
This product is designed for control cabinets in protected environments, military and industrial electronic equipment, off-road construction, high temperature applications, and transformers. It meets CA Prop 65 and RoHS standards.
Explore our comprehensive catalog of hook-up wires and related cables to find compatible industrial wiring solutions.
Explore more products in our Hook Up Wire category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The wire has a cross-sectional area of 2.1 mm², which is suitable for 14 AWG requirements.
This model supports a maximum operating voltage of 1 kV.
It operates reliably between -40°C and +80°C.
The stranded copper conductor comprises 41 strands, each with a diameter of 0.25 mm.
The overall cable diameter is 2.34 mm.
The insulation material is polyvinyl chloride (PVC), providing excellent protection.
Yes, it complies with military MIL-W-76B TYPE MW specifications.
The wire length is 30 meters, suitable for various wiring applications.
It is ideal for use in control cabinets, machine tools, transformers, and switchboards in industrial settings.
The jacket is grey, which aids in color-coding for easy circuit identification.
The conductor material is copper, which provides good electrical conductivity.
The PVC jacket offers excellent flame and abrasion resistance, ensuring long-lasting protection in harsh environments.
