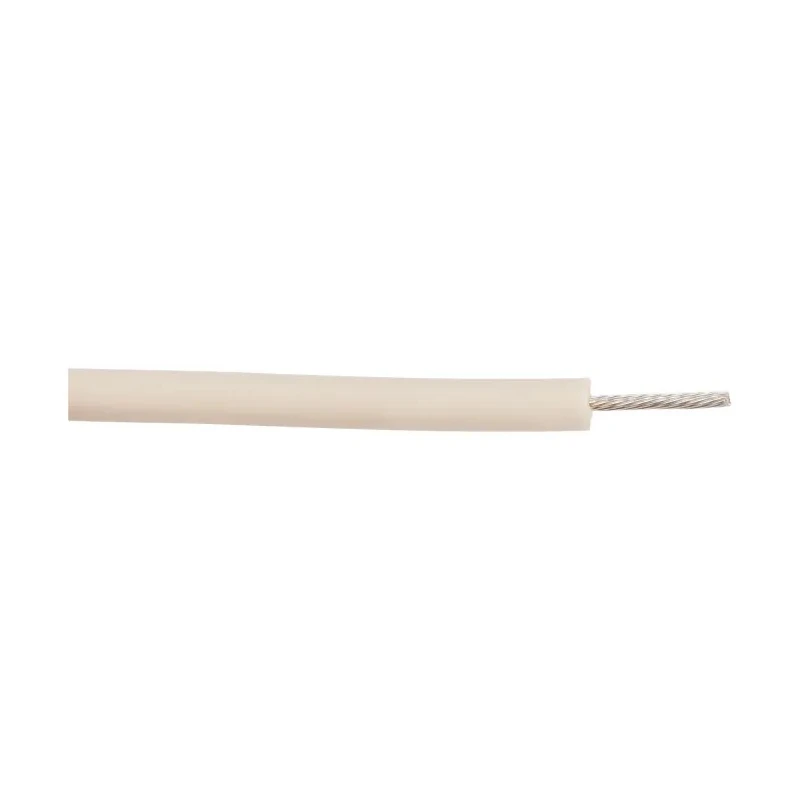

Alpha Wire Hook Up Wire Silicone Series White 0.75mm² Cross Section, 18 AWG, Silver Plated Copper Conductor 39X1825 WH005

Alpha Wire 39X1825 WH005 Hook Up Wire Silicone Series is engineered to meet the demanding requirements of electrical, automation, and industrial wiring applications. This single core hook-up wire features a precise 0.75 mm² cross sectional area, giving it optimized conductivity with 19 strands of 0.25 mm silver plated copper conductor. The jacket is made from high-quality silicone rubber that is flame retardant and offers excellent resistance to oils, chemicals, and solvents.

Rated for operation in temperatures ranging from -40 °C up to 200 °C, this wire is designed to perform reliably in harsh industrial environments and high temperature assemblies such as control panels, automation systems, and industrial equipment wiring. With an outside diameter of 4.06 mm and a voltage endurance of 25 kV, it is well suited for high voltage installations.

The 18 AWG wire size balances flexibility with mechanical robustness, and the silver plating on the copper conductor increases conductivity and corrosion resistance. This product is compliant with CA Prop 65, RoHS, and UL VW-1 flame retardant standards, providing confidence in safety and regulatory compliance.

Applications include electrical assemblies in automation, control systems, industrial machinery, and equipment exposed to oils, solvents, and aggressive chemical environments. The white silicone jacket improves visibility and identification in wiring harnesses.

This hook-up wire is supplied in a 30.5 meter length to accommodate various wiring layouts. It is ideal for industrial, laboratory, commercial, and manufacturing use cases requiring durable, high-temperature resistant wiring solutions.

Wire features a 0.75 mm² cross sectional area for efficient conductivity. Constructed with silver plated copper conductor strands for enhanced electrical performance. Insulated with durable silicone rubber providing flame retardant and oil resistant properties.

Rated for continuous operation between -40 °C and 200 °C for extreme environment suitability. 18 AWG size with 19 x 0.25 mm strands offers mechanical flexibility and strength. Suitable voltage rating of up to 25 kV for high voltage resilience.

Meets CA Prop 65, RoHS, and UL VW-1 safety standards. Supplied in 30.5 meter length for extended installation reach. Explore more specifications and select from a wide range of hook-up wires at EnvMart for your industrial and electrical wiring needs.
