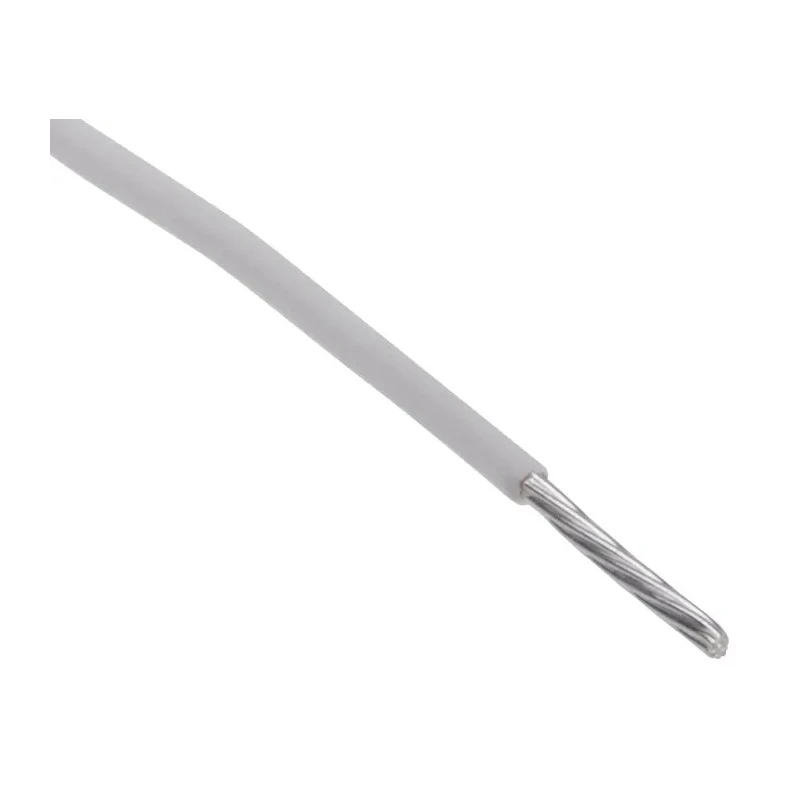

RS PRO White 0.12 mm² 26 AWG 7/0.15 mm Core Strands Hook Up Wire, 100 m, Polytetrafluoroethylene Insulation 841-7197
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 300V |
| Brand | RS PRO |
| CROSS SECTIONAL AREA | 0.12mm² |
| Model | 841-7197 |
| Cable Length | 100m |
| Outside diameter | 0.8mm |
| Maximum Operating Temperature | 200°C |
| Conductor Material | Silver Plated Copper |
| Sub Type | Type A |
| Cable Type | Equipment Wire |
| Minimum Operating Temperature | -75°C |
| Jacket Material | Polytetrafluoroethylene |
| Standards/Approvals | BS 3G 210:1996 |
| Jacket Colour | White |
| Fire Behaviour | Flame Retardant, Low Flammability, Low Smoke Halogen Free, Oil Resistant |
| American Wire Gauge | 26AWG |
| Number of Strands | 7 |
| Core Strands | 7 x 0.15mm |
| Size of Strands | 0.15mm |
| Standards/Approvals BS 3G 210 | 1996 |
| BS3G 210 | 1996 |
Key Features
- Silver plated copper conductor ensures excellent conductivity and corrosion resistance.
- Polytetrafluoroethylene jacket provides high temperature resistance up to 200°C.
- Flame retardant with low flammability, low smoke halogen free, and oil resistant properties.
- Operates reliably in a wide temperature range from -75°C to 200°C.
- Designed for equipment wiring with a maximum operating voltage of 300V.
- 7 strands of 0.15 mm core strands offer flexibility and durability.
- Suitable for harsh environments with resistance to oils, acids, sunlight, and other contaminants.
- Ideal for use in industrial, laboratory, HVAC, automotive, and aerospace applications.
Product Description
RS PRO 841-7197 is a high-quality white hook up wire featuring a 0.12 mm² cross-sectional area and 26 AWG silver plated copper conductor strands. The wire consists of 7 strands each measuring 0.15 mm, making it flexible yet durable for various electrical applications.
The cable is insulated with polytetrafluoroethylene (PTFE), known for its excellent dielectric properties and superior temperature resistance, capable of operating continuously at temperatures up to 200°C and as low as -75°C. This insulation also provides flame retardant, low smoke halogen free, and oil resistant characteristics, making it suitable for harsh environmental conditions.
The wire is constructed to meet BS 3G 210:1996 standards and is classified as equipment wire with a maximum voltage rating of 300V. Its small outside diameter of 0.8 mm allows for precise and compact wiring solutions in sensitive equipment or areas with limited space.
Designed to perform excellently in environments exposed to oils, acids, UV sunlight, and other contaminants, this cable is ideal for applications in industrial facilities, automotive engines, laboratories, aeronautical equipment, and petrol stations, where durability and performance under harsh conditions are critical.
The 100 meter length of this Hook Up Wire facilitates long runs without frequent splicing, improving reliability and reducing installation time in manufacturing and electrical automation usages.
Silver plated copper conductor. PTFE insulation per BS3G 210 for harsh environment resistance. Flame retardant, low smoke halogen free, oil resistant jacket. Operating temperature range from -75°C to 200°C. Complies with BS 3G 210:1996 standards.
Maximum voltage rating of 300V. 7 strands of 0.15 mm diameter core strands. 0.8 mm outside diameter dimension. 100 meters cable length suitable for various industrial and electrical applications. Explore the RS PRO category on EnvMart for other high-performance electrical and automation wires suitable for demanding industrial environments.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this hook up wire is 200°C.
The cross-sectional area of the wire is 0.12 mm².
This wire consists of 7 strands, each measuring 0.15 mm in diameter.
The maximum voltage rating for this model is 300V.
The wire is insulated with polytetrafluoroethylene (PTFE), which provides high temperature resistance and flame retardant properties.
This wire is resistant to oils, acids, UV sunlight, and other contaminants, making it suitable for harsh environments.
This hook up wire complies with BS 3G 210:1996 standards.
The outside diameter of this wire is 0.8 mm.
The length of this hook up wire is 100 meters.
The conductor material used in this wire is silver plated copper, which ensures excellent conductivity and corrosion resistance.
This wire is suitable for applications in industrial, laboratory, HVAC, automotive, and aerospace environments.
The minimum operating temperature of this wire is -75°C.
