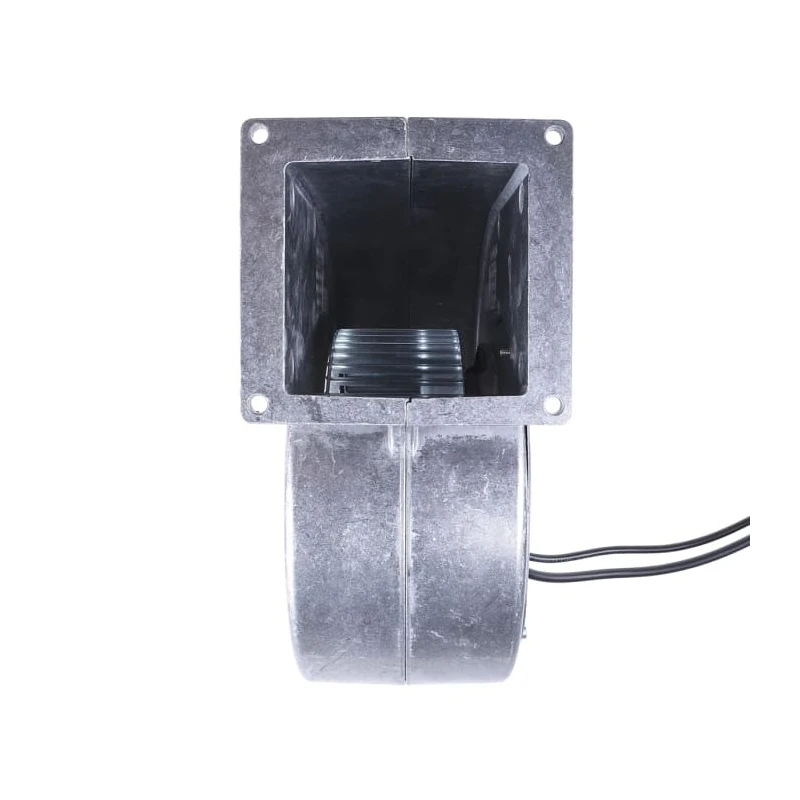

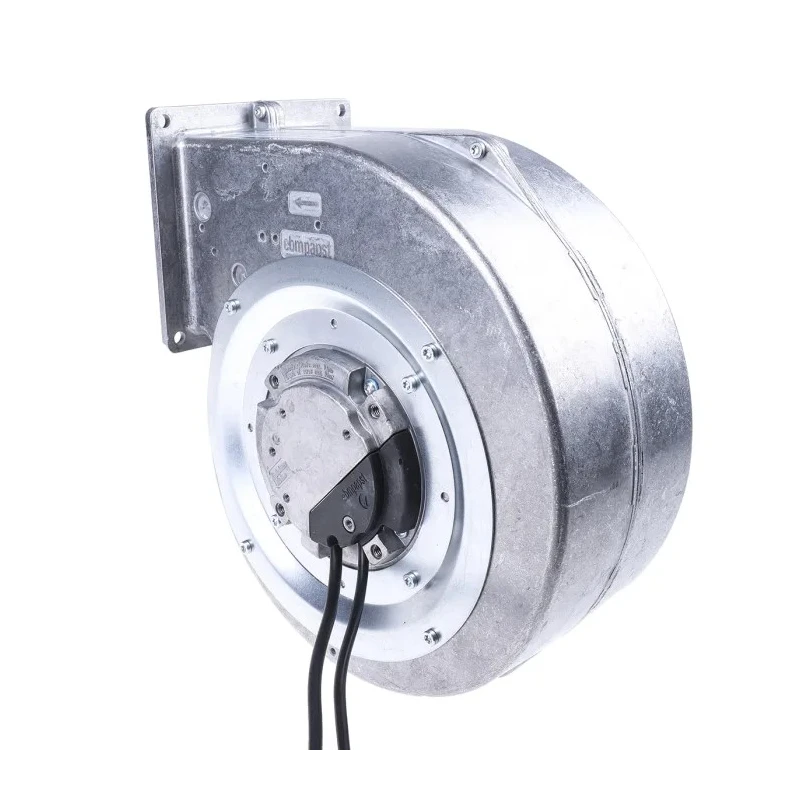

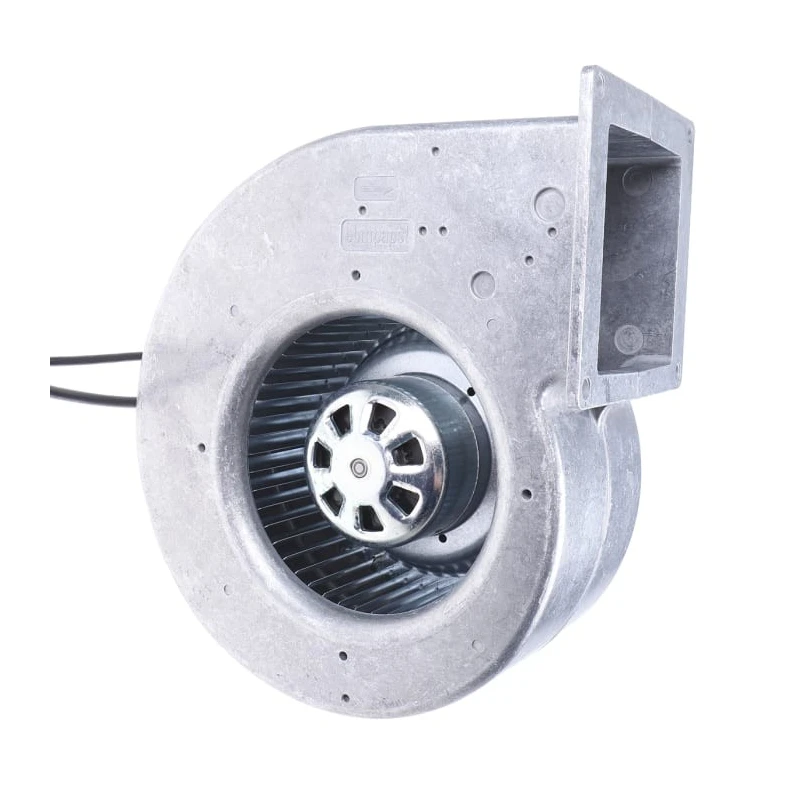

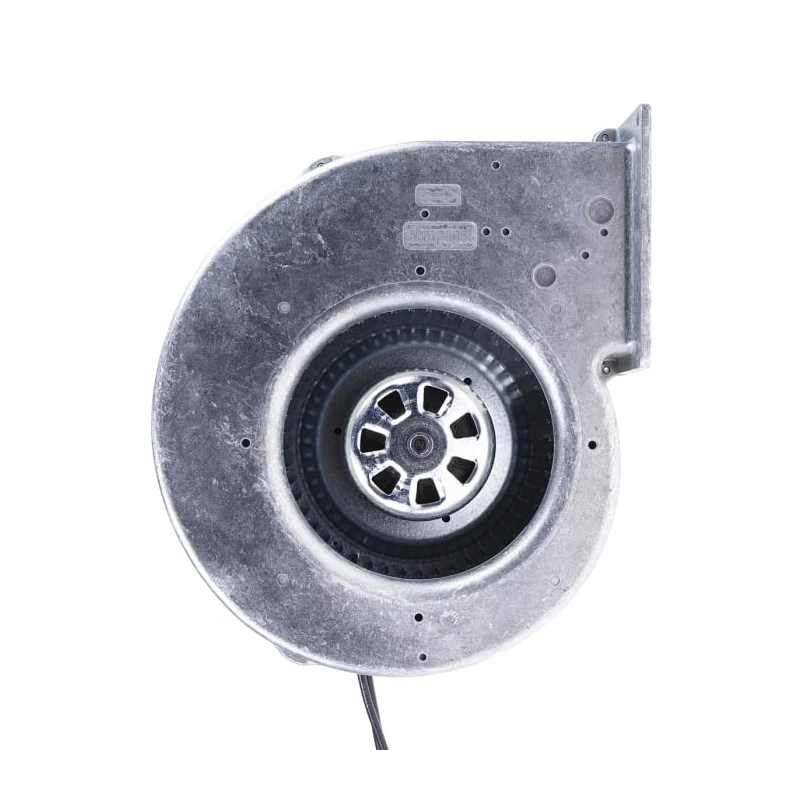

ebm-papst G3G Series Centrifugal Fan 230V AC 650 m³/h 2320 RPM Ball Bearing IP54 G3G146-FK07-02
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | ebm-papst |
| Blower Type | Centrifugal |
| Height | 248.5mm |
| Fan Speed | 2320rpm |
| Air Flow | 650m³/h |
| Model | G3G146-FK07-02 |
| Depth | 130mm |
| IP Rating | IP54 |
| Noise Level | 70dB |
| Width | 227mm |
| Static Pressure | 569Pa |
| Series | G3G |
| Maximum Current | 1.3A |
| Terminal type | PVC Cable |
| Supply Voltage | 230V ac |
| Bearing Type | Ball |
| Standards/Approvals | EN, ISO, RoHS |
| AC or DC Operation | AC |
| Commutation Type | Electronic |
| Mounting Hole Diameter | 6.3 mm |
| Better World Claim | Saves Energy |
| Sensor Output Type | PWM |
| ebm-papst D2E 146 Series Centrifugal Fan, 230 V ac, 520m³/h, AC OperationBrand | ebm-papst |
Key Features
- The fan includes a highly efficient externally rotor motor integrated with the impeller.
- Operating speed is 2320 RPM enabling strong airflow with low noise levels of 70 dB.
- Constructed with forwarding curved blades and open scroll housing for enhanced performance and efficiency.
- Ball bearing type supports mounting in any position ensuring flexible installation.
- The fan has a compact size of 248.5 mm height, 227 mm width, and 130 mm depth for versatile applications.

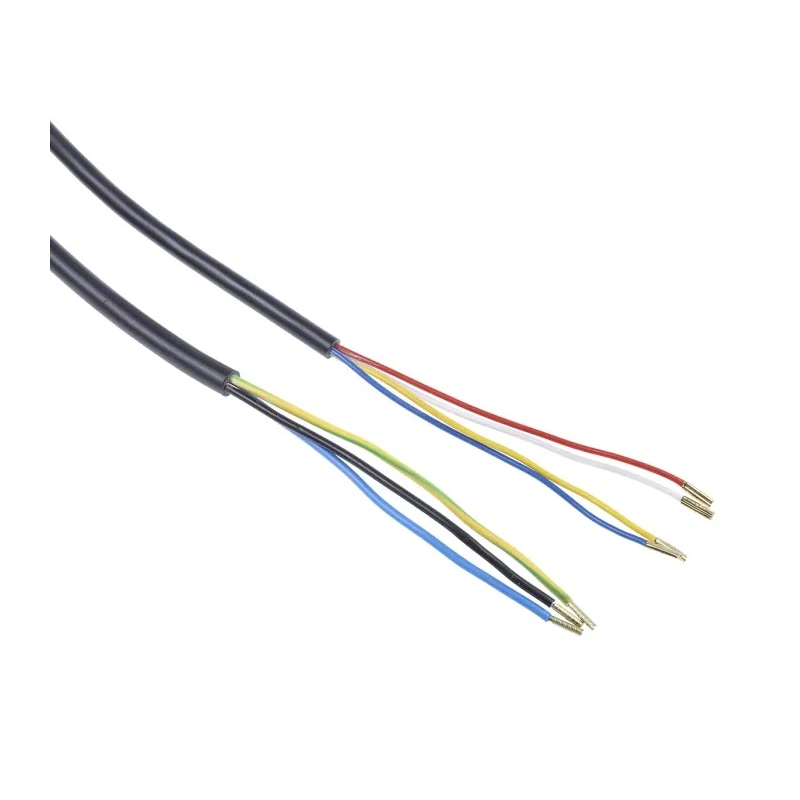

- Equipped with PWM sensor output type and PVC cable terminals for connectivity.
- Complies with EN, ISO, and RoHS standards ensuring quality and environmental safety.
- Designed for industrial and HVAC use, suitable for air conditioning, ventilation, refrigeration, and medical equipment.
Product Description
The ebm-papst G3G146-FK07-02 centrifugal fan is a high-performance AC operation fan designed for industrial and HVAC applications. Operating at 230V AC and delivering an airflow of 650 m³/h at 2320 RPM, it uses an external rotor motor integrated into the impeller to reduce installation size. The fan features forwarding curved blades and a scroll housing open on both sides, which enhances airflow efficiency and reduces noise to a manageable 70 dB.
This fan is equipped with maintenance-free ball bearings suitable for mounting in any position, and class B insulation to ensure operational reliability. Its robust, compact design measures 248.5 mm in height, 227 mm in width, and 130 mm in depth. Equipped with a PWM sensor output and PVC cable terminals, it offers adaptable integration into various systems.
Designed to meet EN, ISO, and RoHS certifications, it provides energy-saving benefits consistent with the Better World product line. Typical applications include central air conditioning units, building ventilation, automotive HVAC systems, railway applications, electronics cooling, medical devices, household ventilation, and refrigeration systems.
The fan motor is sealed for life requiring no maintenance. Ball bearing type that can be mounted in any position. Featuring highly efficient GreenTech EC motor technology. Intelligent electronics support numerous control functions and a wide voltage range.
Robust design optimized for long service life and reliable operation. Noise level maintained at 70 dB for quiet performance. IP54 rating offers protection against dust and splashing water. Manufactured in Germany with quality assurance.
This centrifugal fan is ideal for demanding environments requiring reliable airflow with low noise and energy consumption. It is a versatile solution well-suited for industrial manufacturing, HVAC systems, water treatment plants, commercial buildings, and medical equipment cooling needs.
Discover more Centrifugal Fans and industrial air moving solutions by exploring our dedicated product categories at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This centrifugal fan has an airflow capacity of 650 m³/h.
It operates at a supply voltage of 230V AC.
The maximum fan speed is 2320 RPM.
The noise level of the fan is maintained at 70 dB during operation.
This model has an IP54 rating, providing protection against dust and splashing water.
It uses maintenance-free ball bearings that allow for mounting in any position.
The fan measures 248.5 mm in height, 227 mm in width, and 130 mm in depth.
It complies with EN, ISO, and RoHS standards, ensuring quality and environmental safety.
It is equipped with a PWM sensor output type for adaptable integration into various systems.
This fan is designed for use in industrial and HVAC applications, including air conditioning, ventilation, and refrigeration.
The static pressure rating is 569 Pa.
The mounting hole diameter is 6.3 mm, facilitating easy installation.
